Timing

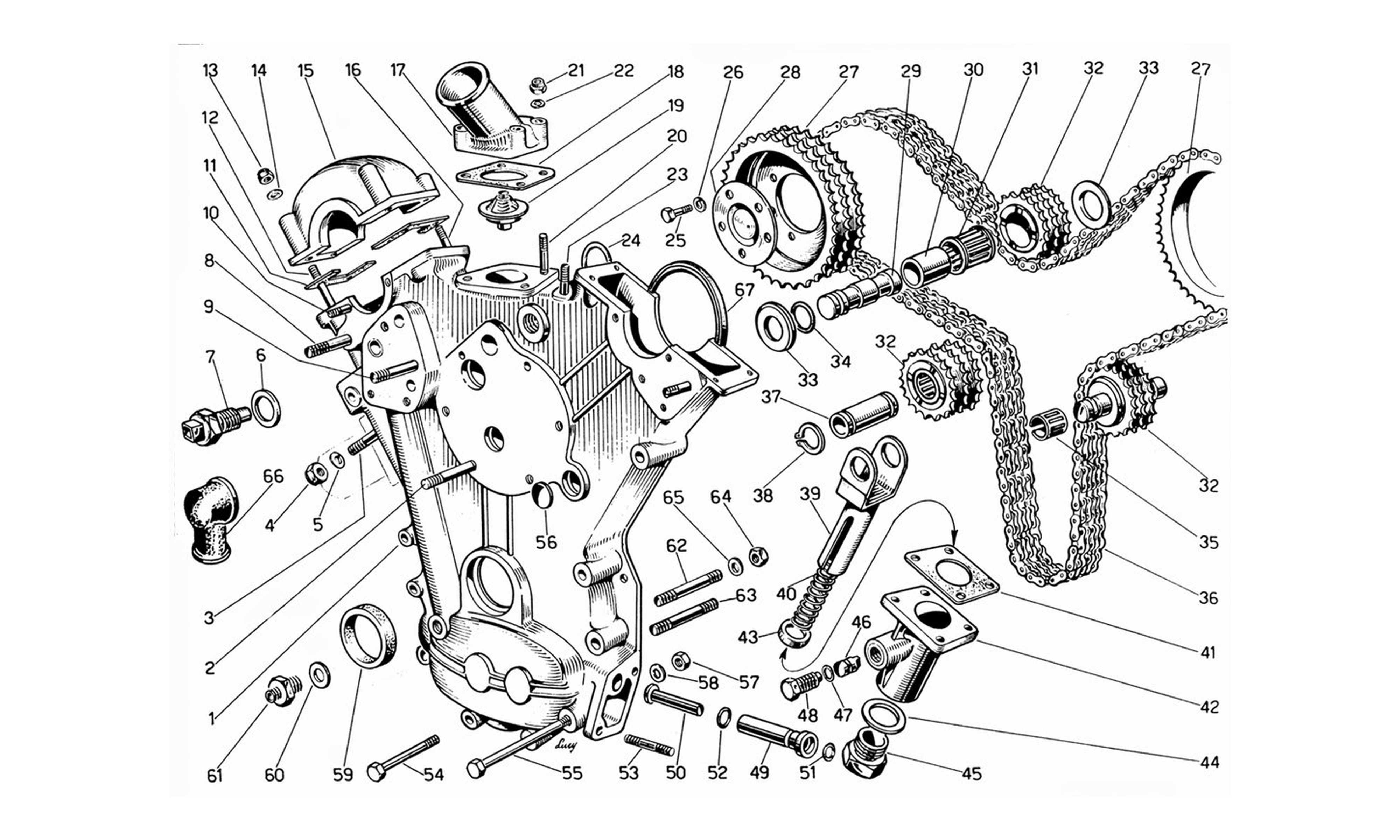

Schematic: Timing
Schematic: Timing
Loc
Part
Cond       Price
1
BOX DISTRIBUTION
22706 (1) Full qty
2
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (4) Full qty
CC10016n
2
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (4) Full qty
CC10018n
2
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (4) Full qty
CC10019n
2
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (4) Full qty
CC10020n
2
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (4) Full qty
CC10021n
2
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (4) Full qty
CC10025n
2
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (4) Full qty
CC10026n
2
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (4) Full qty
CC10027n
2
Stud Inlet Manifold
New       £ 9.99
CH11508n (4) Full qty
CH11508n
2
Water Manifold Stud
New       £ 8.42
CS11797n (4) Full qty
CS11797n
2
Carburettor Mounting Stud
FU14217n (4) Full qty
3
THREADED STUD
P5 (4) Full qty
4
NUT
106MA (4) Full qty
5
WASHER
6R5 (4) Full qty
6
Copper Washer Testarossa
New       Price on Enquiry
10257060 (1) Full qty
CC11524n
6
Temp Sender/Water Jacket/Sump Plug Washer
New       £ 0.21
10257060 (1) Full qty
SM99909n
7
Coolant/Oil Temp Sender
New       £ 21.60
100453 (1) Full qty
NS00102n
7
Coolant/Oil Temp Sender (Orignal)
Used       £ 25.85
100453 (1) Full qty
NS00102u
8
STUD
94901 (1) Full qty
9
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (4) Full qty
CC10016n
9
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (4) Full qty
CC10018n
9
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (4) Full qty
CC10019n
9
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (4) Full qty
CC10020n
9
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (4) Full qty
CC10021n
9
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (4) Full qty
CC10025n
9
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (4) Full qty
CC10026n
9
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (4) Full qty
CC10027n
9
Stud Inlet Manifold
New       £ 9.99
CH11508n (4) Full qty
CH11508n
9
Water Manifold Stud
New       £ 8.42
CS11797n (4) Full qty
CS11797n
9
Carburettor Mounting Stud
FU14217n (4) Full qty
10
STUD
PI (4) Full qty
11
GASKET OR SEAL
17972 (2) Full qty
12
STUD
PI (4) Full qty
13
NUT
106MA (8) Full qty
14
WASHER
6R5 (8) Full qty
15
Timing Cover Cap
New       Price on Enquiry
22709 (2) Full qty
TC00011n
16
STUD
PI (4) Full qty
17
Union Coolant System 330 GT
New       £ 341.00
22761 (1) Full qty
CS11785n
18
Thermostat Gasket 330/365
New       £ 3.29
22765 (1) Full qty
CS11867n
18
Thermostat gasket oe
New       Price on Enquiry
22765 (1) Full qty
CS11920n
19
THERMOSTAT MECANOSTAT
22777 (1) Full qty
20
STUD
PI (4) Full qty
21
Cam Cover Domed Nut 6x10 Short
New       Price on Enquiry
100044 (4) Full qty
CH11780n
22
WASHER
6R5 (4) Full qty
23
STUD
PI (2) Full qty
24
SEAL
133 (2) Full qty
25
Cam Sprocket Bolt
New       £ 17.22
92266 (10) Full qty
TC00069n
26
WASHER
8R4 (10) Full qty
27
Cam Sprocket 330
New       £ 344.85
22505 (2) Full qty
CH11569n
28
Cam Sprocket Plate Late
22575 (2) Full qty
29
Pivot TC 365 GT 2+2/330 GT/GTC
New       £ 54.97
22716 (2) Full qty
TC13413n
30
Water Sprocket Bush 330 GT 2+2 / 330 GTC, 365 GT 2+2
New       £ 133.60
22717 (2) Full qty
CS11971n
31
GABBIA RULLI
24X255 (3) Full qty
32
Water Pump Sprocket 330
New       £ 387.20
22710 (3) Full qty
CS11515n
32
Chain Tensioner Sprocket 330
New       £ 357.67
22710 (3) Full qty
TC11148n
33
Timing Sprocket Spacer 330 GT 2+2 / GTC, 365 GT 2+2 / 365 GTB4
New       £ 64.68
22718 (4) Full qty
CS11969n
33
Timing Sprocket Spacer 330 GT GTC 365 GTC GTB4
New       £ 64.68
22718 (4) Full qty
TC14101n
34
SEALING RING
112 (2) Full qty
35
RING
15X14 (4) Full qty
36
Timing Chain Triplex 330
New       £ 333.78
22507 (1) Full qty
TC13385n
37
Tensioner/Idler Sprocket Sleeve
New       £ 77.44
22712 (1) Full qty
TC13381n
38
SEEGER RING
19 (2) Full qty
39
Chain Tensioner Fork 330 GT 2+2
New       £ 514.25
22715 (1) Full qty
TC13407n
40
SPRING
22725 (1) Full qty
41
Chain/Timing Tensioner Gasket
New       £ 0.52
22713 (1) Full qty
TC14107n
42
Chain Tensioner Housing 330 GT 2+2
New       £ 598.95
22711 (1) Full qty
TC13405n
43
SPACER FOR BODY TIMING
22794 (1) Full qty
44
GASKET OR SEAL
22724 (1) Full qty
45
Plug Chain Tensioner Housing 330 GT
New       £ 10.97
22719 (1) Full qty
TC13411n
46
WEDGE LOCK TIMING
22714 (1) Full qty
47
SEAL
106 (1) Full qty
48
Lock Bolt 330 GT 2+2
New       £ 5.45
94838 (1) Full qty
TC13417n
49
Fuel Pump Drive Bush
34371 (1) Full qty
50
Fuel Pump Plunger 330
New       £ 136.68
34380 (1) Full qty
FU14193n
51
SEAL
107 (1) Full qty
52
Rear Main Cap O-Ring (10x1.5)
New       £ 1.16
2037 (1) Full qty
CC11491n
53
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (2) Full qty
CC10016n
53
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (2) Full qty
CC10018n
53
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (2) Full qty
CC10019n
53
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (2) Full qty
CC10020n
53
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (2) Full qty
CC10021n
53
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (2) Full qty
CC10025n
53
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (2) Full qty
CC10026n
53
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (2) Full qty
CC10027n
53
Stud Inlet Manifold
New       £ 9.99
CH11508n (2) Full qty
CH11508n
53
Water Manifold Stud
New       £ 8.42
CS11797n (2) Full qty
CS11797n
53
Carburettor Mounting Stud
FU14217n (2) Full qty
54
BOLT
UNI184 (5) Full qty
55
BOLT
UNI184 (1) Full qty
56
EXPANSION PLUG
TE18 (2) Full qty
57
M10x1.0 Nut
New       £ 6.05
95900412 (6) Full qty
CC11460n
57
Do Not Use - See CC11460n
(6) Full qty
58
Carb Mounting Washer M8
8R5 (6) Full qty
58
Carburettor Base Nut M8x1 [11m…
8R5 (6) Full qty
58
Carb Mounting Washer M8
8R5 (6) Full qty
59
SEALING RING
MIM4056 (1) Full qty
59
Oil Seal 40/56/12
New       £ 24.48
95850302 (1) Full qty
TC14056n
60
Seal Washer/Gasket
New       Price on Enquiry
10298460 (1) Full qty
EX10416n
61
Early Oil Pressure Take Off Un…
94844 (1) Full qty
62
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (2) Full qty
CC10016n
62
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (2) Full qty
CC10018n
62
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (2) Full qty
CC10019n
62
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (2) Full qty
CC10020n
62
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (2) Full qty
CC10021n
62
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (2) Full qty
CC10025n
62
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (2) Full qty
CC10026n
62
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (2) Full qty
CC10027n
62
Stud Inlet Manifold
New       £ 9.99
CH11508n (2) Full qty
CH11508n
62
Water Manifold Stud
New       £ 8.42
CS11797n (2) Full qty
CS11797n
62
Carburettor Mounting Stud
FU14217n (2) Full qty
63
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (2) Full qty
CC10016n
63
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (2) Full qty
CC10018n
63
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (2) Full qty
CC10019n
63
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (2) Full qty
CC10020n
63
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (2) Full qty
CC10021n
63
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (2) Full qty
CC10025n
63
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (2) Full qty
CC10026n
63
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (2) Full qty
CC10027n
63
Stud Inlet Manifold
New       £ 9.99
CH11508n (2) Full qty
CH11508n
63
Water Manifold Stud
New       £ 8.42
CS11797n (2) Full qty
CS11797n
63
Carburettor Mounting Stud
FU14217n (2) Full qty
64
M10x1.0 Nut
New       £ 6.05
95900412 (4) Full qty
CC11460n
64
Do Not Use - See CC11460n
(4) Full qty
65
Carb Mounting Washer M8
8R5 (4) Full qty
65
Carburettor Base Nut M8x1 [11m…
8R5 (4) Full qty
65
Carb Mounting Washer M8
8R5 (4) Full qty
66
Rubber Terminal Cover
New       Price on Enquiry
10405385 (4) Full qty
EL99220n
67
O-Ring Timing Cover to Head
New       Price on Enquiry
22108 (2) Full qty
CH20008n
67
Timing Case Square Section Seal - 250,275,330,365
New       £ 13.31
22108 (2) Full qty
TC13383n
67
Timing Case Square Section Seal - 250,275
New       £ 13.31
22108 (2) Full qty
TC14191n
