Cylinder Heads - Camshaft Valves

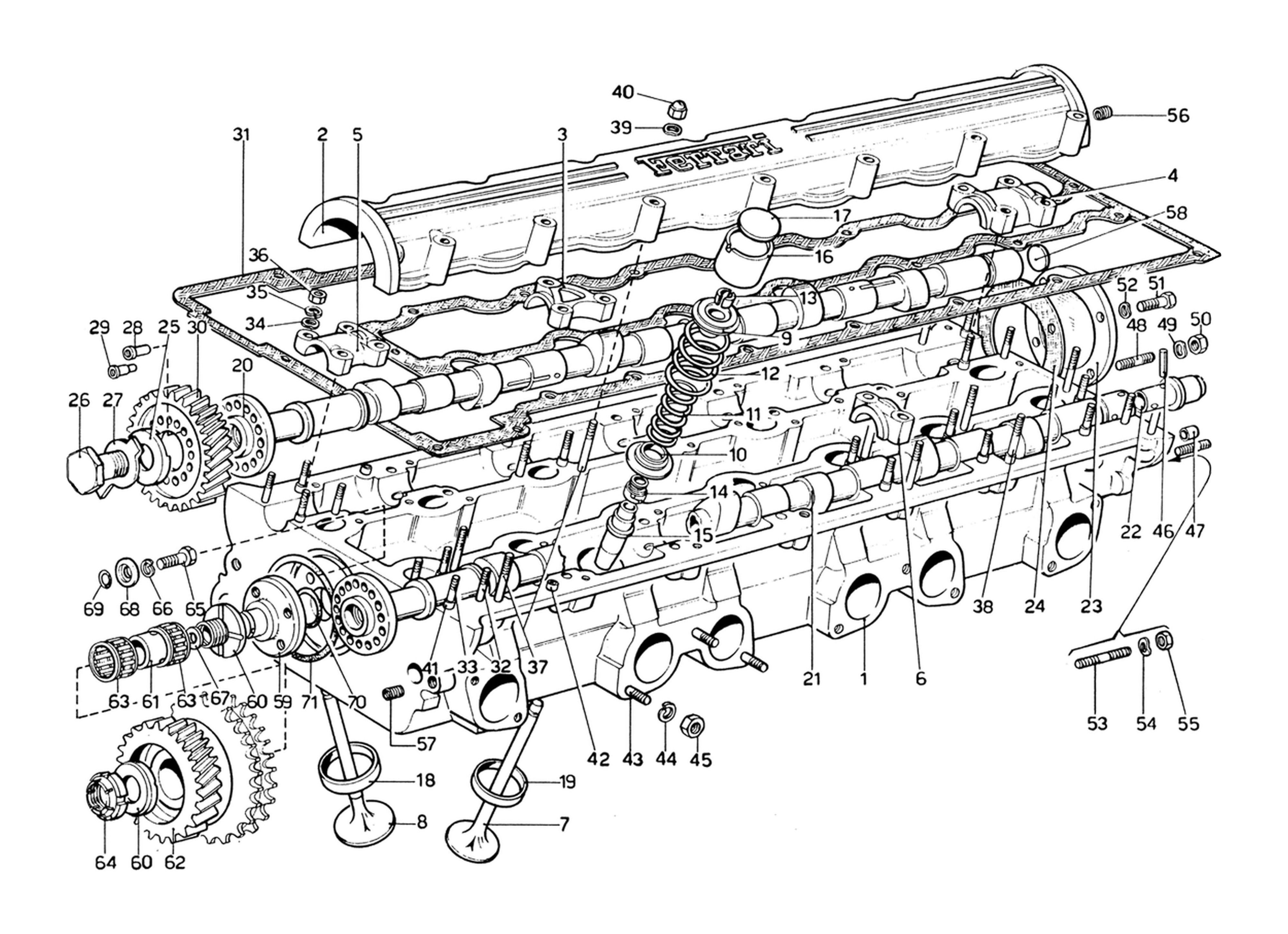

Schematic: Cylinder Heads - Camshaft Valves
Schematic: Cylinder Heads - Camshaft Valves
Loc
Part
Cond       Price
1
CYLINDER HEAD (VALID FROM N.14…
9162195 (2) Full qty
1
CYLINDER HEAD
9161438 (2) Full qty
1
Cylinder Head L/h 365 GTB/4 Daytona
New       £ 18696.70
9161438 (2) Full qty
CH20077n
2
LH Inlet Cam Cover 365 GTB/4 Daytona
New       Price on Enquiry
9161296 (1) Full qty
CH33763n
2
Head Gasket ASA 1000 GT
10868 (1) Full qty
2
RH Inlet Cam Cover 365 GTB/4 Daytona
New       Price on Enquiry
9161298 (1) Full qty
CH33765n
2
Cam Roller Pin Support Overzied (14.4)
New       Price on Enquiry
9160224 (1) Full qty
CH33766n
3
CAP INTERMEDIATE EXHAUST
9161304 (10) Full qty
4
CAP TREE DISTRIBUTION HEAD RIG…
9161301 (2) Full qty
4
CAP TREE DISTRIBUTION HEAD LEF…
9161303 (2) Full qty
5
CAP TREE DISTRIBUTION HEAD LEF…
9161300 (2) Full qty
5
CAP TREE DISTRIBUTION HEAD RIG…
9161302 (2) Full qty
6
BEARING CAP INTERMEDIATE
9161305 (10) Full qty
7
Exhaust Valve 365GTB4 OEM
New       Price on Enquiry
107082 (12) Full qty
CH11864n
7
Exhaust Valve Daytona (37.4mm)…
107082 (12) Full qty
8
Intake Valve 365GTB4 OEM
New       Price on Enquiry
100234 (12) Full qty
CH11862n
8
Daytona Inlet Valve (42mm)
New       £ 54.45
100234 (12) Full qty
CH11941n
9
Seat for springs
100241 (24) Full qty
10
Lower cup for valve spring
100242 (24) Full qty
11
Vave Spring Inner 308/330/365
New       £ 8.75
100239 (24) Full qty
CH00105n
12
Valve Spring Outer 308/330/365
New       £ 10.73
100240 (24) Full qty
CH00103n
13
Valve Collets
New       £ 6.66
100244 (24) Full qty
CH00120n
14
FOR OLIO
9160898 (24) Full qty
15
VALVE GUIDE
9161468 (24) Full qty
16
Punteria comando valvola
100232 (24) Full qty
17
VALVES FOR REGISTRATION PLATE …
9161345 (24) Full qty
17
IDEM SPESSORE MM. 3,90
4152457 (24) Full qty
17
IDEM SPESSORE MM. 3,95
4152458 (24) Full qty
17
IDEM SPESSORE MM. 4,05
4152459 (24) Full qty
17
IDEM SPESSORE MM. 4,15
4152461 (24) Full qty
17
IDEM SPESSORE MM. 4,20
4152462 (24) Full qty
17
IDEM SPESSORE MM. 4,30
4152464 (24) Full qty
17
IDEM SPESSORE MM. 4,50
4152468 (24) Full qty
17
IDEM SPESSORE MM. 3,60
4152451 (24) Full qty
17
IDEM SPESSORE MM. 3,85
4152456 (24) Full qty
17
IDEM SPESSORE MM. 4,45
4152467 (24) Full qty
17
IDEM SPESSORE MM. 3,75
4152454 (24) Full qty
17
IDEM SPESSORE MM. 4,10
4152460 (24) Full qty
17
IDEM SPESSORE MM. 3,65
4152452 (24) Full qty
17
IDEM SPESSORE MM. 3,70
4152453 (24) Full qty
17
IDEM SPESSORE MM. 3,55
4152450 (24) Full qty
17
IDEM SPESSORE MM. 3,50
4152449 (24) Full qty
17
IDEM SPESSORE MM. 4,40
4152466 (24) Full qty
17
IDEM SPESSORE MM. 4,25
4152463 (24) Full qty
17
IDEM SPESSORE MM. 4,35
4152465 (24) Full qty
17
IDEM SPESSORE MM. 3,80
4152455 (24) Full qty
18
YIELD VALVOLA ASPIRAZIONE (VAL…
100237 (12) Full qty
19
EXHAUST VALVE SEAT
9160465 (12) Full qty
19
Sede valvola di scarico
100238 (12) Full qty
20
Cam Shaft 365 GTB/4 Daytona Intake Left
New       £ 1168.75
9161416 (1) Full qty
CH12083n
20
Cam Shaft 365 GTB/4 Daytona Intake Right
New       £ 1168.75
9161415 (1) Full qty
CH12085n
21
Cam Shaft 365 GTB/4 Daytona Exhaust Right
New       £ 1168.75
9161418 (1) Full qty
CH12087n
21
Cam Shaft 365 GTB/4 Daytona Exhaust Left
New       £ 1168.75
9161419 (1) Full qty
CH12089n
22
ENGAGEMENT SULL''ALBERO DISTRI…
9161430 (1) Full qty
22
ENGAGEMENT SULL''ALBERO DISTRI…
9161429 (1) Full qty
23
COVER
9161306 (2) Full qty
24
GASKET
9161310 (2) Full qty
24
End Plate Gasket
147619 (2) Full qty
25
WASHER
9160236 (3) Full qty
26
BOLT
9160779 (3) Full qty
27
Cam Shaft Lock Tab Washer 275 GTB4/365 Daytona
New       £ 7.19
95240 (3) Full qty
CH12067n
27
Lock Tab
New       Price on Enquiry
95240 (3) Full qty
CH20056n
28
CENTERING DOWEL
22448 (4) Full qty
29
Cam Sprocket Location Peg
New       £ 36.96
100203 (4) Full qty
CH20068n
30
GEAR
220411 (4) Full qty
31
GASKET OR SEAL
9161324 (1) Full qty
31
GASKET OR SEAL
9161325 (1) Full qty
32
THREADED STUD
P1 (74) Full qty
32
Stud (M6x24) Angle Drive/Water Pump
New       £ 3.58
CH11551n (74) Full qty
CH11551n
33
THREADED STUD
P1 (8) Full qty
33
Stud (M6x24) Angle Drive/Water Pump
New       £ 3.58
CH11551n (8) Full qty
CH11551n
34
WASHER
6R2 (82) Full qty
35
WASHER
6R4 (82) Full qty
36
NUT
15596221 (82) Full qty
37
Short stud
104185 (52) Full qty
38
STUD
94207 (4) Full qty
39
WASHER
RC6 (56) Full qty
40
Nut
102741 (56) Full qty
41
CENTERING DOWEL
92793 (56) Full qty
42
CENTERING DOWEL
92793 (8) Full qty
43
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (20) Full qty
CC10016n
43
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (20) Full qty
CC10018n
43
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (20) Full qty
CC10019n
43
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (20) Full qty
CC10020n
43
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (20) Full qty
CC10021n
43
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (20) Full qty
CC10025n
43
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (20) Full qty
CC10026n
43
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (20) Full qty
CC10027n
43
Stud Inlet Manifold
New       £ 9.99
CH11508n (20) Full qty
CH11508n
43
Water Manifold Stud
New       £ 8.42
CS11797n (20) Full qty
CS11797n
43
Carburettor Mounting Stud
FU14217n (20) Full qty
44
WASHER
8R4 (20) Full qty
45
Exhaust Manifold Nut Brass M8
94803 (20) Full qty
45
M8x1 Brass Nut
New       £ 4.90
94803 (20) Full qty
SM00191n
46
Angle Drive, Drive Pin 250 330
New       Price on Enquiry
100279 (4) Full qty
CH20066n
47
Grano
100272 (4) Full qty
48
STUD
REO6 (4) Full qty
48
THREADED STUD
P1 (4) Full qty
48
Stud (M6x24) Angle Drive/Water Pump
New       £ 3.58
CH11551n (4) Full qty
CH11551n
50
Nut
- (4) Full qty
51
Nut
- (4) Full qty
51
Nut
- (4) Full qty
52
STUD
REO6 (4) Full qty
53
THREADED STUD
95920107 (7) Full qty
54
Washer
12601271 (7) Full qty
55
Distributor Nut
New       £ 15.68
100273 (7) Full qty
EL99325n
56
BUSH ON THE HEAD COVERS
6X100X9 (9) Full qty
56
BUSH ON THE HEAD COVERS
6X100X9 (9) Full qty
57
BUSSOLA (VALID UP TO NO. 13801…
10X125X10 (1) Full qty
57
BUSSOLA (VALID UP TO NO. 13801…
8X100X12 (3) Full qty
57
BUSH ON THE HEAD RIGHT
1002500 (1) Full qty
57
CENTERING DOWEL
800002 (3) Full qty
58
Cam Shaft End Core Plug 16mm 365 Daytona
New       £ 2.61
93965 (2) Full qty
CH12073n
59
PIVOT
220205 (2) Full qty
59
PIVOT SUPPORT
220570 (2) Full qty
60
WASHER
220568 (2) Full qty
60
WASHER
22955 (4) Full qty
61
Camshaft Driven Gear Bushing
22987 (2) Full qty
61
Camshaft Driven Gear Bushing
22987 (2) Full qty
62
DRIVE PINION GEAR SULL''ALBERO…
220410 (2) Full qty
62
DRIVE PINION GEAR SULL''ALBERO…
220569 (2) Full qty
63
Timing Case Bearing
New       Price on Enquiry
95893007 (4) Full qty
TC14092n
63
Timing Case Bearing
New       Price on Enquiry
95893007 (4) Full qty
TC14094n
64
Ring Nut
New       Price on Enquiry
101241 (2) Full qty
TC14184n
65
Cam/Clutch Bolt M8x28
95880508 (8) Full qty
66
Washer
10516670 (8) Full qty
67
EXPANSION PLUG
95073 (2) Full qty
68
WASHER
95104 (8) Full qty
69
SEALING RING
OR2031 (8) Full qty
69
O-Ring Cam Cover Bolt (275/4)
New       £ 1.19
95860041 (8) Full qty
CH11915n
69
O Ring 107/2031
New       Price on Enquiry
95860041 (8) Full qty
TC14040n
70
OIL SEAL
OR2100 (2) Full qty
70
O Ring Seal 2100
New       Price on Enquiry
95860046 (2) Full qty
CH11666n
71
OIL SEAL
OR6275 (2) Full qty
71
O-Ring Seal 6275
New       Price on Enquiry
95860202 (2) Full qty
GE00656n
481
THREADED STUD
P1 (4) Full qty
481
Stud (M6x24) Angle Drive/Water Pump
New       £ 3.58
CH11551n (4) Full qty
CH11551n
