Pedal Board - Clutch Control

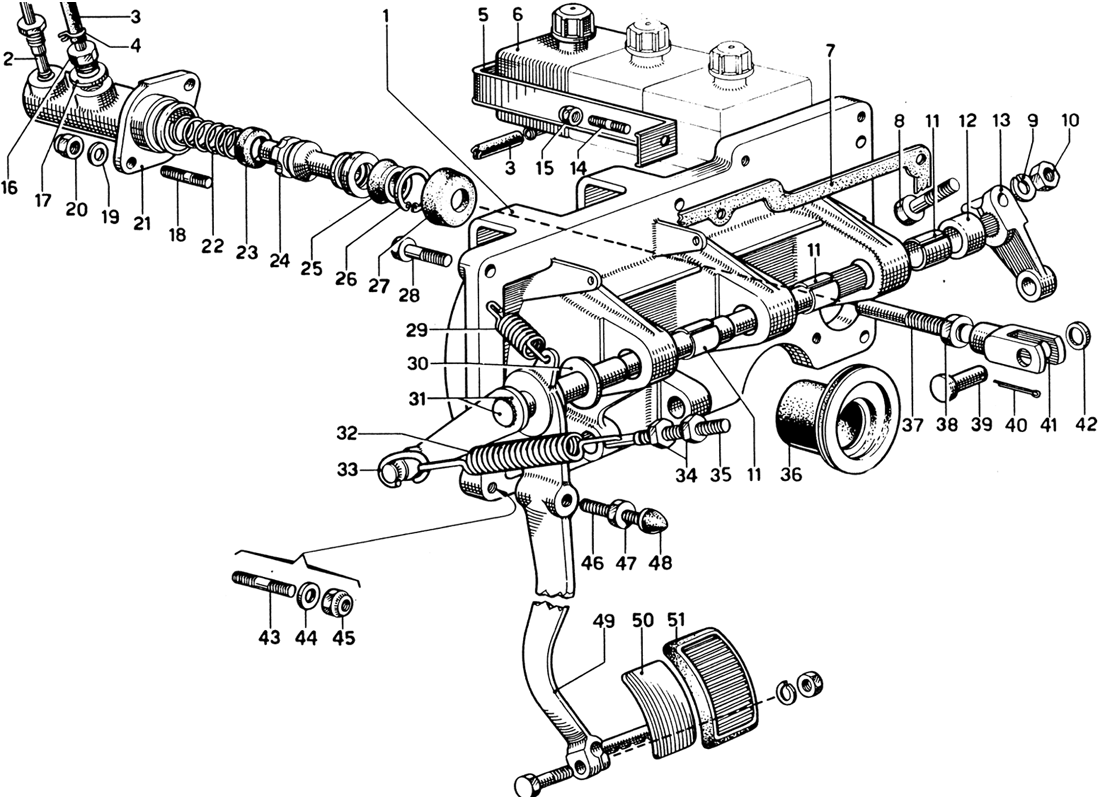

Schematic: Pedal Board - Clutch Control
Loc
Part
Cond       Price
1
SUPPORT
660466 (1) Full qty
1
PEDAL ASSEMBLY
1246 (1) Full qty
2
FLEXIBLE HOSE CONNECTION TO PU…
660419 (1) Full qty
3
Fluid Hose Reservoir To Master…
660197 (1) Full qty
4
SPRING
94951 (6) Full qty
5
HOSE FOR OIL TANKS
660337 (1) Full qty
6
BRAKE FLUID RESERVOIR
660442 (1) Full qty
7
New       £ 14.25
660467 (1) Full qty
PB14063n
8
BOLT
82 (1) Full qty
9
WASHER
8R4 (1) Full qty
10
NUT
ID8UNI208 (1) Full qty
11
SELF LUBRICATING BUSHES
1825DU (3) Full qty
12
New       Price on Enquiry
660326 (1) Full qty
CL11875n
13
LEVER
660324 (1) Full qty
14
STUD
PI (2) Full qty
15
Cam/Chain Cover Nuts
101239 (2) Full qty
15
Cam/Chain Cover Nuts
101239 (2) Full qty
15
New       £ 7.21
101239 (2) Full qty
CH11808n
16
UNION
6604431 (1) Full qty
17
WASHER
6604432 (1) Full qty
18
New       £ 15.97
CC10016n (2) Full qty
CC10016n
18
New       £ 15.68
CC10018n (2) Full qty
CC10018n
18
New       £ 15.68
P2 (2) Full qty
CC10019n
18
New       £ 16.89
CC10020n (2) Full qty
CC10020n
18
New       £ 7.87
P2 (2) Full qty
CC10021n
18
New       £ 16.89
P2 (2) Full qty
CC10025n
18
New       £ 15.35
P2 (2) Full qty
CC10026n
18
New       £ 15.31
P2 (2) Full qty
CC10027n
18
New       £ 9.99
CH11508n (2) Full qty
CH11508n
18
New       £ 8.42
CS11797n (2) Full qty
CS11797n
18
Carburettor Mounting Stud
FU14217n (2) Full qty
19
WASHER
8R2 (2) Full qty
20
NUT
108MB (2) Full qty
21
Clutch Master Cylinder 275,330…
660443 (1) Full qty
21
Clutch Master Cylinder 275,330…
660443 (1) Full qty
22
SPRING
6604433 (1) Full qty
23
GASKET
6604434 (1) Full qty
24
STANTUFFO POMPA
6604435 (1) Full qty
25
GASKET
4093920 (1) Full qty
26
SEALING RING
664437 (1) Full qty
27
DUST CAP
6604438 (1) Full qty
28
BOLT
8x35-UNI 186 (5) Full qty
29
SPRING
660343 (1) Full qty
30
WASHER
94670 (1) Full qty
31
ASSEMBLY LEVER AND PIN
660321 (1) Full qty
32
Clutch Helper Spring
660346 (1) Full qty
33
HOOK SPRING ATTACK
660304 (1) Full qty
34
LOCKNUT
ID8UNI210 (2) Full qty
35
New       £ 17.05
660306 (1) Full qty
BS00535n
35
Clutch Pedal Adj.Rod 275/365
660306 (1) Full qty
36
GASKET OR SEAL
660471 (1) Full qty
37
Used       £ 104.50
660470 (1) Full qty
PB14089u
38
NUT
1 D 10-UNI 209 (1) Full qty
39
PIVOT
660165 (1) Full qty
40
SPLIT PIN
C1 (1) Full qty
41
Clevis Clutch Pedal 330 GTC
660325 (1) Full qty
42
WASHER
10R2 (1) Full qty
43
THREADED STUD
P6 (1) Full qty
43
New       £ 15.31
CC10024n (1) Full qty
CC10024n
44
WASHER
8R2 (1) Full qty
45
NUT
108MB (1) Full qty
46
REGISTER FOR FOOT
660344 (1) Full qty
47
NUT
ID8UNI209 (1) Full qty
48
RUBBER TO REGISTER
660351 (1) Full qty
49
CLUTCH LEVER ASSEMBLY
660465 (1) Full qty
50
BRAKE PEDAL ASSEMBLY
660517 (1) Full qty
51
COVER PEDAL
660469 (1) Full qty
