Crankshaft - Connecting Rods And Pistons

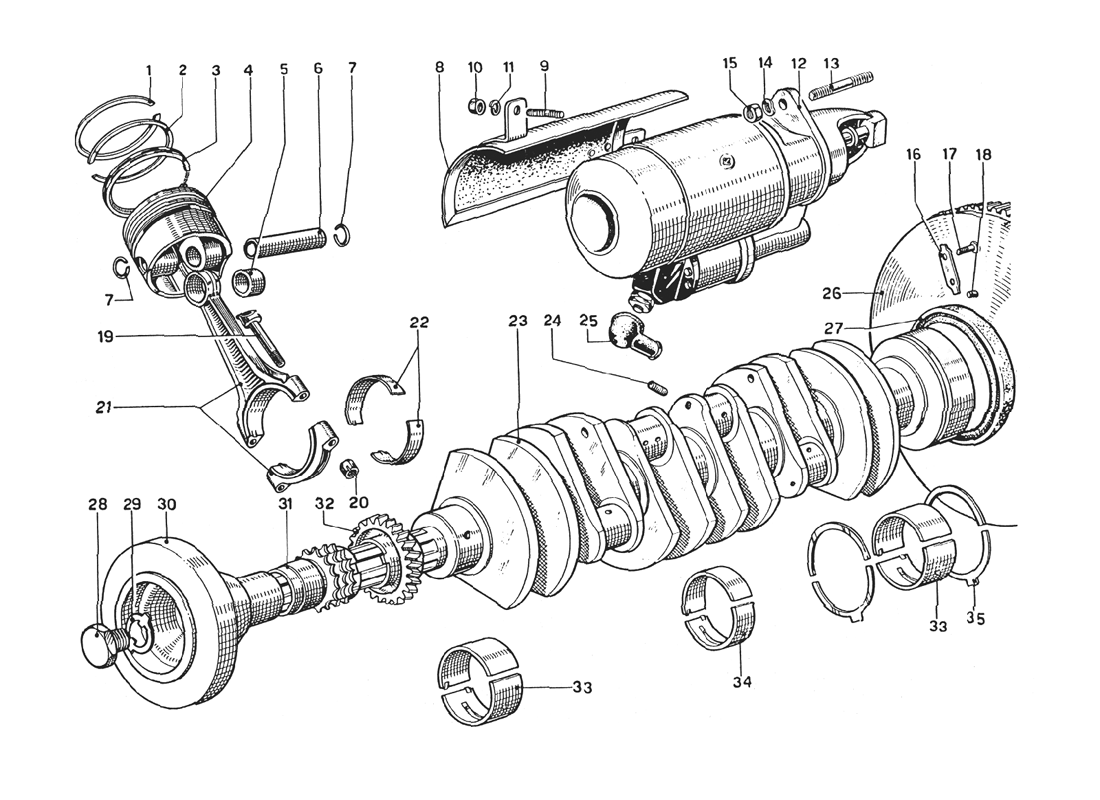

Schematic: Crankshaft - Connecting Rods And Pistons
Schematic: Crankshaft - Connecting Rods And Pistons
Loc
Part
Cond       Price
1
PISTON RING SET
MC1823/1 (12) Full qty
1
PISTON RING SET
MC1823/2 (12) Full qty
1
SEALING RING
AC/T Cod.32763 (12) Full qty
1
STANDARD DIAMETER
77X1,5X3,6 (12) Full qty
1
1ST INCREASE
77,15x1,5x3,6 (12) Full qty
1
2ND INCREASE
77,30x1,5x3,6 (12) Full qty
2
SEALING RING
35158 (12) Full qty
2
STANDARD DIAMETER
77X1,5X3,6 (12) Full qty
2
1ST INCREASE
77,15x1,5x3,6 (12) Full qty
2
2ND INCREASE
77,30x1,5x3,6 (12) Full qty
3
RING
30309 (12) Full qty
3
STANDARD DIAMETER
77x5x3,3 (12) Full qty
3
1ST INCREASE
77,15X5x3,3 (12) Full qty
3
2ND INCREASE
77,30x5x3,3 (12) Full qty
4
PISTON COMPRESSION RATIO 9.3: …
14844 (12) Full qty
4
STANDARD DIAMETER
20080-2 (12) Full qty
4
Nut
- (12) Full qty
4
Nut
- (12) Full qty
5
BUSH
14671 (12) Full qty
6
PIN
14753 (12) Full qty
7
RING
14672 (24) Full qty
8
DEFLECTOR FOR MOTOR
13233 (1) Full qty
9
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (1) Full qty
CC10016n
9
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (1) Full qty
CC10018n
9
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (1) Full qty
CC10019n
9
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (1) Full qty
CC10020n
9
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (1) Full qty
CC10021n
9
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (1) Full qty
CC10025n
9
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (1) Full qty
CC10026n
9
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (1) Full qty
CC10027n
9
Stud Inlet Manifold
New       £ 9.99
CH11508n (1) Full qty
CH11508n
9
Water Manifold Stud
New       £ 8.42
CS11797n (1) Full qty
CS11797n
9
Carburettor Mounting Stud
FU14217n (1) Full qty
10
Exhaust Manifold Nut Brass M8
94803 (1) Full qty
10
M8x1 Brass Nut
New       £ 4.90
94803 (1) Full qty
SM00191n
11
WASHER
8R4 (1) Full qty
12
STARTER MOTOR THROW IN COG
100454RC (1) Full qty
12
STARTER MOTOR SOLENOID
100454RS (1) Full qty
12
STARTER MOTOR
100454R (1) Full qty
12
STARTER MOTOR
100454R (1) Full qty
12
STARTER MOTOR
100454R (1) Full qty
13
Starter Motor Stud
New       £ 5.75
93015 (2) Full qty
CC11452n
14
WASHER
12R5 (2) Full qty
15
NUT
93859 (2) Full qty
16
Flywheel Lock Tab
100187 (4) Full qty
16
Lock Tab
New       Price on Enquiry
100187 (4) Full qty
TC14102n
17
Flywheel Bolt 13mm Head
94851 (8) Full qty
18
CENTERING DOWEL
94129 (1) Full qty
19
Big End Bolt 275
New       £ 48.10
14804 (24) Full qty
RP11430n
20
Big End Nut 250
New       £ 9.08
104011 (24) Full qty
RP11424n
20
Do Not Use - See RP11450n
104011 (24) Full qty
20
Con Rod Nut
New       £ 9.13
104011 (24) Full qty
RP11450n
21
ROD ASSEMBLY, WITH BOLTS, NUTS…
14938 (12) Full qty
22
Big End Bearing (Con Rod Shell) Set 250/275 Std. (24)
New       £ 1014.75
14111 (3) Full qty
RP11434n
22
Con Rod Shell (1) 250/275 Std.
New       Price on Enquiry
14111 (3) Full qty
RP11472n
23
2ND UNDER SIZE
12543 (1) Full qty
23
2ND UNDER SIZE
12543 (1) Full qty
23
2ND UNDER SIZE
12543 (1) Full qty
23
2ND UNDER SIZE
12543 (1) Full qty
23
2ND UNDER SIZE
12543 (1) Full qty
23
2ND UNDER SIZE
12543 (1) Full qty
23
2ND UNDER SIZE
12543 (1) Full qty
24
PLUG
TF4 (10) Full qty
25
Rubber cover/cap
New       £ 28.00
111337 (1) Full qty
EL99873n
26
Flywheel 275 GTB4
12569 (1) Full qty
27
Crank Scroll Seal 250/275
New       Price on Enquiry
138391 (1) Full qty
CC11136n
27
Crank Scroll Seal 250/275
New       Price on Enquiry
138391 (1) Full qty
CC11136n
27
Crank Scroll Seal 250/275
Used       £ 151.25
138391 (1) Full qty
CC11136u
27
Crank Scroll Seal 250/275
Used       £ 151.25
138391 (1) Full qty
CC11136u
27
Crank Seal Rear 250/275 100/120/13 12Cyl.
New       £ 29.78
138391 (1) Full qty
CC11446n
27
Crank Seal Rear 250/275 100/120/13 12Cyl.
New       £ 29.78
138391 (1) Full qty
CC11446n
27
Rear Crank Seal 100/120/13 Half Metal 12Cyl
New       £ 5.63
138391 (1) Full qty
CC11508n
27
Rear Crank Seal 100/120/13 Half Metal 12Cyl
New       £ 5.63
138391 (1) Full qty
CC11508n
28
Crank Bolt 250/275
New       £ 67.76
12157 (1) Full qty
CC00226n
29
Crankshaft Damper Locktab
New       £ 8.71
92987 (1) Full qty
CC11497n
29
Crankshaft Locktab
New       Price on Enquiry
92987 (1) Full qty
CC11638n
30
Front Crank Pulley 275
New       Price on Enquiry
12496 (1) Full qty
CC11144n
30
Front Crank Pulley 275
Used       £ 2359.50
12496 (1) Full qty
CC11144u
30
Crankshaft Damper 250 GT/GTE 275 GTB2/GTB4/GTS
New       Price on Enquiry
12496 (1) Full qty
CC11643n
31
GEAR CHAIN
12527 (1) Full qty
32
GEAR PUMP CONTROL
12526 (1) Full qty
33
BEARING FRONT AND REAR
10527 (4) Full qty
33
BEARING FRONT AND REAR
10527 (4) Full qty
33
BEARING FRONT AND REAR
10527 (4) Full qty
33
BEARING FRONT AND REAR
10527 (4) Full qty
34
MAIN BEARING
10526 (10) Full qty
34
MAIN BEARING ½ SHELL
10526I (10) Full qty
34
MAIN BEARING ½ SHELL
10526S (10) Full qty
35
1 '' INCREASE (MM. 0.076) (0.0…
10345 (2) Full qty
35
1 '' INCREASE (MM. 0.076) (0.0…
10345 (2) Full qty
35
1 '' INCREASE (MM. 0.076) (0.0…
10345 (2) Full qty
35
Crank Thrust Washers STD - 2 Part Set
New       £ 39.33
100146 (2) Full qty
CC11448n
35
Do Not Use - See CC11448n
(2) Full qty
