Timing (Controls)

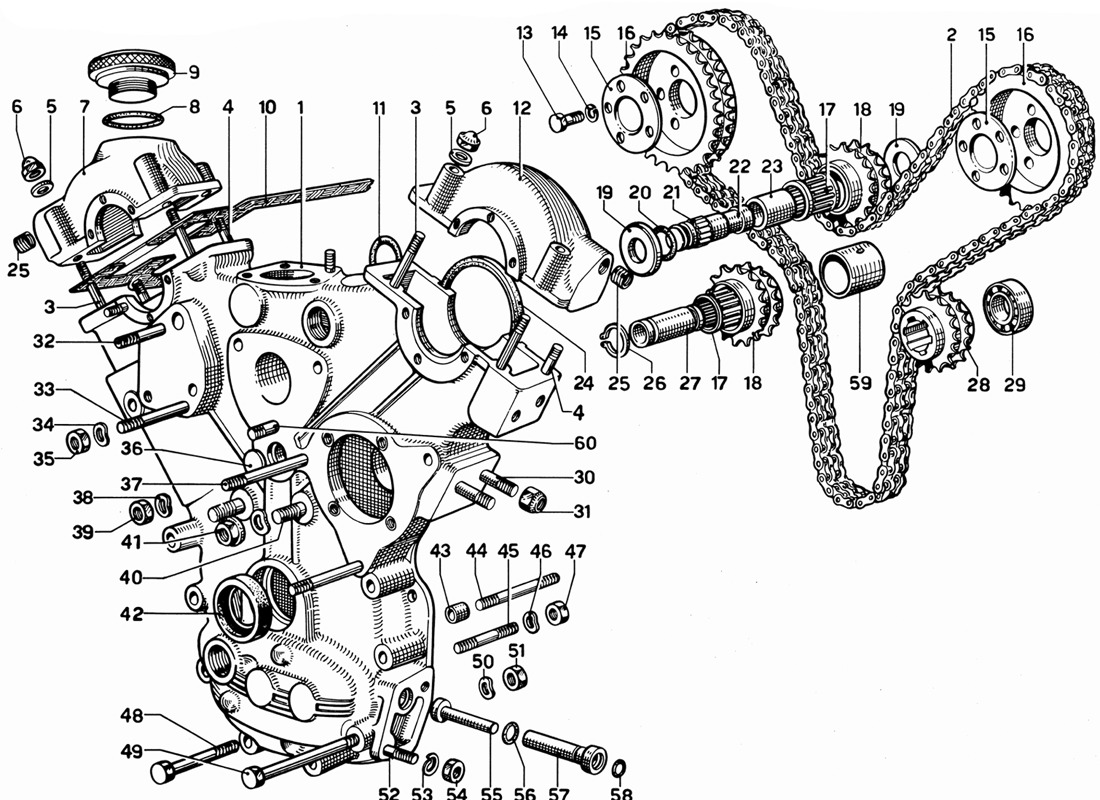

Schematic: Timing (Controls)
Schematic: Timing (Controls)
Loc
Part
Cond       Price
1
Front Cover 365 GT 2+2
New       Price on Enquiry
9220199 (1) Full qty
TC11340n
1
Front Cover 365 GT 2+2
Used       £ 1815.00
9220199 (1) Full qty
TC11340u
2
Timing Chain Duplex (365 GTB4)
New       £ 116.00
9220070 (1) Full qty
TC11143n
3
THREADED STUD
95920110 (4) Full qty
4
THREADED STUD
95920110 (4) Full qty
5
STUD
REO6 (8) Full qty
6
Cam/Chain Cover Nuts
101239 (8) Full qty
6
Cam/Chain Cover Nuts
101239 (8) Full qty
6
Cam Cover Domed Nut 6x12 Tall
New       £ 7.21
101239 (8) Full qty
CH11808n
7
CAP DISTRIBUTION D
220026 (1) Full qty
8
OIL SEAL
144 (1) Full qty
9
INTRODUCTION OIL CAP
220028 (1) Full qty
10
Cam Cover Gasket 330/365
New       £ 30.65
9160479 (2) Full qty
CH00340n
11
SEAL
4100 (2) Full qty
12
CAP LEFT DISTRIBUTION
22993 (1) Full qty
13
Cam Sprocket Bolt
New       £ 17.22
92266 (5) Full qty
TC00069n
14
WASHER
REG8 (5) Full qty
15
Cam Sprocket Plate Late
22575 (1) Full qty
16
2 Row Sprocket on Camshaft 365…
220069 (2) Full qty
17
Nut
- (2) Full qty
18
IDLER GEAR
220080 (2) Full qty
19
Timing Sprocket Spacer 330 GT 2+2 / GTC, 365 GT 2+2 / 365 GTB4
New       £ 64.68
22718 (2) Full qty
CS11969n
19
Timing Sprocket Spacer 330 GT GTC 365 GTC GTB4
New       £ 64.68
22718 (2) Full qty
TC14101n
20
SEALING RING
112 (1) Full qty
21
RING
BN15X14 (1) Full qty
22
Pivot TC 365 GT 2+2/330 GT/GTC
New       £ 54.97
22716 (1) Full qty
TC13413n
23
Water Sprocket Bush 330 GT 2+2 / 330 GTC, 365 GT 2+2
New       £ 133.60
22717 (1) Full qty
CS11971n
24
O-Ring Timing Cover to Head
New       Price on Enquiry
22108 (2) Full qty
CH20008n
24
Timing Case Square Section Seal - 250,275,330,365
New       £ 13.31
22108 (2) Full qty
TC13383n
24
Timing Case Square Section Seal - 250,275
New       £ 13.31
22108 (2) Full qty
TC14191n
25
Nut
- (2) Full qty
26
SEEGER RING
AAE19 (2) Full qty
27
Tensioner/Idler Sprocket Sleeve
New       £ 77.44
22712 (1) Full qty
TC13381n
28
Water Pump Sprocket 365 GT 2+2
New       £ 417.45
220068 (1) Full qty
CS11767n
29
Bearing
New       Price on Enquiry
95890204 (1) Full qty
CS11532n
29
Bearing
New       Price on Enquiry
95890204 (1) Full qty
CS11532n
29
Front Cover/Water Pump Bearing
New       £ 48.35
95890204 (1) Full qty
TC00018n
29
Front Cover/Water Pump Bearing
New       £ 48.35
95890204 (1) Full qty
TC00018n
30
THREADED STUD
95170 (2) Full qty
31
NUT
212MB (2) Full qty
32
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (1) Full qty
CC10016n
32
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (1) Full qty
CC10018n
32
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (1) Full qty
CC10019n
32
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (1) Full qty
CC10020n
32
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (1) Full qty
CC10021n
32
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (1) Full qty
CC10025n
32
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (1) Full qty
CC10026n
32
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (1) Full qty
CC10027n
32
Stud Inlet Manifold
New       £ 9.99
CH11508n (1) Full qty
CH11508n
32
Water Manifold Stud
New       £ 8.42
CS11797n (1) Full qty
CS11797n
32
Carburettor Mounting Stud
FU14217n (1) Full qty
33
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (2) Full qty
CC10016n
33
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (2) Full qty
CC10018n
33
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (2) Full qty
CC10019n
33
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (2) Full qty
CC10020n
33
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (2) Full qty
CC10021n
33
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (2) Full qty
CC10025n
33
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (2) Full qty
CC10026n
33
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (2) Full qty
CC10027n
33
Stud Inlet Manifold
New       £ 9.99
CH11508n (2) Full qty
CH11508n
33
Water Manifold Stud
New       £ 8.42
CS11797n (2) Full qty
CS11797n
33
Carburettor Mounting Stud
FU14217n (2) Full qty
34
WASHER
REO8 (3) Full qty
35
Nut
- (3) Full qty
36
EXPANSION PLUG
TE18 (1) Full qty
37
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (2) Full qty
CC10016n
37
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (2) Full qty
CC10018n
37
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (2) Full qty
CC10019n
37
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (2) Full qty
CC10020n
37
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (2) Full qty
CC10021n
37
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (2) Full qty
CC10025n
37
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (2) Full qty
CC10026n
37
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (2) Full qty
CC10027n
37
Stud Inlet Manifold
New       £ 9.99
CH11508n (2) Full qty
CH11508n
37
Water Manifold Stud
New       £ 8.42
CS11797n (2) Full qty
CS11797n
37
Carburettor Mounting Stud
FU14217n (2) Full qty
38
WASHER
REOB (2) Full qty
39
Nut
- (2) Full qty
40
THREADED STUD
94849 (2) Full qty
41
Cyl Head Nut 246
New       Price on Enquiry
4146619 (2) Full qty
CH11752n
41
Cyl Head Nut 206-246-250-275-330-365
New       £ 11.50
4146619 (2) Full qty
CH11969n
41
Cylinder Head Nut HE
New       Price on Enquiry
4146619 (2) Full qty
CH20058n
42
SEALING RING
MIM4056 (1) Full qty
42
Oil Seal 40/56/12
New       £ 24.48
95850302 (1) Full qty
TC14056n
43
CORN OIL PUMP ALIGNMENT
BGC1 (2) Full qty
44
STUD
95291 (2) Full qty
45
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (2) Full qty
CC10016n
45
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (2) Full qty
CC10018n
45
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (2) Full qty
CC10019n
45
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (2) Full qty
CC10020n
45
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (2) Full qty
CC10021n
45
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (2) Full qty
CC10025n
45
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (2) Full qty
CC10026n
45
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (2) Full qty
CC10027n
45
Stud Inlet Manifold
New       £ 9.99
CH11508n (2) Full qty
CH11508n
45
Water Manifold Stud
New       £ 8.42
CS11797n (2) Full qty
CS11797n
45
Carburettor Mounting Stud
FU14217n (2) Full qty
46
WASHER
REO8 (4) Full qty
47
Nut
- (4) Full qty
48
BOLT
95212 (3) Full qty
49
BOLT
95213 (3) Full qty
50
WASHER
REOB (6) Full qty
51
Nut
- (6) Full qty
52
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (2) Full qty
CC10016n
52
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (2) Full qty
CC10018n
52
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (2) Full qty
CC10019n
52
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (2) Full qty
CC10020n
52
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (2) Full qty
CC10021n
52
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (2) Full qty
CC10025n
52
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (2) Full qty
CC10026n
52
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (2) Full qty
CC10027n
52
Stud Inlet Manifold
New       £ 9.99
CH11508n (2) Full qty
CH11508n
52
Water Manifold Stud
New       £ 8.42
CS11797n (2) Full qty
CS11797n
52
Carburettor Mounting Stud
FU14217n (2) Full qty
53
WASHER
REO8 (2) Full qty
54
Nut
- (2) Full qty
55
Fuel Pump Plunger 330
New       £ 136.68
34380 (1) Full qty
FU14193n
56
Rear Main Cap O-Ring (10x1.5)
New       £ 1.16
2037 (1) Full qty
CC11491n
57
Fuel Pump Drive Bush
34371 (1) Full qty
58
SEALING RING
OR2031 (1) Full qty
58
O-Ring Cam Cover Bolt (275/4)
New       £ 1.19
95860041 (1) Full qty
CH11915n
58
O Ring 107/2031
New       Price on Enquiry
95860041 (1) Full qty
TC14040n
59
BUSH
220079 (2) Full qty
60
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (1) Full qty
CC10016n
60
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (1) Full qty
CC10018n
60
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (1) Full qty
CC10019n
60
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (1) Full qty
CC10020n
60
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (1) Full qty
CC10021n
60
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (1) Full qty
CC10025n
60
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (1) Full qty
CC10026n
60
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (1) Full qty
CC10027n
60
Stud Inlet Manifold
New       £ 9.99
CH11508n (1) Full qty
CH11508n
60
Water Manifold Stud
New       £ 8.42
CS11797n (1) Full qty
CS11797n
60
Carburettor Mounting Stud
FU14217n (1) Full qty
