Clutch And Controls

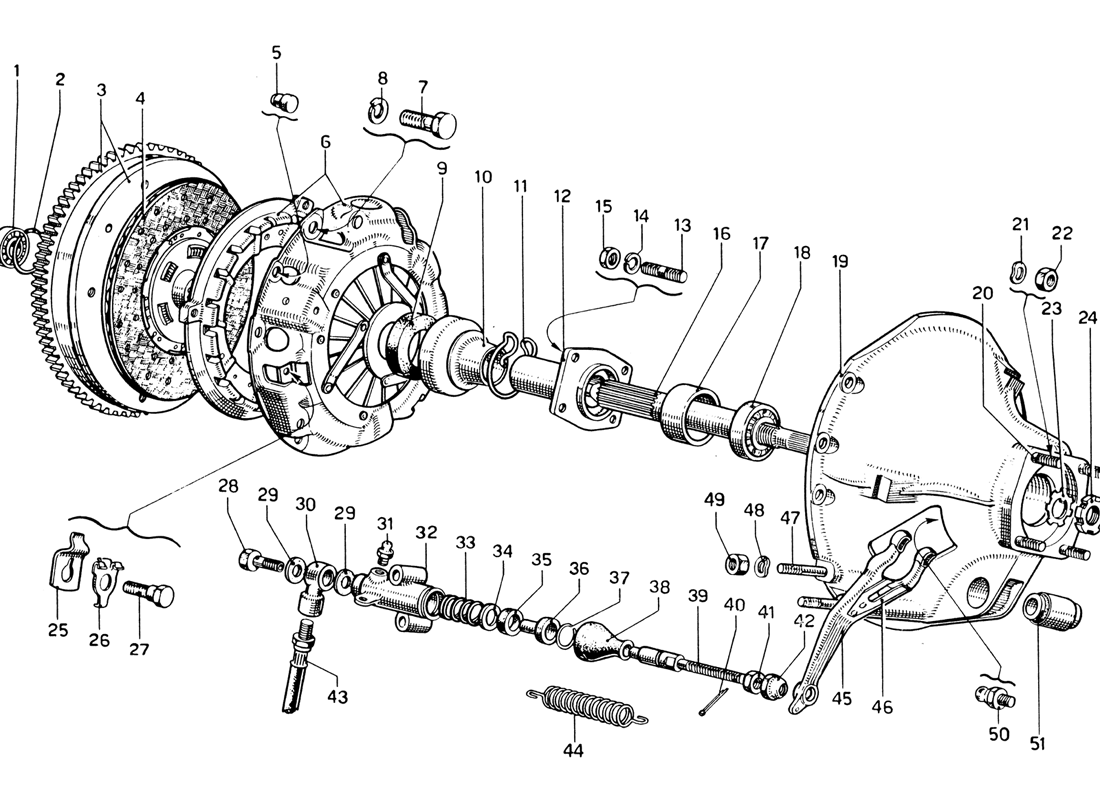

Schematic: Clutch And Controls
Loc
Part
Cond       Price
1
New       £ 15.43
101297 (1) Full qty
CC00013n
1
New       Price on Enquiry
101297 (1) Full qty
CL11530n
2
RING
50160 (1) Full qty
3
FLY TOGETHER AND CROWN
12473 (1) Full qty
4
Clutch Plate 275
110558 (1) Full qty
4
Clutch Disc
110558 (1) Full qty
4
Clutch Centre Plate 330 GT MK.…
110558 (1) Full qty
5
DOWEL
94892 (3) Full qty
6
Clutch Pressure Plate V8
121562 (1) Full qty
7
BOLT
B1 (6) Full qty
8
WASHER
8R4 (6) Full qty
9
CHARCOAL
46887 (1) Full qty
10
Carbon Carrier
500203 (1) Full qty
11
Clutch Spring 275/330/365/246
500204 (1) Full qty
11
Carbon Clutch Release Bearing …
500202 (1) Full qty
12
WITH FLANGE SLEEVE
500254 (1) Full qty
13
THREADED STUD
95920110 (4) Full qty
14
WASHER
7R4 (4) Full qty
15
NUT
7MAUNI209 (4) Full qty
16
SHAFT CLUTCH
500253 (1) Full qty
17
SPACER
500255 (1) Full qty
18
Clutch Shaft Bearing 275
95891500 (1) Full qty
19
Telaietto anteriore completo
500252 (1) Full qty
20
THREADED STUD
P6 (4) Full qty
20
New       £ 15.31
CC10024n (4) Full qty
CC10024n
21
WASHER
10R4 (4) Full qty
22
NUT
10D4 (4) Full qty
23
PLATE
93596 (1) Full qty
24
RING SHAFT CLUTCH
93595 (1) Full qty
25
Nut
- (3) Full qty
26
Nut
- (3) Full qty
27
Nut
- (3) Full qty
28
UNION
94957 (1) Full qty
29
GASKET
93078 (2) Full qty
30
UNION
94956 (1) Full qty
31
SCREW
5002591 (1) Full qty
32
Clutch Slave Cylinder 275,330
500259 (1) Full qty
32
Clutch Slave Cylinder 275,330
500259 (1) Full qty
33
SPRING
5002592 (1) Full qty
34
WASHER
5002593 (1) Full qty
35
GASKET
5002594 (1) Full qty
36
PISTON
5002595 (1) Full qty
37
SEEGER RING
5002596 (1) Full qty
38
DUST CAP
5002597 (1) Full qty
39
FERRULE
5002598 (1) Full qty
40
SPLIT PIN
C1 (1) Full qty
41
NUT
8MAUNI207 (1) Full qty
42
LOG ON FERRULE
500260 (1) Full qty
43
Clutch Flexible Hose (275,330)…
660180 (1) Full qty
44
Clutch Slave Return Spring 275…
500171 (1) Full qty
45
Clutch Arm 275
500217 (1) Full qty
45
New       Price on Enquiry
500217 (1) Full qty
CL11956n
46
TOGETHER AND SPRING CLUTCH LEV…
500272 (1) Full qty
46
SPRING
500192 (1) Full qty
47
New       £ 15.97
CC10016n (2) Full qty
CC10016n
47
New       £ 15.68
CC10018n (2) Full qty
CC10018n
47
New       £ 15.68
P2 (2) Full qty
CC10019n
47
New       £ 16.89
CC10020n (2) Full qty
CC10020n
47
New       £ 7.87
P2 (2) Full qty
CC10021n
47
New       £ 16.89
P2 (2) Full qty
CC10025n
47
New       £ 15.35
P2 (2) Full qty
CC10026n
47
New       £ 15.31
P2 (2) Full qty
CC10027n
47
New       £ 9.99
CH11508n (2) Full qty
CH11508n
47
New       £ 8.42
CS11797n (2) Full qty
CS11797n
47
Carburettor Mounting Stud
FU14217n (2) Full qty
48
WASHER
8R4 (2) Full qty
49
NUT
8MAUNI208 (1) Full qty
50
Clutch Pin
500220 (1) Full qty
51
SILENT FOR TIE ANCHOR
640309 / 88.114.241 (1) Full qty
