Cylinder Heads

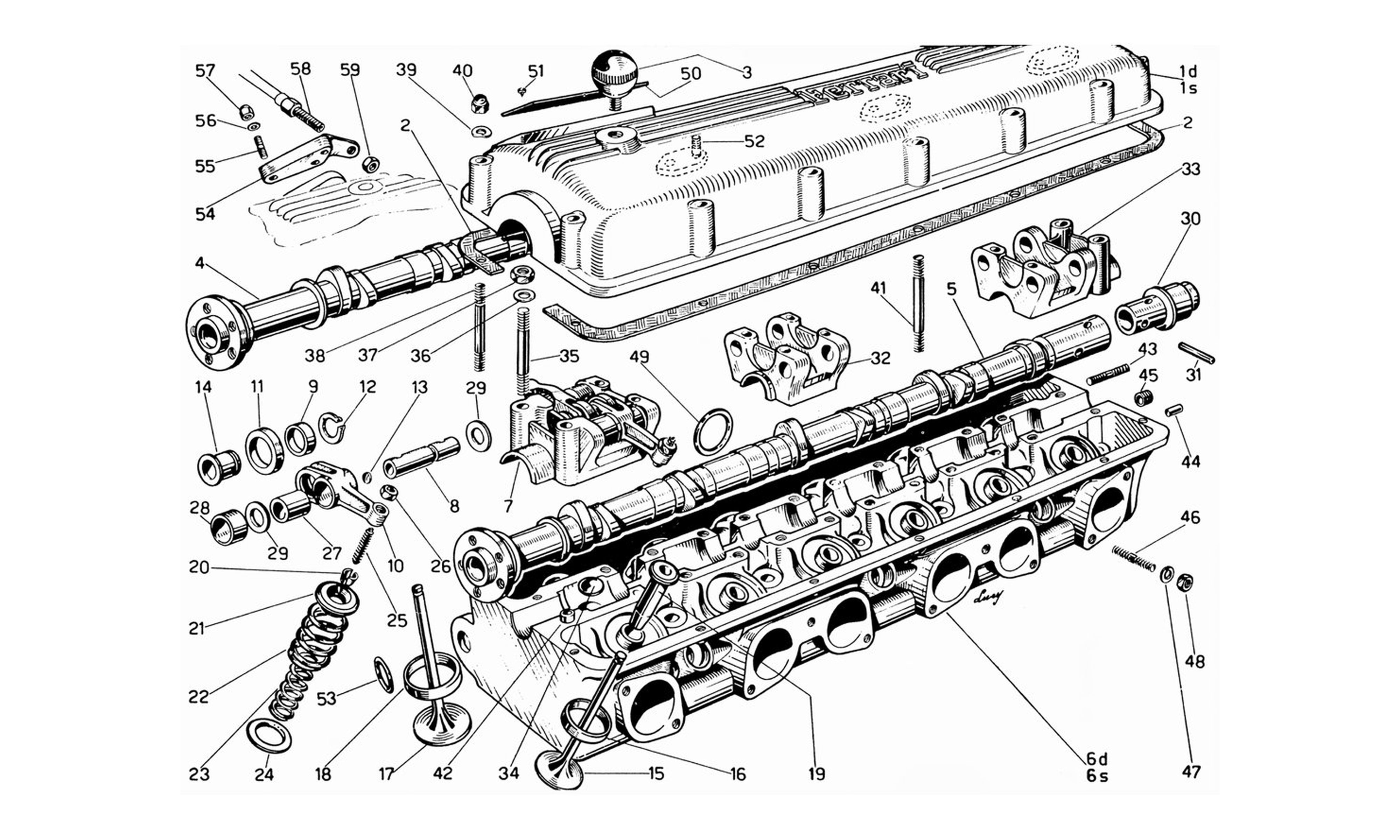

Schematic: Cylinder Heads
Schematic: Cylinder Heads
Loc
Part
Cond       Price
1
COVER
17970 (1) Full qty
1
COVER
17969 (1) Full qty
2
Cam Cover Gasket 330/365
New       £ 30.65
9160479 (2) Full qty
CH00340n
3
Cam Cover Knob
New       £ 39.33
17415 (4) Full qty
CH11534n
4
Cam Shaft 330/365 Set
New       £ 3448.50
9160811 (1) Full qty
CH11386n
4
Cam Shaft 330/365 Set
Used       Price on Enquiry
9160811 (1) Full qty
CH11386u
5
Cam Shaft 330/365 Set
New       £ 3448.50
9160811 (1) Full qty
CH11386n
5
Cam Shaft 330/365 Set
Used       Price on Enquiry
9160811 (1) Full qty
CH11386u
6
LH CYLINDER HEAD
17943 (1) Full qty
6
CYLINDER HEAD RH
17942 (1) Full qty
7
BEARING CAP FRONT
17953 (2) Full qty
8
Rocker Shaft
New       £ 52.80
16177 (24) Full qty
CH00088n
8
Rocker Shaft
Used       £ 48.40
16177 (24) Full qty
CH00088u
9
Cam Roller Bush
New       £ 18.76
9160780 (24) Full qty
CH00042n
10
ROCKER
9160076 (24) Full qty
11
Cam Rollers with Bushings (30mm)
New       £ 58.00
16643 (24) Full qty
CH00022n
11
Cam Rollers with Bushings (30mm)
Used       Price on Enquiry
16643 (24) Full qty
CH00022u
11
Cam Rollers Without Bushings (30mm)
New       £ 48.35
16643 (24) Full qty
CH00023n
12
SEEGER RING
AA14E (24) Full qty
13
EXPANSION PLUG
TE8 (24) Full qty
14
Cam Roller Pin Support
New       £ 24.15
9160781 (24) Full qty
CH00064n
15
Exhaust Valve (37.4x98mm) 330
17693 (12) Full qty
15
Exhaust Valve (37.3x98) 330
17693 (12) Full qty
16
EXHAUST VALVE SEAT
9160024 (12) Full qty
17
Inlet Valve (42.0x98mm) 330
New       £ 67.76
17691 (12) Full qty
CH00173n
18
INTAKE VALVE SEAT
9160023 (12) Full qty
19
VALVE GUIDE
17468 (24) Full qty
20
Valve Collets
New       £ 6.66
100244 (24) Full qty
CH00120n
21
Valve Spring Retainers 250
New       £ 22.57
17400 (24) Full qty
CH00104n
22
Valve Spring Outer 250
New       £ 9.85
17398 (24) Full qty
CH11134n
22
Valve Spring Outer
New       Price on Enquiry
17398 (24) Full qty
CH11138n
23
Valve Spring Inner 250
New       £ 12.64
1665 (24) Full qty
CH11136n
24
Valve Spring Shims 250/275 [42.0x21.0x1.65mm]
New       £ 4.09
17414 (24) Full qty
CH00076n
24
Valve Spring Shims 250/275 [35.0x19.4x0.80mm]
New       £ 4.09
17414 (24) Full qty
CH00078n
24
Valve Spring Shims 275 [42.4x19.0x0.50mm]
New       £ 4.79
17414 (24) Full qty
CH00080n
24
Valve Spring Shims 275 [42.4x19.0x0.50mm]
Used       Price on Enquiry
17414 (24) Full qty
CH00080u
24
Valve Spring Shims 250 [40.5x21.7x0.50mm]
New       £ 3.87
17414 (24) Full qty
CH00082n
24
Valve Spring Shims 250 [40.5x21.7x0.50mm]
Used       Price on Enquiry
17414 (24) Full qty
CH00082u
24
Valve Spring Shims 250 [40.5x21.7x1.00mm]
New       £ 4.02
17414 (24) Full qty
CH00083n
24
Valve Spring Shims [42.0x21.0x0.75mm]
New       £ 4.09
17414 (24) Full qty
CH00090n
24
Valve Spring Shims 250/275 (1.640"x0.650"x0.60")
New       £ 3.75
17414 (24) Full qty
CH00123n
25
Tappet Screw
New       £ 20.52
17880 (24) Full qty
CH00048n
26
Tappet Screw Lock-Nut
New       £ 7.21
93818 (24) Full qty
CH00046n
27
Rocker Bush
New       £ 16.51
16698 (24) Full qty
CH00044n
28
Cylinder Head Studs - 355/360
New       Price on Enquiry
148311 (24) Full qty
CH33762n
29
Rocker Arm Spacer Small 365 GT 2+2
New       £ 6.00
17401 (48) Full qty
CH33761n
30
Cam Distributor Drive
New       £ 263.95
17056 (2) Full qty
EL99017n
31
Angle Drive, Drive Pin 250 330
New       Price on Enquiry
100279 (4) Full qty
CH20066n
32
Small Rocker Block
17241 (8) Full qty
32
Small Rocker Block
New       Price on Enquiry
17241 (8) Full qty
CH11913n
33
CAP BACK
17954 (2) Full qty
34
EXPANSION PLUG
TE25 (8) Full qty
35
Stud Rocker Block Housing (M8x1.25 - x1 x70mm)
New       £ 8.42
94300 (48) Full qty
CH11506n
36
Carb Mounting Washer M8
8R5 (48) Full qty
36
Carburettor Base Nut M8x1 [11m…
8R5 (48) Full qty
36
Carb Mounting Washer M8
8R5 (48) Full qty
37
M10x1.0 Nut
New       £ 6.05
95900412 (48) Full qty
CC11460n
37
Do Not Use - See CC11460n
(48) Full qty
38
STUD
PI (24) Full qty
39
WASHER
6R3 (24) Full qty
40
Cam Cover Domed Nut 6x10 Short
New       Price on Enquiry
100044 (28) Full qty
CH11780n
41
STUD
94868 (4) Full qty
42
Dowel (Rocker Block)
New       £ 4.79
93218 (24) Full qty
CH00161n
43
STUD
PI (8) Full qty
44
Distrbutor Angle Drive Dowel
New       £ 2.37
93338 (4) Full qty
CH11548n
45
THE THREADED
6BF1 (4) Full qty
46
Stud Main Bearing [M10x114mm]
New       £ 15.97
CC10016n (20) Full qty
CC10016n
46
Stud Main Bearing [M10x102mm]
New       £ 15.68
CC10018n (20) Full qty
CC10018n
46
Stud Main Bearing (M8x108mm)
New       £ 15.68
P2 (20) Full qty
CC10019n
46
Stud Main Bearing [M10x127mm]
New       £ 16.89
CC10020n (20) Full qty
CC10020n
46
Stud Main Bearing [M10x94mm]
New       £ 7.87
P2 (20) Full qty
CC10021n
46
Stud Main Bearing (M10x121mm)
New       £ 16.89
P2 (20) Full qty
CC10025n
46
Stud Main Bearing (M10x120mm)
New       £ 15.35
P2 (20) Full qty
CC10026n
46
Stud Main Bearing (M10x94mm) 48mm Shank
New       £ 15.31
P2 (20) Full qty
CC10027n
46
Stud Inlet Manifold
New       £ 9.99
CH11508n (20) Full qty
CH11508n
46
Water Manifold Stud
New       £ 8.42
CS11797n (20) Full qty
CS11797n
46
Carburettor Mounting Stud
FU14217n (20) Full qty
47
WASHER
8R4 (20) Full qty
48
Exhaust Manifold Nut Brass M8
94803 (20) Full qty
48
M8x1 Brass Nut
New       £ 4.90
94803 (20) Full qty
SM00191n
49
SEAL
142 (12) Full qty
50
Front Cover Firing Order Tag
New       £ 75.63
22573 (1) Full qty
TC11324n
51
NAIL FIXING PLATE SELF
185X316 (4) Full qty
52
STUD
PI (6) Full qty
53
SEAL
133 (2) Full qty
54
SUPPORT
19303 (1) Full qty
55
STUD
PI (3) Full qty
56
WASHER
6R5 (3) Full qty
57
NUT
URAMAN70 (3) Full qty
58
Throttle Cable Adjuster Screw
New       Price on Enquiry
19036 (1) Full qty
FU11350n
58
Cable Adjuster (Fuel) 275 GTB2,4/GTS & 330
New       £ 32.73
19036 (1) Full qty
FU14185n
59
WASHER
6R2 (2) Full qty
59
NUT
UNI209 (1) Full qty
59
COVER
9160011 (1) Full qty
59
COVER
9160130 (1) Full qty
59
NUT
106MA (2) Full qty
59
THREADED STUD
P1 (2) Full qty
59
Stud (M6x24) Angle Drive/Water Pump
New       £ 3.58
CH11551n (2) Full qty
CH11551n
