Water Radiator & Water Pump

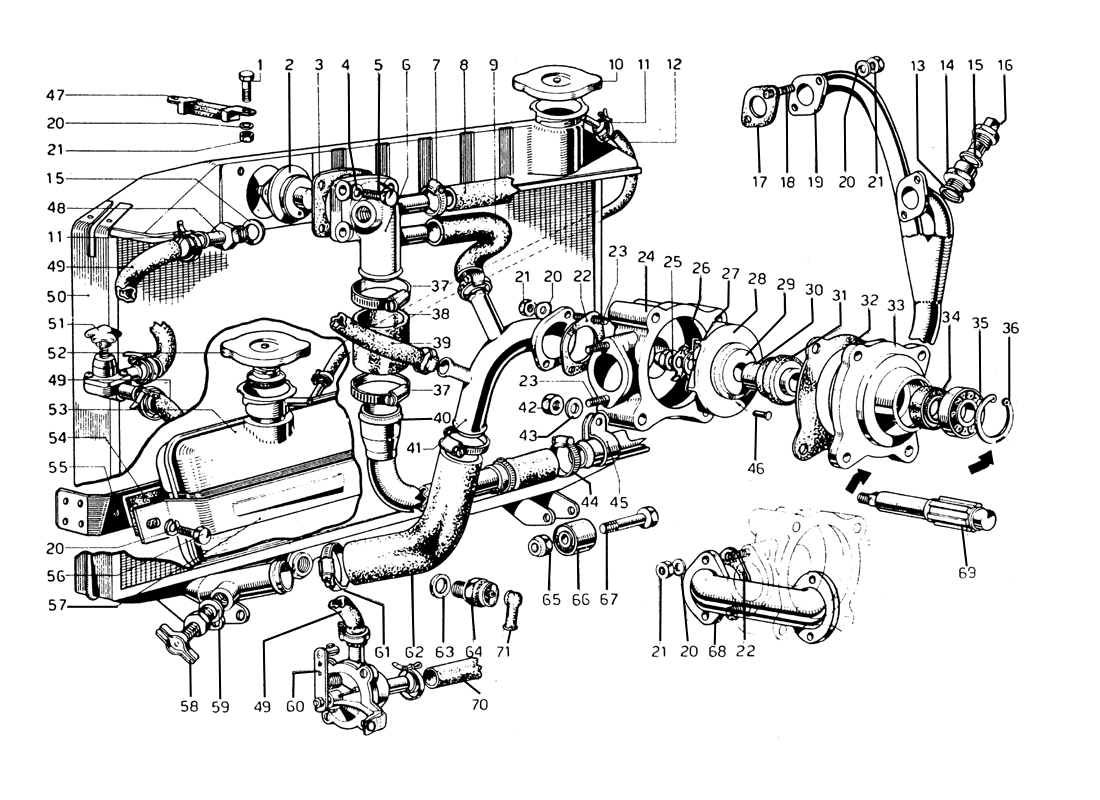

Schematic: Water Radiator & Water Pump
Schematic: Water Radiator & Water Pump
Loc
Part
Cond       Price
1
Nut
- (1) Full qty
2
THERMOSTAT MECANOSTAT
D3554 (1) Full qty
2
Thermostat 275,330
New       £ 76.00
95400600 (1) Full qty
CS11342n
3
Thermostat Gasket 275
New       £ 7.87
800082 (1) Full qty
CS00020n
4
WASHER
6R5 (1) Full qty
5
BOLT
6X18UM187 (1) Full qty
6
Thermostat Housing 275
New       £ 577.50
800110 (1) Full qty
CS11340n
7
HOSE CLAMP
94101 (1) Full qty
8
TUBO GOMMA
MT0370 (1) Full qty
9
TUBO GOMMA
MT0290 (1) Full qty
10
CAP RADIATOR
252841 (1) Full qty
11
JUBILEE CLIP
18270 (1) Full qty
12
TUBO GOMMA
MT0900 (1) Full qty
13
Copper Washer [18x24x1]
New       Price on Enquiry
10263160 (1) Full qty
CC11484n
13
Temp Sender Adapt/Water Pipe Union Washer
New       £ 0.21
10263160 (1) Full qty
SM99907n
14
Oil/Water Temp Sender Adaptor Plug
New       £ 69.58
81004 (1) Full qty
CS10014n
14
Temp Sender Adapter (Original)
Used       £ 68.75
81004 (1) Full qty
NS10107u
15
Copper Washer Testarossa
New       Price on Enquiry
10257060 (1) Full qty
CC11524n
15
Temp Sender/Water Jacket/Sump Plug Washer
New       £ 0.21
10257060 (1) Full qty
SM99909n
16
Nut
- (1) Full qty
17
Head Water Rail Gasket 250
New       £ 20.59
16395 (1) Full qty
CS00018n
17
Water Pipe Gasket
New       Price on Enquiry
16395 (1) Full qty
CS11840n
18
THREADED STUD
P1 (1) Full qty
18
Stud (M6x24) Angle Drive/Water Pump
New       £ 3.58
CH11551n (1) Full qty
CH11551n
19
Thermostat Gasket 355
New       £ 5.95
(1) Full qty
CS00001n
20
WASHER
6R4 (1) Full qty
21
NUT
1D6UNI207 (1) Full qty
22
Water Pump To Water Transfer Pipe Gasket 250,275
New       £ 6.95
26498 (1) Full qty
CS00014n
23
THREADED STUD
P1 (1) Full qty
23
Stud (M6x24) Angle Drive/Water Pump
New       £ 3.58
CH11551n (1) Full qty
CH11551n
24
Water Pump Large Outer Housing
New       £ 545.44
26490 (1) Full qty
CS00064n
25
CAP NUT
92896 (1) Full qty
26
Water Pump Impeller Lock Tab
New       Price on Enquiry
100434 (1) Full qty
CS11584n
26
Water Pump Lock Tab
New       £ 5.54
100434 (1) Full qty
CS11807n
27
Washer 8.15-17x2
New       £ 0.11
93798 (1) Full qty
CS12076n
28
Water Pump Impeller Large 250/275
New       £ 221.03
26492 (1) Full qty
CS11290n
29
SPACER
26494 (1) Full qty
30
Water Pump Spacer Sleeve Upgraded 19OD (To Suit CS11757n)
New       £ 51.43
26495 (1) Full qty
CS11252n
30
Water Pump Spacer Sleeve
Used       Price on Enquiry
26495 (1) Full qty
CS11252u
30
Water Pump Spacer 250/275
New       £ 22.39
26495 (1) Full qty
CS11296n
31
Water Pump Face Seal 38mm
New       £ 82.59
95850601 (1) Full qty
CS11293n
31
Water Pump Face Seal 38mm
New       £ 82.59
95850601 (1) Full qty
CS11293n
31
Water Pump Seal
New       Price on Enquiry
95850601 (1) Full qty
CS12005n
31
Water Pump Seal
New       Price on Enquiry
95850601 (1) Full qty
CS12005n
32
Water Pump Large Gasket
New       £ 8.42
26496 (1) Full qty
CS00022n
33
Water Pump Large Inner Body
New       £ 387.20
26491 (1) Full qty
CS00062n
33
Water Pump Large Inner Body ( Used )
Used       £ 387.20
26491 (1) Full qty
CS00062u
34
SEALING RING
19327 (1) Full qty
35
Bearing
New       Price on Enquiry
95890204 (1) Full qty
CS11532n
35
Front Cover/Water Pump Bearing
New       £ 48.35
95890204 (1) Full qty
TC00018n
36
SEEGER RING
J37X15 (1) Full qty
37
JUBILEE CLIP
94099 (1) Full qty
38
Nut
- (1) Full qty
39
TUBO GOMMA
MT2 (1) Full qty
40
Water Pipe 275
New       £ 302.45
800086 (1) Full qty
CS11783n
41
Water Pump Outlet Pipe 275
New       £ 489.50
800085 (1) Full qty
CS11759n
42
NUT
1D8UNI208 (1) Full qty
43
Carb Mounting Washer M8
8R5 (1) Full qty
43
Carburettor Base Nut M8x1 [11m…
8R5 (1) Full qty
43
Carb Mounting Washer M8
8R5 (1) Full qty
44
HOSE WATER INLET HOSE RADIATOR…
94103 (1) Full qty
45
JUBILEE CLIP
81113 (1) Full qty
46
NAIL FOR SPACER
RI2 (1) Full qty
47
Exhaust Strap
101497 (1) Full qty
48
Thermostat Union 275
New       Price on Enquiry
800084 (1) Full qty
CS11865n
49
PIPE HEATING
MT170 (1) Full qty
50
Water Radiator 275 GTB/S FIM
New       £ 3932.50
800057 (1) Full qty
CS11889n
51
Heater Tap Valve Early
New       £ 101.04
400112 (1) Full qty
TC11338n
52
FUEL TANK
252733A (1) Full qty
53
EXPANSION TANK
252733 (1) Full qty
54
RUBBER SOFT
252733D (1) Full qty
55
BRACKET / SUPPORT
800093 (1) Full qty
56
Nut
- (1) Full qty
57
BRACKET
252733C (1) Full qty
58
250 Radiator Pitcock
252840 (1) Full qty
59
GASKET
252840A (1) Full qty
60
HEATER DIAPHRAGHM
95403103 (1) Full qty
60
Heater Valve
New       £ 111.93
400111 (1) Full qty
AC00152n
61
JUBILEE CLIP
94100 (1) Full qty
62
Bottom Hose 275
800138 (1) Full qty
62
Bottom Hose 275/330 GTC
800138 (1) Full qty
63
GASKET
94706 (1) Full qty
64
Fan Switch (86-76)
New       £ 39.22
168008 (1) Full qty
CS00108n
64
Fan Switch (86-76)
Used       £ 142.95
168008 (1) Full qty
CS00108u
64
Fan Switch (95-86c)
New       £ 42.35
168008 (1) Full qty
CS11562n
64
F40 Water Temp Sensor
New       Price on Enquiry
125380 (1) Full qty
EL99400n
65
Wishbone Mounting U Bolt Nut
New       £ 1.05
95900611 (1) Full qty
FS10439n
66
Nut
- (1) Full qty
67
BOLT
B2 (1) Full qty
67
Trailing Arm Bolt (M14x78mm)
New       £ 20.03
RS00283n (1) Full qty
RS00283n
68
Water Transfer Pipe
New       £ 252.29
26499 (1) Full qty
CS00056n
69
Water Pump Shaft 250/275
New       £ 329.41
26493 (1) Full qty
CS11314n
70
Nut
- (1) Full qty
71
Nut
- (1) Full qty
