Lubrication System - Tank

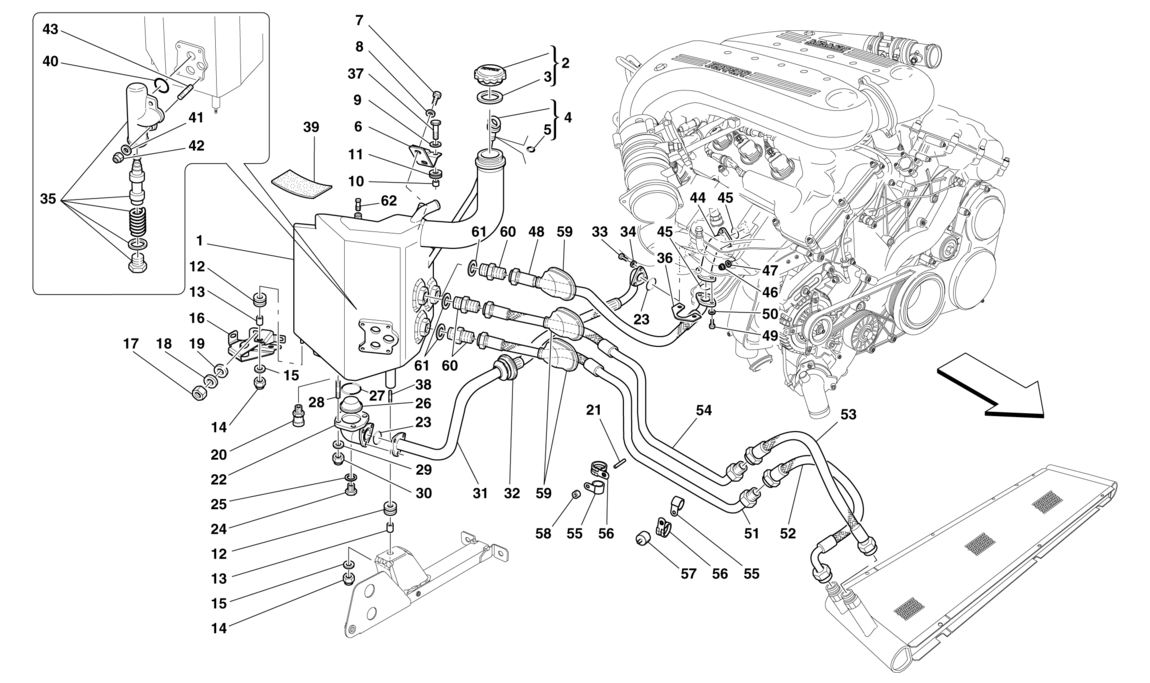

Schematic: Lubrication System - Tank
Schematic: Lubrication System - Tank
Loc
Part
Cond       Price
1
OIL TANK
264320 (1) Full qty
2
COMPLETE CAP
175708 (1) Full qty
3
GASKET
175709 (1) Full qty
4
DIPSTICK
265206 (1) Full qty
5
O-RING
233118 (1) Full qty
6
UPPER BRACKET
252336 (1) Full qty
7
Screw
10902024 (2) Full qty
8
WASHER
12620474 (2) Full qty
9
WASHER
12643724 (1) Full qty
10
Spacer
New       Price on Enquiry
149707 (1) Full qty
CS11902n
11
Cable Grommet
New       Price on Enquiry
103549 (1) Full qty
AC00210n
12
Cable Grommet
New       Price on Enquiry
103549 (2) Full qty
AC00210n
13
Spacer
New       Price on Enquiry
149707 (2) Full qty
CS11902n
14
NUT
14059214 (2) Full qty
15
WASHER
12643724 (2) Full qty
16
INFERIOR BRACKET
194451 (1) Full qty
17
SCREW
16043434 (2) Full qty
18
WASHER
12647024 (2) Full qty
19
Do Not Use - See GE07667n
12601374 (2) Full qty
19
Rocker Block Wavy Washer
New       £ 0.12
12601374 (2) Full qty
CH11905n
20
WATER/OIL TEMPERATURE SENSOR
180137 (1) Full qty
21
STUD
11501024 (1) Full qty
22
OIL PICKUP
210914 (1) Full qty
23
O-Ring F430
New       £ 0.53
153628 (2) Full qty
CL12024n
23
O Ring Enzo
New       Price on Enquiry
153628 (2) Full qty
SU11796n
24
Threaded Plug 575 Oil Tank
10300711 (1) Full qty
25
Copper Washer Testarossa
New       Price on Enquiry
10257060 (1) Full qty
CC11524n
25
Temp Sender/Water Jacket/Sump Plug Washer
New       £ 0.21
10257060 (1) Full qty
SM99909n
26
Oil Pickup Pipe Filter
New       £ 27.23
100332 (1) Full qty
SU11418n
26
Oil Pickup Filter 246
New       Price on Enquiry
100332 (1) Full qty
SU11720n
27
O-Ring
New       Price on Enquiry
125521 (1) Full qty
GE00302n
28
STUD BOLT
11500424 (4) Full qty
28
STUD BOLT
11500424 (4) Full qty
29
Washer
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
30
Nyloc Nut 6 x 1 x 7.6mm
102948 (4) Full qty
31
OIL PIPE FROM PUMP TO PICKUP
259126 (1) Full qty
32
BELLOW
202151 (1) Full qty
33
SCREW
14433124 (3) Full qty
34
WASHER
12604274 (3) Full qty
35
COMPLETE THERMOSTAT VALVE
235648 (1) Full qty
36
SHIELD
231837 (1) Full qty
37
SCREW
10902824 (1) Full qty
38
STUD BOLT
11500524 (2) Full qty
39
Rubber spacer
142798 (2) Full qty
40
O-RING
139934 (3) Full qty
41
Washer 1.6mm 6.4x11.95x1.6
10519424 (4) Full qty
42
Nut
102741 (4) Full qty
43
STUD
13540924 (4) Full qty
44
OIL OUTLET PIPE
219688 (1) Full qty
45
O-Ring F430
New       £ 0.53
153628 (2) Full qty
CL12024n
45
O Ring Enzo
New       Price on Enquiry
153628 (2) Full qty
SU11796n
46
NUT
177778 (3) Full qty
47
WASHER
12604474 (3) Full qty
48
OIL PIPE FROM ENGINE TO TANK
259127 (1) Full qty
49
SCREW
16043524 (2) Full qty
50
WASHER
12604474 (2) Full qty
51
OIL PIPE FROM TANK TO RADIATOR…
225623 (1) Full qty
52
OIL PIPE FROM TANK TO RADIATOR…
225628 (1) Full qty
53
OIL PIPE FROM RADIATOR TO TANK…
225630 (1) Full qty
54
OIL PIPE FROM RADIATOR TO TANK…
225633 (1) Full qty
55
Bracket
10441790 (2) Full qty
56
Bracket
10442190 (2) Full qty
57
Fuel Pump Mounting
102947 (1) Full qty
57
Mount
New       Price on Enquiry
102947 (1) Full qty
GE00644n
58
SHIM
13604115 (1) Full qty
59
BELLOW
202152 (3) Full qty
60
Union
138150 (3) Full qty
61
Oil Seal
New       Price on Enquiry
144487 (3) Full qty
GB10464n
62
CONNECTOR -Not for CINA, USA, …
117715 (1) Full qty
