Main Shaft Gears And Gearbox Oil Pump -Not For 456 Gta

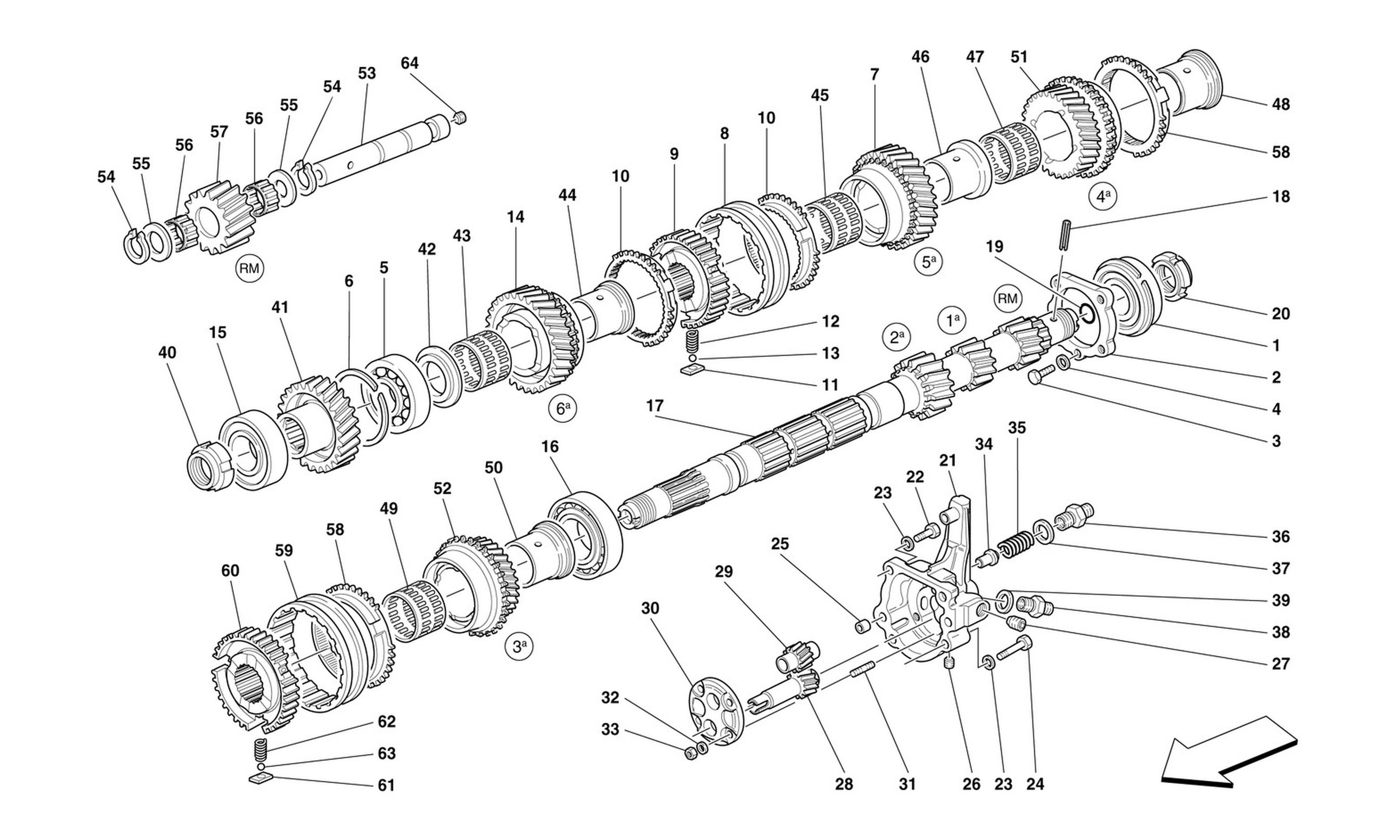

Schematic: Main Shaft Gears And Gearbox Oil Pump -Not For 456 Gta
Schematic: Main Shaft Gears And Gearbox Oil Pump -Not For 456 Gta
Loc
Part
Cond       Price
1
PRIMARY SHAFT BEARING, OIL PUM…
144502 (1) Full qty
2
MOUNTING RING
144444 (1) Full qty
3
SCREW
16043424 (1) Full qty
4
Wavy Lock Washer 8mm
127496 (1) Full qty
5
Bearing 4DAPV-N207
New       Price on Enquiry
104257 (1) Full qty
GB10256n
6
STOP RING
144511 (1) Full qty
7
PINION FOR 5TH GEAR
155851 (1) Full qty
8
SLEEVE
152206 (1) Full qty
9
SYNCHRONIZER BODY
152207 (1) Full qty
10
SYNCHRONIZER RING
152209 (2) Full qty
11
SMALL BLOCK
152195 (3) Full qty
12
SPRING
152196 (3) Full qty
13
BALL
152197 (3) Full qty
14
PINION FOR 6TH GEAR
155852 (1) Full qty
15
ROLLER BEARING
156472 (1) Full qty
16
Bearing
131056 (1) Full qty
17
MAIN SHAFT FOR GEAR LEVER
157374 (1) Full qty
18
SPRING PIN
14601270 (1) Full qty
19
O Ring Seal
New       Price on Enquiry
109724 (1) Full qty
GE00078n
20
RING NUT
150963 (1) Full qty
21
OIL PUMP BODY
150555 (1) Full qty
22
SCREW -M8 X 50- -After depleti…
16044224 (2) Full qty
23
Do Not Use - See GE07667n
12601374 (4) Full qty
23
Rocker Block Wavy Washer
New       £ 0.12
12601374 (4) Full qty
CH11905n
24
Screw
16044521 (2) Full qty
25
Dowel
102704 (2) Full qty
26
Plug
14326150 (2) Full qty
27
Plug
10269450 (1) Full qty
28
Drive gear
109722 (1) Full qty
29
Gearbox Oil Drive Gear 512 BB/…
109723 (1) Full qty
30
Oil pump cover
121962 (1) Full qty
31
STUD
11500024 (4) Full qty
32
Washer
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
33
NUT
15896214 (4) Full qty
34
VALVE
150484 (1) Full qty
35
SPRING
150576 (1) Full qty
36
CONNECTOR
150577 (1) Full qty
37
Copper Washer Testarossa
New       Price on Enquiry
10257060 (1) Full qty
CC11524n
37
Temp Sender/Water Jacket/Sump Plug Washer
New       £ 0.21
10257060 (1) Full qty
SM99909n
38
UNION
150571 (1) Full qty
39
Pressure Sensor Washer
New       Price on Enquiry
10259960 (1) Full qty
SU11780n
40
RING NUT
125534 (1) Full qty
41
DRIVEN GEAR
161822 (1) Full qty
41
DRIVEN GEAR
154761 (1) Full qty
42
SPACER
143886 (1) Full qty
43
4th speed roller cage
107525 (1) Full qty
44
BUSHING
143893 (1) Full qty
45
4th speed roller cage
107525 (1) Full qty
46
BUSHING
152094 (1) Full qty
47
4th speed roller cage
107525 (1) Full qty
48
BUSHING
152093 (1) Full qty
49
Double row roller cage for 5th…
109002 (1) Full qty
49
4th speed roller cage
107525 (1) Full qty
50
BUSHING
161445 (1) Full qty
50
BUSHING
152092 (1) Full qty
51
COMPLETE PINION FOR 4TH GEAR
155850 (1) Full qty
52
COMPLETE PINION FOR 3RD GEAR
157084 (1) Full qty
53
PIN
159410 (1) Full qty
54
FLEXIBLE RING
158272 (2) Full qty
55
Spacer
104249 (2) Full qty
55
WASHER Th. 3,9 mm-
164555 (2) Full qty
55
SPACER WASHER -mm. 4,1
158257 (2) Full qty
56
Roller cage for reverse idle g…
104256 (2) Full qty
57
IDLE GEAR FOR REVERSE
155879 (1) Full qty
58
SYNCHRONIZER RING
155155 (2) Full qty
59
SLEEVE FOR SYNCHRONIZER
152198 (1) Full qty
60
SYNCHRONIZER BODY
152199 (1) Full qty
60
SYNCHRONIZER BODY
161015 (1) Full qty
61
SMALL BLOCK
152195 (3) Full qty
62
SPRING
161016 (3) Full qty
62
SPRING
152196 (3) Full qty
63
BALL
152197 (3) Full qty
64
PLUG
10269350 (1) Full qty
