Main Shaft Gears And Clutch Oil Pump

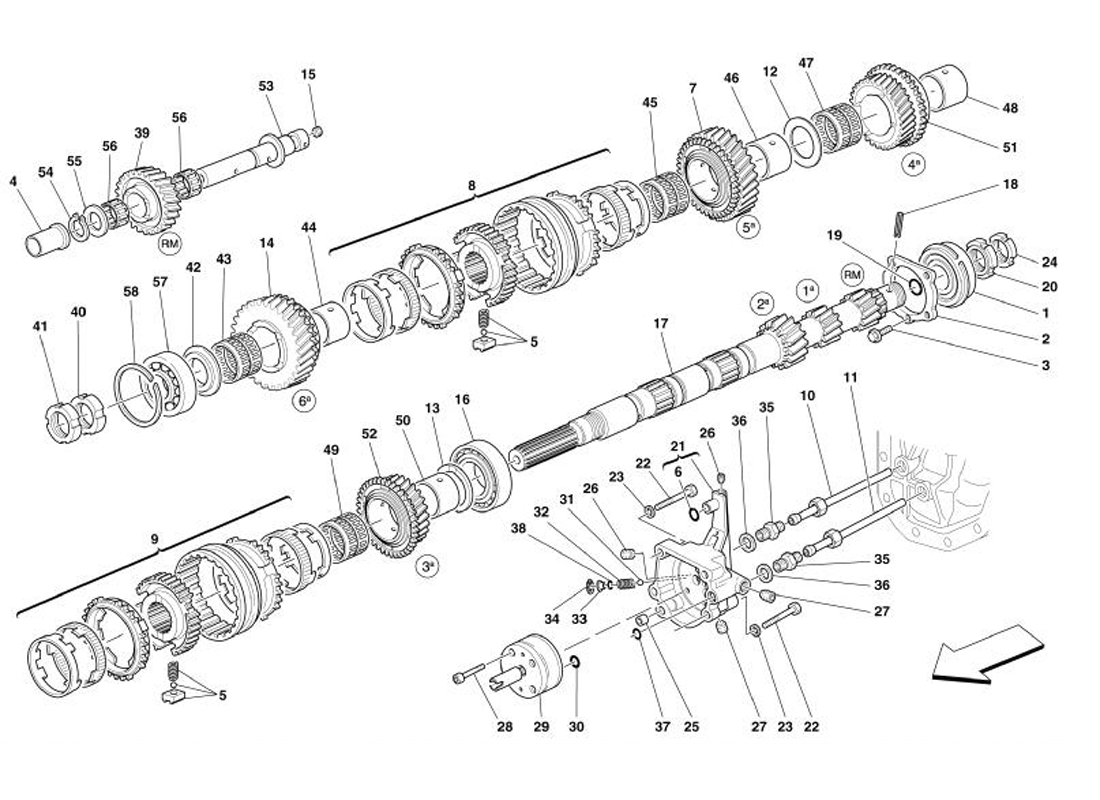

Schematic: Main Shaft Gears And Clutch Oil Pump
Loc
Part
Cond       Price
1
PRIMARY SHAFT BEARING, OIL PUM…
144502 (1) Full qty
2
MOUNTING RING
144444 (1) Full qty
3
SCREW -M8 X 20-
16287124 (1) Full qty
4
SPACER BUSHING
211961 (1) Full qty
5
PAD FOR SYNCHRONIZER/BALL/ SPR…
194029 (2) Full qty
6
O-RING
14452981 (1) Full qty
7
5th SPEED GEAR
197563 (1) Full qty
8
COMPLETE 5th AND 6th SPEED SYN…
189689 (1) Full qty
9
COMPLETE 3rd AND 4th SPEED SYN…
189657 (1) Full qty
10
OIL RETURN PIPE
179660 (1) Full qty
11
OIL DELIVERY PIPE
179659 (1) Full qty
12
RING
195810 (1) Full qty
13
RING
189700 (1) Full qty
14
6th SPEED GEAR
189693 (1) Full qty
15
CAP
189573 (1) Full qty
16
ROLLER BEARING
228055 (1) Full qty
17
PRIMARY GEARBOX SHAFT
210495 (1) Full qty
18
SPRING PIN
14601270 (1) Full qty
19
New       Price on Enquiry
109724 (1) Full qty
GE00078n
20
RING NUT
163670 (1) Full qty
21
OIL PUMP BODY
195013 (1) Full qty
22
Screw
16044321 (4) Full qty
23
Do Not Use - See GE07667n
12601374 (4) Full qty
23
New       £ 0.12
12601374 (4) Full qty
CH11905n
24
RING NUT
163684 (1) Full qty
25
Dowel
102704 (1) Full qty
26
Plug
14326150 (2) Full qty
27
New       £ 6.59
10269550 (2) Full qty
CH20085n
28
SCREW -M4 X 25-
14303474 (4) Full qty
29
COMPLETE GEARBOX OIL PUMP
185458 (1) Full qty
30
New       Price on Enquiry
137192 (1) Full qty
CC11696n
31
BALL
135770 (1) Full qty
32
SPRING
171889 (1) Full qty
33
CAP
162315 (1) Full qty
34
SEEGER RING
11057576 (1) Full qty
35
CONNECTOR
150577 (2) Full qty
36
New       Price on Enquiry
10257060 (2) Full qty
CC11524n
36
New       £ 0.21
10257060 (2) Full qty
SM99909n
37
New       Price on Enquiry
137192 (1) Full qty
CC11696n
38
GASKET
14453281 (1) Full qty
39
REVERSE IDLER GEAR
210496 (1) Full qty
40
RING NUT
189707 (1) Full qty
41
RING NUT
189708 (1) Full qty
42
RING
189704 (1) Full qty
42
SHIM
189709 (1) Full qty
43
Double row roller cage for 5th…
109002 (1) Full qty
44
BUSHING
189705 (1) Full qty
45
Double row roller cage for 5th…
109002 (1) Full qty
46
BUSHING
195809 (1) Full qty
47
Double row roller cage for 5th…
109002 (1) Full qty
48
BUSHING
195809 (1) Full qty
49
Double row roller cage for 5th…
109002 (1) Full qty
50
BUSHING
189656 (1) Full qty
51
4th SPEED GEAR
197562 (1) Full qty
52
3rd SPEED GEAR
189659 (1) Full qty
53
PIN
211960 (1) Full qty
54
SNAP RING
211962 (1) Full qty
55
WASHER
193891 (1) Full qty
56
Roller cage for reverse idle g…
104256 (2) Full qty
57
New       £ 178.13
103030 (1) Full qty
GB10106n
57
New       £ 182.66
103030 (1) Full qty
GB10307n
58
STOP RING
144511 (1) Full qty
