Cylinder Head (Left)

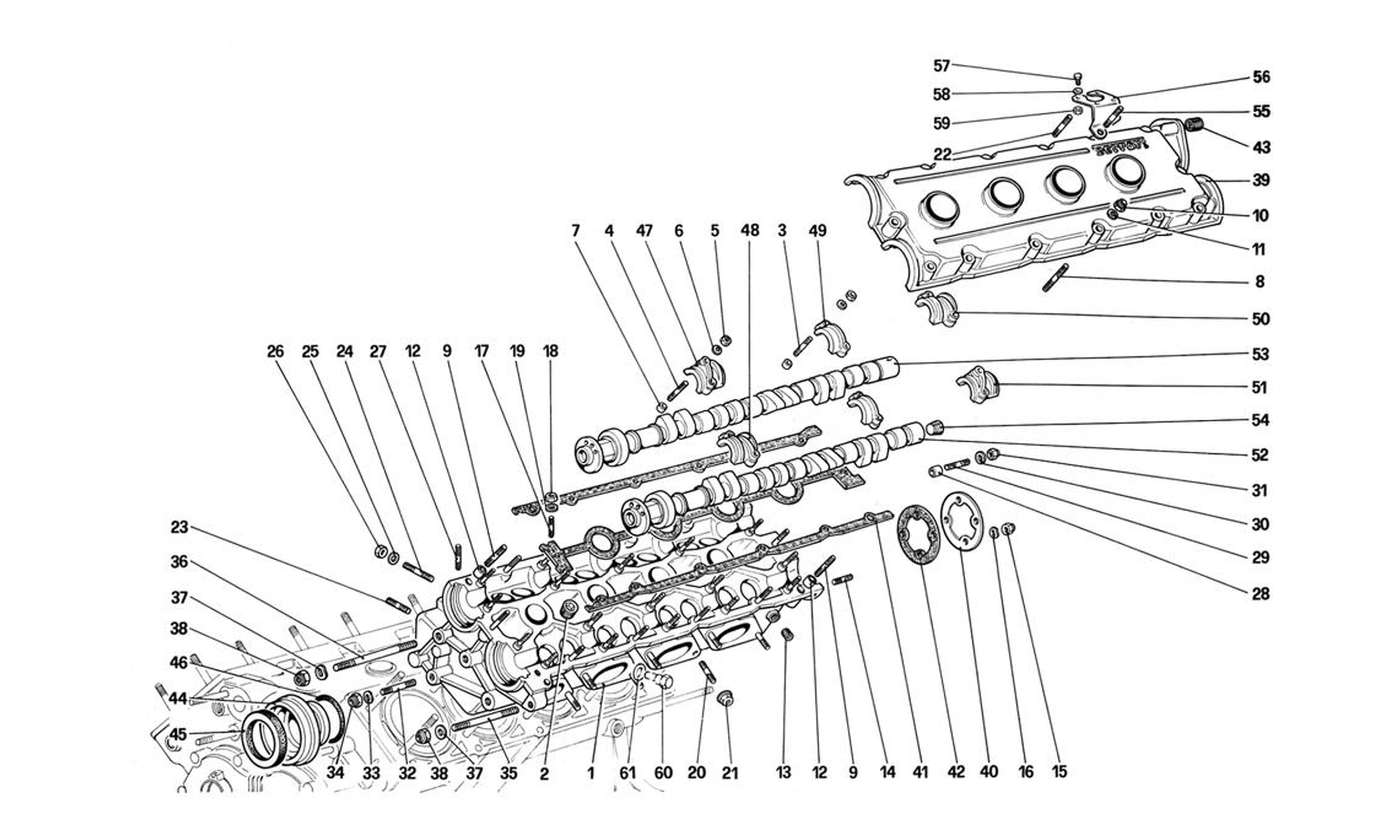

Schematic: Cylinder Head (Left)
Loc
Part
Cond       Price
1
Left cylinder head
127491 (1) Full qty
1
Left cylinder head, complete
131888 (1) Full qty
1
Left cylinder head
127491 (1) Full qty
1
Left cylinder head, complete
127490 (1) Full qty
2
New       Price on Enquiry
127635 (5) Full qty
CH20046n
3
New       £ 5.30
102735 (12) Full qty
CH12063n
4
Stud (outer caps)
102754 (8) Full qty
5
Nut
New       Price on Enquiry
15896211 (20) Full qty
CH11996n
6
Washer
11197773 (20) Full qty
7
New       £ 0.89
102725 (20) Full qty
EL99607n
8
Stud
13541621 (10) Full qty
9
Stud
13541721 (2) Full qty
10
New       Price on Enquiry
100044 (14) Full qty
CH11780n
11
New       Price on Enquiry
11197771 (14) Full qty
CH20004n
11
New       Price on Enquiry
11197771 (14) Full qty
CH20034n
12
New       £ 0.89
102725 (2) Full qty
EL99607n
13
Plug
14326150 (3) Full qty
14
Stud on dowel
11500321 (4) Full qty
15
Nut
12575411 (4) Full qty
16
Washer
12601271 (4) Full qty
17
Stud
13543321 (9) Full qty
18
Nut
16100811 (10) Full qty
19
Washer
11198071 (10) Full qty
20
Stud
12354521 (8) Full qty
21
Nut
124525 (8) Full qty
22
Stud
13541721 (1) Full qty
23
Stud
13541621 (3) Full qty
24
Stud
13541721 (5) Full qty
25
Washer
11197773 (8) Full qty
26
Nut
New       Price on Enquiry
15896211 (8) Full qty
CH11996n
27
Stud
13543521 (1) Full qty
28
New       £ 0.89
102725 (2) Full qty
EL99607n
29
Stud
11500521 (2) Full qty
30
Washer
11197773 (2) Full qty
31
Nut
New       Price on Enquiry
15896211 (2) Full qty
CH11996n
32
Stud
13543721 (3) Full qty
33
Washer
12601371 (3) Full qty
34
Nut
16104411 (3) Full qty
35
Stud securing cover
13953821 (1) Full qty
36
Stud to fix. crankcase and com…
13451821 (1) Full qty
37
Washer
107993 (1) Full qty
37
Washer
14496621 (1) Full qty
38
Nut
12574511 (2) Full qty
39
Left head cover
117221 (1) Full qty
39
Left head cover, complete
111565 (1) Full qty
40
Rear cover
103796 (1) Full qty
41
Gasket
117264 (1) Full qty
41
Gasket
132917 (1) Full qty
42
Gasket
104694 (1) Full qty
42
Gasket
132918 (1) Full qty
43
Heli-coil
13525470 (3) Full qty
44
Front cover
117257 (2) Full qty
45
New       Price on Enquiry
105389 (2) Full qty
CH20028n
45
Camshaft Oil Seal, Right & Lef…
105389 (2) Full qty
46
New       £ 4.04
117275 (2) Full qty
CH11664n
47
Front cap inlet side
117042 (1) Full qty
48
Front cap exhaust side
117041 (1) Full qty
49
Intermediate cap
126811 (6) Full qty
50
Rear cap inlet side
126202 (1) Full qty
51
Rear cap exhaust side
126203 (1) Full qty
52
Left exhaust camshaft complete…
126558 (1) Full qty
53
Left intake camshaft complete
126188 (1) Full qty
54
Plug
10269750 (1) Full qty
55
Stud
13541721 (1) Full qty
56
Bracket
116875 (1) Full qty
56
(1A) Bracket
134259 (1) Full qty
56
(2A) Bracket
134260 (1) Full qty
56
Bracket
121150 (1) Full qty
57
Screw
10373411 (4) Full qty
58
Washer
10615171 (4) Full qty
59
Nut
16107111 (4) Full qty
60
New       Price on Enquiry
127545 (4) Full qty
CH33746n
61
New       Price on Enquiry
10257060 (4) Full qty
CC11524n
61
New       £ 0.21
10257060 (4) Full qty
SM99909n
