Right Hand Cylinder Head

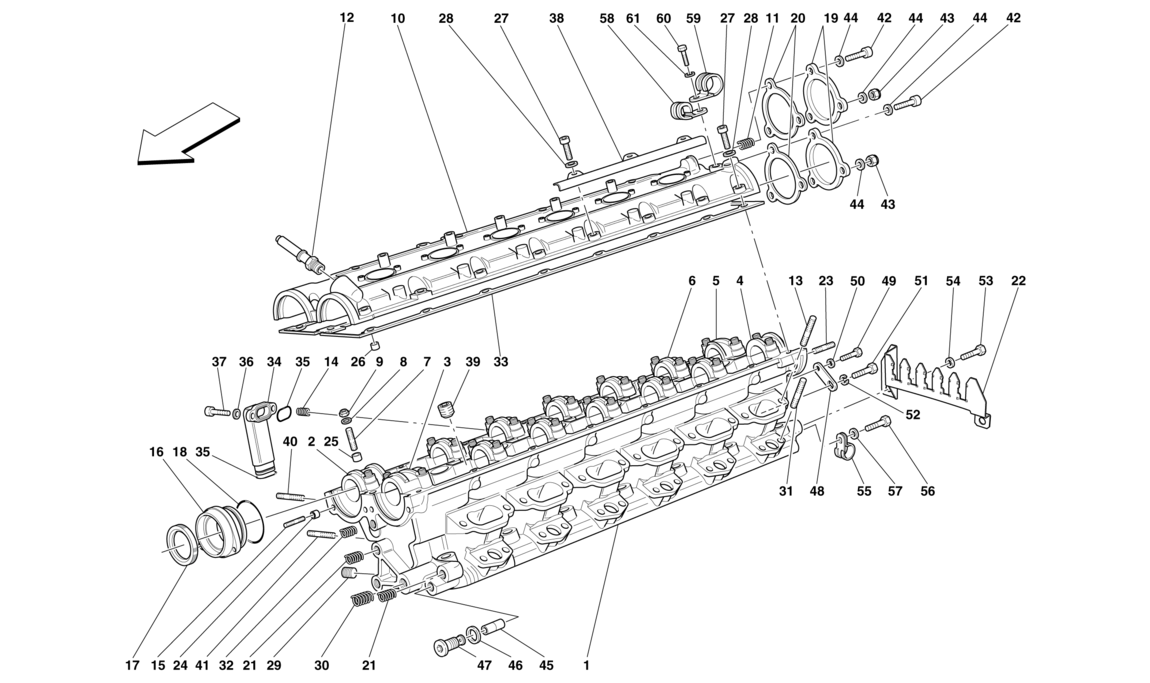

Schematic: Right Hand Cylinder Head
Loc
Part
Cond       Price
1
RH HEAD
204150 (1) Full qty
1
RH HEAD
204150 (1) Full qty
1
RH HEAD
203507 (1) Full qty
1
RH HEAD
203507 (1) Full qty
2
RH FRONT CAP
154203 (1) Full qty
3
LH FRONT CAP
154205 (1) Full qty
4
LH REAR CAP
154204 (1) Full qty
5
RH REAR CAP
154206 (1) Full qty
6
INTERMEDIATE CAP
154207 (10) Full qty
7
STUD BOLT -M6 X 12- -Shank len…
13541424 (28) Full qty
8
New       Price on Enquiry
11197774 (28) Full qty
GE35524n
9
NUT
15896214 (28) Full qty
10
RH CYLINDER HEAD COVER
198890 (1) Full qty
11
Heli-coil on gearbox casing
13525570 (1) Full qty
12
THREADED CONNECTOR
198904 (1) Full qty
13
New       £ 1.90
13541124 (12) Full qty
CH12065n
14
Heli coil
13525170 (2) Full qty
15
STUD BOLT
13539324 (4) Full qty
15
STUD BOLT
13539424 (4) Full qty
16
FRONT COVER
182409 (2) Full qty
17
Sealing ring
163987 (2) Full qty
17
New       Price on Enquiry
163987 (2) Full qty
CH11672n
18
New       Price on Enquiry
158349 (2) Full qty
CH11658n
19
REAR COVER
182126 (2) Full qty
20
New       Price on Enquiry
182127 (2) Full qty
CH11764n
21
Heli-coil
13525770 (6) Full qty
22
CONNECTORS MOUNTING BRACKET
196202 (1) Full qty
23
New       £ 1.90
13541124 (4) Full qty
CH12065n
24
CENTRING DOWEL
182434 (4) Full qty
25
New       £ 0.89
102725 (28) Full qty
EL99607n
26
New       £ 0.89
102725 (2) Full qty
EL99607n
27
SCREW
156834 (18) Full qty
28
New       Price on Enquiry
12601274 (18) Full qty
CC11576n
29
THREADED PLUG -Applicable for …
14326101 (1) Full qty
30
Heli-coil
13524670 (2) Full qty
31
STUD
11500224 (12) Full qty
32
Heli-coil
13525470 (2) Full qty
33
New       Price on Enquiry
182931 (1) Full qty
CH11650n
34
OIL DRAIN DUCT
154647 (1) Full qty
35
New       Price on Enquiry
142599 (2) Full qty
CH11758n
36
New       Price on Enquiry
12601174 (2) Full qty
ST00358n
37
SCREW
14304224 (2) Full qty
38
CABLE RETAINER BRACKET
182703 (1) Full qty
39
New       Price on Enquiry
127635 (4) Full qty
CH20046n
40
New       £ 0.90
13516824 (8) Full qty
CC11805n
41
STUD BOLT
13517024 (4) Full qty
42
New       £ 0.25
14432224 (2) Full qty
GE35585n
43
Nut
102741 (4) Full qty
43
Nyloc Nut 6 x 1 x 7.6mm
102948 (4) Full qty
44
WASHER
12604274 (6) Full qty
44
New       Price on Enquiry
12601274 (6) Full qty
CC11576n
45
NONRETURN VALVE
156862 (1) Full qty
46
New       Price on Enquiry
10298460 (1) Full qty
EX10416n
47
CAP
163714 (1) Full qty
48
PLATE
200898 (1) Full qty
49
SCREW -M6 X 14-
10902124 (1) Full qty
50
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
51
Screw
16043124 (1) Full qty
52
Wavy Lock Washer 8mm
127496 (1) Full qty
53
Screw
16043124 (1) Full qty
54
Wavy Lock Washer 8mm
127496 (1) Full qty
55
Bracket
145661 (1) Full qty
56
Screw
16043124 (1) Full qty
57
Wavy Lock Washer 8mm
127496 (1) Full qty
58
Bracket
10441790 (1) Full qty
59
Strap
10441990 (1) Full qty
60
Screw
10902024 (1) Full qty
61
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
