Primary Gearbox Shaft Gears And Gearbox Oil Pump

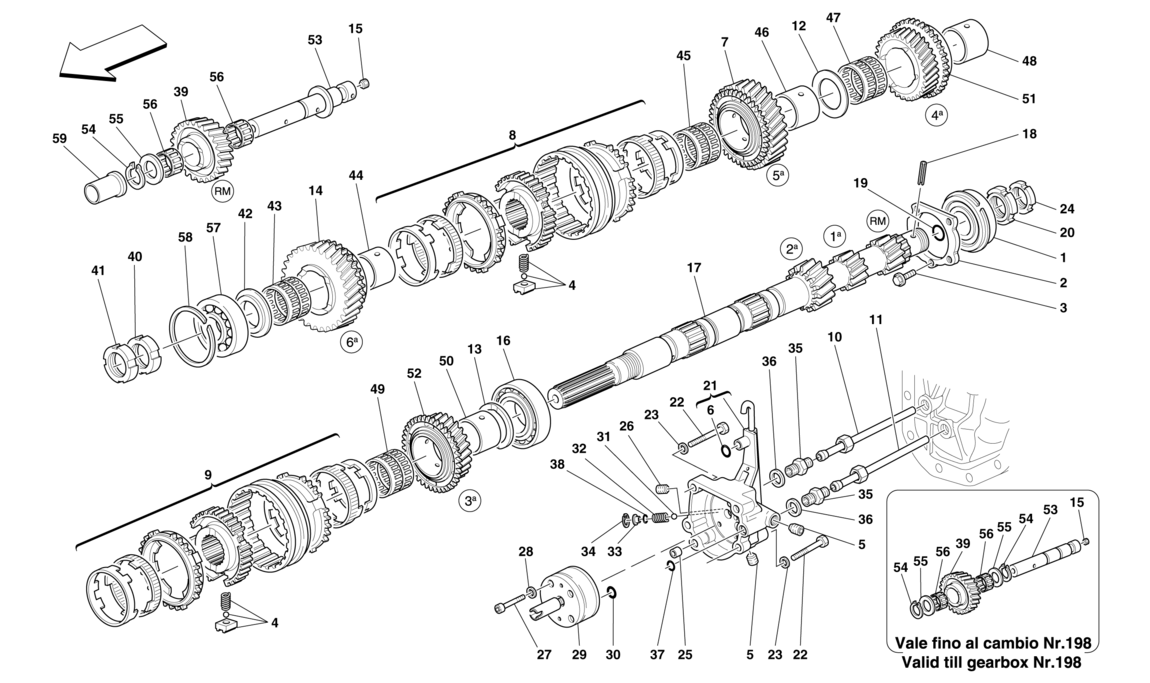

Schematic: Primary Gearbox Shaft Gears And Gearbox Oil Pump
Schematic: Primary Gearbox Shaft Gears And Gearbox Oil Pump
Loc
Part
Cond       Price
1
PRIMARY SHAFT BEARING, OIL PUM…
144502 (1) Full qty
2
MOUNTING RING
144444 (1) Full qty
3
SCREW -M8 X 20-
16287124 (1) Full qty
4
PAD FOR SYNCHRONIZER/BALL/ SPR…
194029 (2) Full qty
5
Cylinder Head Core plug 14x1.5mm
New       £ 6.59
10269550 (2) Full qty
CH20085n
6
O-RING
14452981 (1) Full qty
7
5th SPEED GEAR
197563 (1) Full qty
8
COMPLETE 5th AND 6th SPEED SYN…
189689 (1) Full qty
9
COMPLETE 3rd AND 4th SPEED SYN…
189657 (1) Full qty
10
OIL RETURN PIPE
204984 (1) Full qty
11
OIL DELIVERY PIPE
204983 (1) Full qty
12
RING
195810 (1) Full qty
13
RING
189700 (1) Full qty
14
6th SPEED GEAR
189693 (1) Full qty
15
CAP
189573 (1) Full qty
16
Bearing
131056 (1) Full qty
16
ROLLER BEARING
228055 (1) Full qty
17
PRIMARY GEARBOX SHAFT
189526 (1) Full qty
17
PRIMARY GEARBOX SHAFT
210495 (1) Full qty
18
SPRING PIN
14601270 (1) Full qty
19
O Ring Seal
New       Price on Enquiry
109724 (1) Full qty
GE00078n
20
RING NUT
163670 (1) Full qty
20
COMPLETE OIL PUMP BODY
196155 (1) Full qty
21
OIL PUMP BODY
195013 (1) Full qty
22
Screw
16044321 (4) Full qty
23
Do Not Use - See GE07667n
12601374 (4) Full qty
23
Rocker Block Wavy Washer
New       £ 0.12
12601374 (4) Full qty
CH11905n
24
RING NUT
163684 (1) Full qty
25
Dowel
102704 (1) Full qty
26
Plug
14326150 (1) Full qty
27
SCREW
14303521 (4) Full qty
28
WASHER
10571379 (4) Full qty
29
COMPLETE GEARBOX OIL PUMP
185458 (1) Full qty
30
O Ring
New       Price on Enquiry
137192 (1) Full qty
CC11696n
31
BALL
135770 (1) Full qty
32
SPRING
171889 (1) Full qty
33
CAP
162315 (1) Full qty
34
SEEGER RING
11057576 (1) Full qty
35
CONNECTOR
150577 (2) Full qty
36
Copper Washer Testarossa
New       Price on Enquiry
10257060 (2) Full qty
CC11524n
36
Temp Sender/Water Jacket/Sump Plug Washer
New       £ 0.21
10257060 (2) Full qty
SM99909n
37
O Ring
New       Price on Enquiry
137192 (1) Full qty
CC11696n
38
GASKET
14453281 (1) Full qty
39
IDLE GEAR FOR REVERSE
189570 (1) Full qty
39
REVERSE IDLER GEAR
210496 (1) Full qty
40
RING NUT
189707 (1) Full qty
41
RING NUT
189708 (1) Full qty
42
RING
189704 (1) Full qty
42
SHIM
189709 (1) Full qty
43
Double row roller cage for 5th…
109002 (1) Full qty
44
BUSHING
189705 (1) Full qty
45
Double row roller cage for 5th…
109002 (1) Full qty
46
BUSHING
195809 (1) Full qty
47
Double row roller cage for 5th…
109002 (1) Full qty
48
BUSHING
195809 (1) Full qty
49
Double row roller cage for 5th…
109002 (1) Full qty
50
BUSHING
189656 (1) Full qty
51
4th SPEED GEAR
197562 (1) Full qty
52
3rd SPEED GEAR
189659 (1) Full qty
53
PIN
189574 (1) Full qty
53
PIN
211960 (1) Full qty
54
FLEXIBLE RING
158272 (2) Full qty
54
SNAP RING
211962 (1) Full qty
55
WASHER
193891 (2) Full qty
55
WASHER
193891 (1) Full qty
55
WASHER
193892 (2) Full qty
55
WASHER
193892 (1) Full qty
55
WASHER
193893 (2) Full qty
55
WASHER
193893 (1) Full qty
56
Roller cage for reverse idle g…
104256 (2) Full qty
57
ROLLER BEARING
228054 (1) Full qty
57
Front Main & Lay Shaft Bearing 365 GTB4
New       £ 178.13
103030 (1) Full qty
GB10106n
57
Gearbox Bearing 365/Daytona
New       £ 182.66
103030 (1) Full qty
GB10307n
58
STOP RING
144511 (1) Full qty
59
SPACER BUSHING
211961 (1) Full qty
