Crankcase

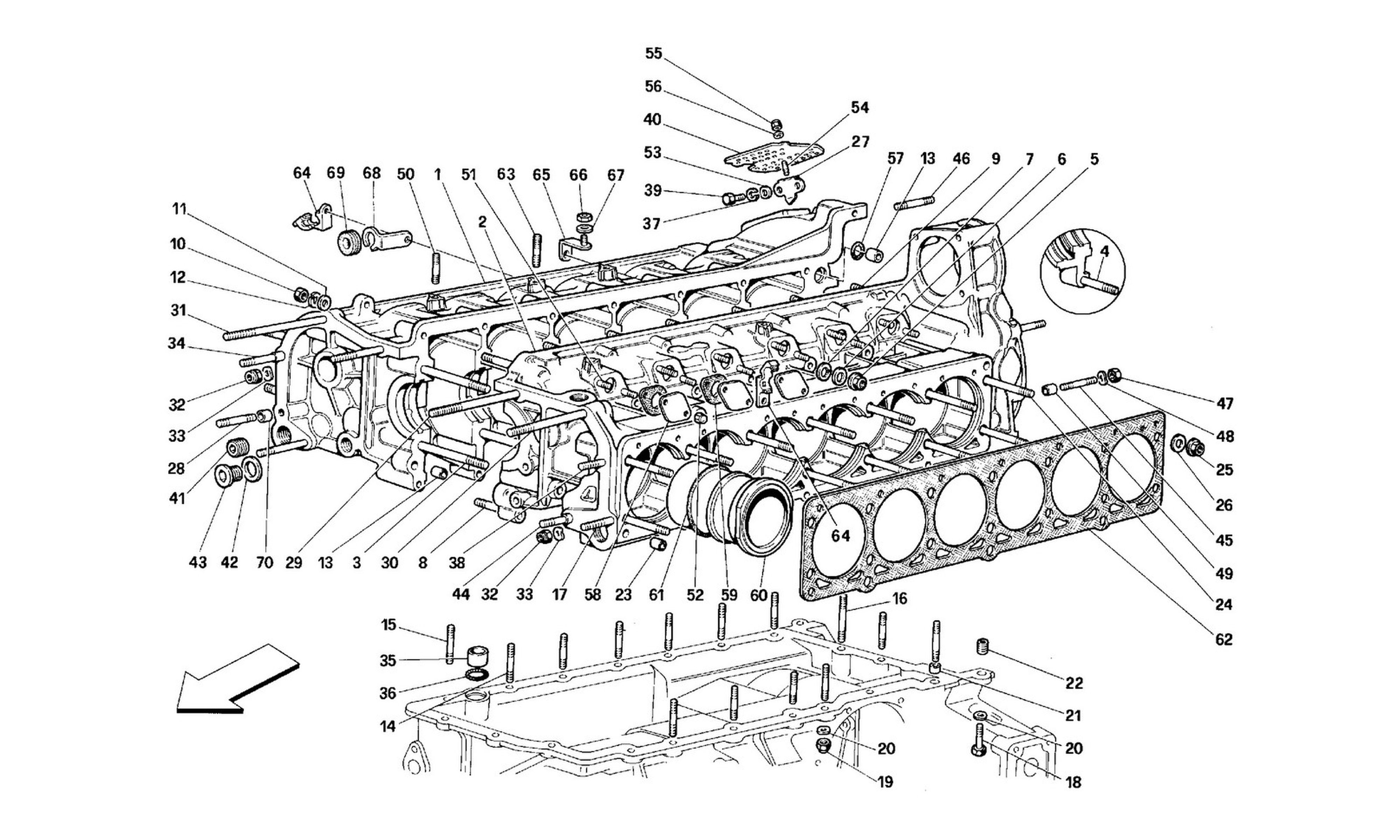

Schematic: Crankcase
Schematic: Crankcase
Loc
Part
Cond       Price
1
R.H. semi-crankcase
141384 (1) Full qty
2
L.H. semi-crankcase
143849 (1) Full qty
3
Semi-crankcase securing stud
102687 (14) Full qty
4
Semi-crankcase securing stud
109539 (1) Full qty
5
Nut
102693 (15) Full qty
6
Washer
New       Price on Enquiry
102694 (15) Full qty
CC11690n
7
Washer
New       Price on Enquiry
10517171 (15) Full qty
CC11692n
8
STUD
13546635 (3) Full qty
9
Semi-crankcase securing, stud
102689 (9) Full qty
9
Semi-crankcase securing stud
102690 (1) Full qty
10
Nut
133988 (13) Full qty
11
Washer
102695 (13) Full qty
12
Washer
127497 (13) Full qty
13
Semi-crankcase securing stud
102692 (2) Full qty
14
Stud
13449624 (12) Full qty
15
Stud
13449824 (1) Full qty
16
Stud
13450124 (2) Full qty
17
Stud
13543821 (1) Full qty
18
SCREW
11306934 (2) Full qty
19
Nut
107314 (2) Full qty
19
Nyloc Nut M10 x1.25x10
New       £ 0.65
102742 (13) Full qty
FS00203n
20
Main Bearing Wave Washer
New       £ 0.12
12601474 (18) Full qty
CC11464n
20
M10 Wavy Washer
New       Price on Enquiry
12601474 (18) Full qty
CC11574n
21
Dowel
100052 (1) Full qty
22
Threaded insert
13526070 (3) Full qty
23
Dowel
152327 (4) Full qty
24
Cyl. heads securing studs
130646 (28) Full qty
25
Cap Nut
126646 (28) Full qty
26
Washer
141064 (28) Full qty
27
Pipe securing clamp
124676 (1) Full qty
28
STUD
13543624 (1) Full qty
29
Stud
13970924 (1) Full qty
30
STUD
13970424 (1) Full qty
31
Stud
13970524 (1) Full qty
32
8x1.25 lock nut
New       Price on Enquiry
101139 (10) Full qty
GB10400n
33
Do Not Use - See GE07667n
12601374 (10) Full qty
33
Rocker Block Wavy Washer
New       £ 0.12
12601374 (10) Full qty
CH11905n
34
Stud
13544321 (3) Full qty
35
Dowel
121201 (1) Full qty
36
O Ring
New       £ 2.72
123263 (1) Full qty
CC11500n
37
Washer
127493 (2) Full qty
38
STUD
13543424 (1) Full qty
39
Screw
10977624 (2) Full qty
40
Cover for flywheel inspection …
147816 (1) Full qty
41
Plug
14326150 (1) Full qty
41
Plug for lubricating ports
10269850 (1) Full qty
41
Plug closing rollers throug ho…
14326050 (2) Full qty
42
Gasket
10264560 (2) Full qty
43
Plug
10304611 (2) Full qty
44
STUD
13543724 (1) Full qty
45
Stud bolt
13544224 (2) Full qty
46
STUD
13544124 (3) Full qty
47
Nut
16100821 (5) Full qty
49
Dowel
102704 (2) Full qty
50
Cam Cover Stud 206 246
New       £ 1.90
13541124 (2) Full qty
CH12065n
51
Stud
11500020 (24) Full qty
52
Cam Cover Domed Nut 6x10 Short
New       Price on Enquiry
100044 (24) Full qty
CH11780n
53
Washer
10519377 (2) Full qty
54
STUD
11500024 (2) Full qty
56
Washer
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
57
O-Ring Or121
New       £ 0.88
102743 (1) Full qty
GE00256n
58
Cover
102698 (12) Full qty
59
Gasket
New       Price on Enquiry
150191 (12) Full qty
CH11648n
60
Cylinder liner
138519 (12) Full qty
61
O-Ring
New       Price on Enquiry
136902 (12) Full qty
GE00334n
62
Cyl. Head Gasket Elring TR
New       Price on Enquiry
151532 (2) Full qty
CH11816n
63
STUD BOLT -M6 X 12- -Shank len…
13541324 (2) Full qty
64
Clip
129544 (4) Full qty
65
PIPE MOUNTING BRACKET -Applica…
149694 (1) Full qty
66
Nut
102741 (1) Full qty
68
Cable supporting bracket
124220 (1) Full qty
69
Ht Lead Bracket Grommet
New       £ 3.87
10396580 (1) Full qty
EL99277n
