F1 Clutch Hydraulic Control

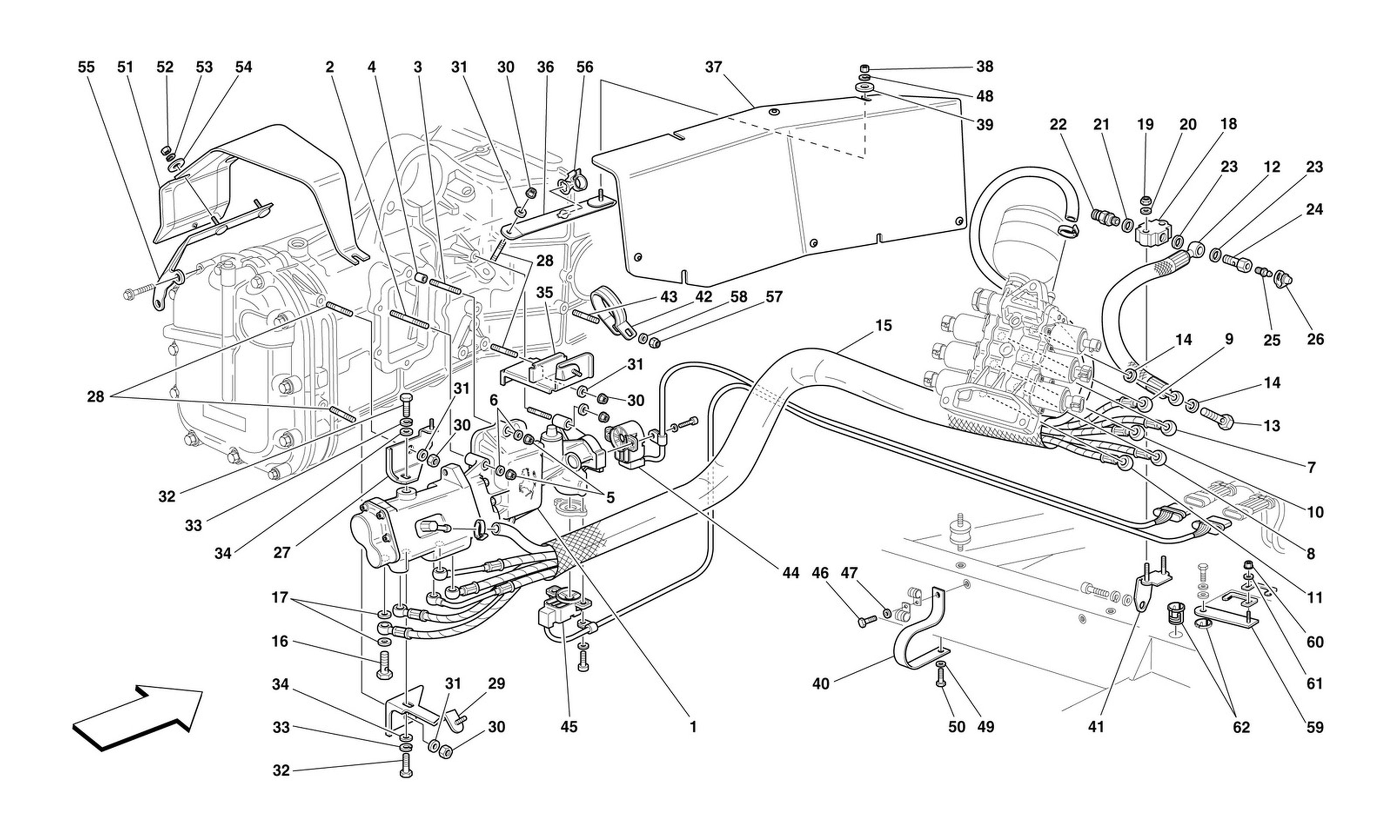

Schematic: F1 Clutch Hydraulic Control
Loc
Part
Cond       Price
1
COMPLETE HYDRAULIC ACTUATOR
181160 (1) Full qty
2
STUD
11501024 (4) Full qty
3
STUD
11500724 (2) Full qty
4
Dowel
103038 (2) Full qty
5
Nut
132877 (6) Full qty
6
Washer
12601279 (6) Full qty
7
PIPE (EV1)
179340 (1) Full qty
8
PIPE (EV2)
179342 (1) Full qty
9
PIPE (EV3)
179343 (1) Full qty
10
PIPE (EV4)
179344 (1) Full qty
11
PIPE (EV5)
179345 (1) Full qty
12
PIPE FROM PUMP TO BLOCK
179348 (1) Full qty
13
UNION
171454 (6) Full qty
14
Gasket
10261060 (12) Full qty
15
PROTECTIVE SHEATH
179346 (1) Full qty
16
UNION
171454 (5) Full qty
17
Gasket
10261060 (10) Full qty
18
BLOCK
175667 (1) Full qty
19
NUT
15896214 (2) Full qty
20
Washer
12601279 (2) Full qty
21
WASHER
171755 (1) Full qty
22
MALE COUPLING
172965 (1) Full qty
23
Gasket
10261060 (2) Full qty
24
UNION
171630 (1) Full qty
25
Bleed Screw
152954 (1) Full qty
26
PROTECTION BOOT
152955 (1) Full qty
27
UPPER ACTUATOR SUPPORT BRACKET…
174257 (1) Full qty
28
STUD
13516424 (5) Full qty
29
LOWER ACTUATOR SUPPORT BRACKET…
174260 (1) Full qty
30
NUT
16100814 (5) Full qty
31
Wavy Lock Washer 8mm
127496 (5) Full qty
32
Screw
16043124 (2) Full qty
33
Wavy Lock Washer 8mm
127496 (2) Full qty
34
Washer
10519624 (2) Full qty
35
PIPES SUPPORTING BRACKET
180807 (1) Full qty
36
SHIELD SUPPORTING BRACKET
178724 (1) Full qty
37
SHIELD FOR ACTUATOR PROTECTI…
177384 (1) Full qty
38
NUT
160472 (4) Full qty
39
WASHER
12637824 (4) Full qty
40
PIPES SUPPORTING BRACKET
180782 (2) Full qty
41
BLOCK SUPPORT BRACKET
176142 (1) Full qty
42
BRACKET WITH SHEATH
124034 (1) Full qty
43
STUD
13540724 (1) Full qty
44
COUPLING SENSOR
182156 (1) Full qty
45
COUPLING SENSOR
182156 (1) Full qty
46
SCREW -M6 X 20- -Fastening bra…
10902424 (2) Full qty
47
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
48
Washer
127493 (4) Full qty
49
New       Price on Enquiry
12644424 (2) Full qty
CS12006n
49
Used       Price on Enquiry
12644424 (2) Full qty
CS12006u
50
SCREW
10902224 (2) Full qty
51
SENSOR PROTECTION SHIELD
180744 (1) Full qty
52
Nut to fixing front and rear s…
15896470 (2) Full qty
53
Washer
127493 (2) Full qty
54
WASHER
12643724 (2) Full qty
55
SHIELD MOUNTING BRACKET
180745 (1) Full qty
56
FIXING CLIP
164565 (2) Full qty
57
Nut
102741 (1) Full qty
58
WASHER
12643724 (1) Full qty
59
BRACKET
181344 (1) Full qty
60
NUT
113647 (1) Full qty
61
WASHER
14496324 (1) Full qty
62
NUT WITH CAGE
65891200 (4) Full qty
63
OIL RECYCLE PIPE
180965 (1) Full qty
