Clutch And Controls

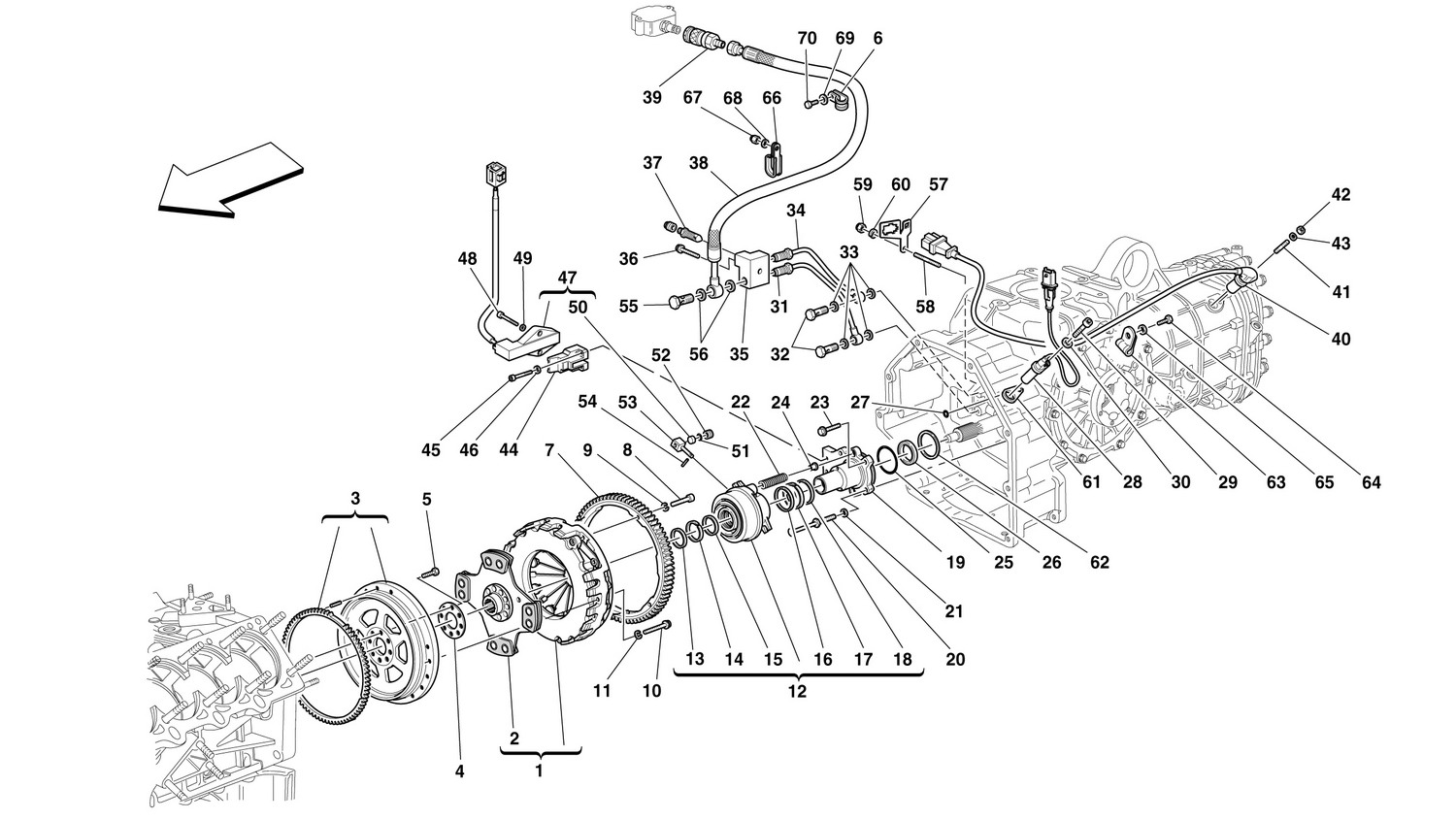

Schematic: Clutch And Controls
Loc
Part
Cond       Price
1
COMPLETE CLUTCH
178042 (1) Full qty
2
CLUTCH DISC
181315 (1) Full qty
3
Flywheel 360
181596 (1) Full qty
4
Flywheel Washer
103876 (1) Full qty
5
Flywheel Bolt
103875 (8) Full qty
6
Clamp
121834 (1) Full qty
7
RING GEAR
176917 (1) Full qty
8
SCREW
14305424 (3) Full qty
9
Clutch Bolt Wavy Washer 550/57…
127494 (3) Full qty
10
Clutch Bolt 360
178739 (15) Full qty
11
Clutch Cover Spring Washer 430…
11194379 (15) Full qty
12
COMPLETE THRUST BEARING
181827 (1) Full qty
13
New       Price on Enquiry
181837 (1) Full qty
CL11588n
14
New       Price on Enquiry
181839 (1) Full qty
FU14112n
15
New       Price on Enquiry
181838 (1) Full qty
CL11590n
16
New       Price on Enquiry
181828 (1) Full qty
CL11580n
17
RING
181829 (1) Full qty
18
New       Price on Enquiry
181836 (1) Full qty
CL11576n
19
BEARING SUPPORT FLANGE
173018 (1) Full qty
20
STUD FOR END OF STROKE
171458 (2) Full qty
21
Wavy Lock Washer 8mm
127496 (2) Full qty
22
Clutch Housing Spring
155207 (2) Full qty
23
SCREW -M8 X 25-
16287224 (2) Full qty
24
New       Price on Enquiry
155206 (2) Full qty
CL11582n
25
New       Price on Enquiry
136140 (1) Full qty
GE00330n
26
New       Price on Enquiry
172363 (1) Full qty
GE00470n
27
New       Price on Enquiry
121813 (2) Full qty
GE00074n
28
New       Price on Enquiry
164937 (2) Full qty
CL12157n
28
New       £ 49.75
182194 (2) Full qty
GB10362n
29
SCREW -M6 X 14-
14305724 (2) Full qty
30
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
31
CLUTCH CONTROL TUBE
180183 (1) Full qty
32
PIPE UNION
11903811 (2) Full qty
33
GASKET
10284460 (4) Full qty
34
BLEED SYSTEM PIPE
180184 (1) Full qty
35
BLOCK
167101 (1) Full qty
36
SCREW
16286324 (1) Full qty
37
Bleeder screw
121699 (1) Full qty
38
COMPLETE CLUTCH HOSE
174554 (1) Full qty
39
FEMALE COUPLING
172964 (1) Full qty
40
ELECTRO-MAGNETIC SENSOR
168729 (1) Full qty
41
STUD
11500124 (1) Full qty
42
NUT
10720124 (1) Full qty
43
WASHER
12604274 (1) Full qty
44
SUPPORT
178545 (1) Full qty
45
SCREW
14358524 (2) Full qty
46
WASHER
10519378 (2) Full qty
47
New       Price on Enquiry
178060 (1) Full qty
CL11892n
48
SCREW
14303324 (2) Full qty
49
WASHER
10519224 (2) Full qty
50
Clutch Position Sensor Magnet
165676 (1) Full qty
51
New       Price on Enquiry
165658 (1) Full qty
GE00350n
52
PLUG
167802 (1) Full qty
53
New       Price on Enquiry
165567 (1) Full qty
CL12112n
54
New       Price on Enquiry
14158570 (1) Full qty
CL12026n
55
UNION
171454 (1) Full qty
56
Gasket
10261060 (2) Full qty
57
SENSOR FIXING BRACKET
178389 (1) Full qty
58
STUD
13540724 (1) Full qty
59
Nut
102741 (1) Full qty
60
Washer
106850 (1) Full qty
61
THICKNESS
182896 (2) Full qty
62
Flange
173360 (2) Full qty
63
Pipe supporting backet
10440990 (1) Full qty
64
Screw
10977724 (1) Full qty
65
WASHER
12637824 (1) Full qty
66
Pipes fastening bracket
139512 (1) Full qty
67
Nut
102741 (1) Full qty
68
WASHER
14496424 (1) Full qty
69
WASHER
14496424 (1) Full qty
70
SCREW
10979424 (1) Full qty
71
Plug
10267550 (2) Full qty
