Air Injection Device

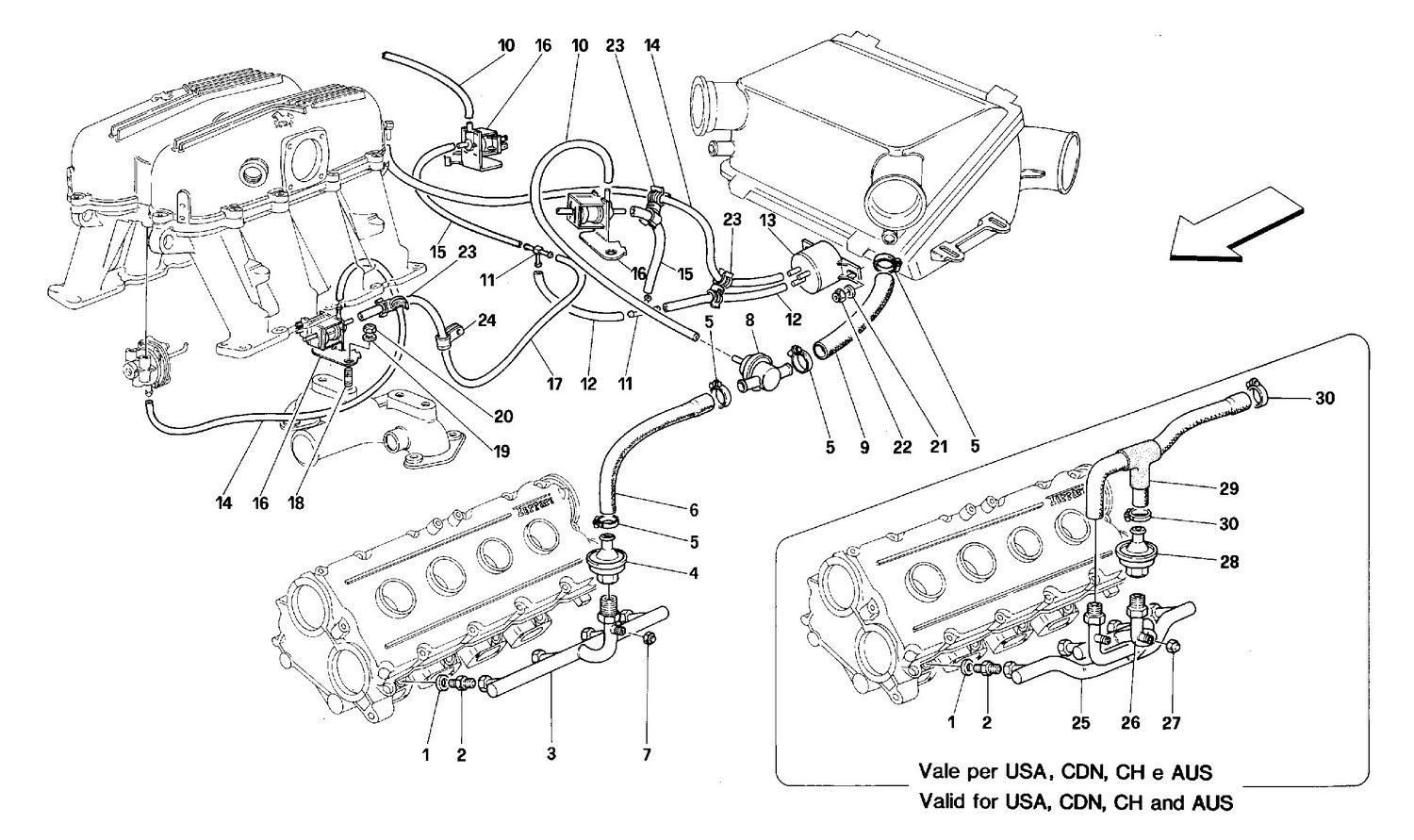

Schematic: Air Injection Device
Schematic: Air Injection Device
Loc
Part
Cond       Price
1
Copper Washer Testarossa
New       Price on Enquiry
10257060 (8) Full qty
CC11524n
1
Temp Sender/Water Jacket/Sump Plug Washer
New       £ 0.21
10257060 (8) Full qty
SM99909n
2
Union
121718 (8) Full qty
3
Air inlet pipe
141195 (2) Full qty
4
Check Valve 328/456/348
New       £ 395.00
148494 (2) Full qty
FU15816n
5
Clamp
13000490 (8) Full qty
6
Air inlet sleeve
133962 (2) Full qty
7
Nut
150595 (2) Full qty
8
Cut-off valve
147390 (2) Full qty
9
PIPE FROM CUT-OFF TO AIR INLET…
116785 (2) Full qty
10
Hose
115676 (2) Full qty
11
3 way union
121793 (2) Full qty
12
Vacuum pipe
115147 (2) Full qty
13
Depression tank
140175 (1) Full qty
14
Hose
115676 (2) Full qty
15
Pipe on solenoid valve
141235 (2) Full qty
16
Electrovalve
111704 (3) Full qty
17
RUBBER PIPE -Applicable from A…
115411 (1) Full qty
18
Stud for cover of flywheel ins…
11500021 (1) Full qty
19
Washer
14496401 (1) Full qty
20
Nut
12575411 (1) Full qty
21
Washer
12639701 (2) Full qty
22
Nut
12575411 (2) Full qty
23
Spring
145702 (3) Full qty
24
Clamp ? 8 mm
10418301 (4) Full qty
25
L.H. front-rear air inlet pipe…
147180 (1) Full qty
25
R.H. front-rear air inlet pipe…
147178 (1) Full qty
26
L.H. central air inlet pipe
147181 (1) Full qty
26
R.H. central air inlet pipe
147179 (1) Full qty
27
Nut
150595 (4) Full qty
28
Check Valve 328/456/348
New       £ 395.00
148494 (4) Full qty
FU15816n
29
Air inlet sleeve
147360 (2) Full qty
30
Clamp
13000490 (6) Full qty
