Oil Sump - Gearbox and Differential

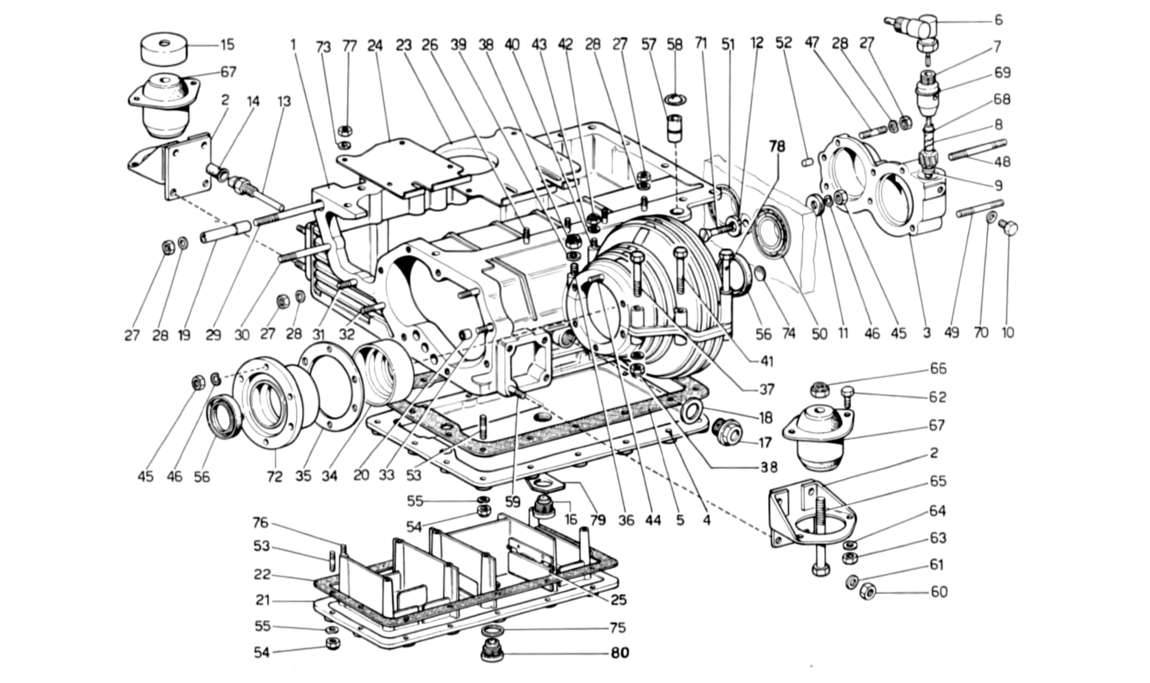

Schematic: Oil Sump - Gearbox and Differential
Loc
Part
Cond       Price
1
GEARBOX DIFFERENTIAL
524169 (1) Full qty
1
GEARBOX DIFFERENTIAL
524588 (1) Full qty
1
GEARBOX DIFFERENTIAL COMPLETE
525186 (1) Full qty
1
GEARBOX DIFFERENTIAL
524463 (1) Full qty
2
SUPPORT
523884 (4) Full qty
3
COVER
524589 (1) Full qty
3
COVER
523885 (1) Full qty
3
Cover
105673 (1) Full qty
4
Cover
104194 (1) Full qty
5
New       Price on Enquiry
104196 (1) Full qty
GB10116n
5
New       Price on Enquiry
104196 (1) Full qty
GB10116n
5
Gearbox Sump Gasket
147675 (1) Full qty
5
Gearbox Sump Gasket
147675 (1) Full qty
6
New       £ 1275.00
101353 (1) Full qty
GB00076n
6
Used       £ 664.40
101353 (1) Full qty
GB00076u
6
New       £ 474.03
101353 (1) Full qty
GB00091n
6
New       Price on Enquiry
101353 (1) Full qty
GB10262n
7
Corpo rinvio contachilometri
104288 (1) Full qty
7
DRIVE BOX
523921 (1) Full qty
8
SPEEDO DRIVE GEAR (RATIO 8/15)…
523922 (1) Full qty
8
SPEEDO DRIVE GEAR (RATIO 8/15)…
524373 (1) Full qty
9
Bottone reggispinta
105674 (1) Full qty
9
THRUST BUTTON
101354 (1) Full qty
10
Bolt
101349 (1) Full qty
11
New       Price on Enquiry
104198 (1) Full qty
GB00001n
12
Washer
104199 (1) Full qty
13
New       £ 64.90
107576 (1) Full qty
SU11612n
14
BUSH
524545 (1) Full qty
15
BUSH
523127 (1) Full qty
16
New       Price on Enquiry
104280 (1) Full qty
GB10488n
17
New       £ 41.75
104282 (1) Full qty
AX22311n
18
GASKET
104283 (1) Full qty
19
CENTERING DOWEL
523978 (1) Full qty
20
Dowel
102704 (1) Full qty
21
COVER
524122 (1) Full qty
22
Engine Oil Pan Gasket 308/328
147676 (1) Full qty
22
Engine Oil Pan Gasket 308/328
147676 (1) Full qty
23
FRONT SHIELD
524229 (1) Full qty
24
REAR SHIELD
524230 (1) Full qty
25
BEARING
9111457 (2) Full qty
26
THREADED STUD
13516920 (4) Full qty
27
Nut
16100811 (22) Full qty
28
Washer
11198071 (22) Full qty
29
THREADED STUD
8X110P1 (1) Full qty
30
THREADED STUD
95920426 (1) Full qty
31
THREADED STUD
13517420 (1) Full qty
32
Prigioniero
13517220 (8) Full qty
33
THREADED STUD
13517320 (1) Full qty
34
Busta per cuscinetto
104295 (1) Full qty
35
SPACER MM. 2,4
580889 (1) Full qty
35
SPACER MM. 1,8
580887 (1) Full qty
35
SPACER MM. 2,2
580888 (1) Full qty
35
New       Price on Enquiry
106086 (1) Full qty
GB00039n
35
Centre Ring
106086 (1) Full qty
36
THREADED STUD
13450420 (2) Full qty
37
Bolt
15972021 (2) Full qty
38
Nut
12574511 (4) Full qty
39
Washer
12601471 (4) Full qty
40
THREADED STUD
13517820 (1) Full qty
41
BOLT
11102521 (1) Full qty
42
Nut
16104111 (4) Full qty
43
Washer
103180 (4) Full qty
44
THREADED STUD
99920408 (6) Full qty
45
Nut
16100811 (7) Full qty
46
Washer
10516670 (7) Full qty
47
Prigioniero
13517220 (4) Full qty
48
THREADED STUD
13517820 (1) Full qty
49
New       £ 12.07
13517620 (1) Full qty
GB10574n
50
New       Price on Enquiry
95890505 (1) Full qty
GB10258n
51
New       Price on Enquiry
95893020 (1) Full qty
GB10168n
52
Dowel
102704 (1) Full qty
53
THREADED STUD
95920109 (30) Full qty
53
New       £ 1.90
13541124 (30) Full qty
CH12065n
54
Nut
New       Price on Enquiry
15896211 (30) Full qty
CH11996n
55
New       Price on Enquiry
11197774 (30) Full qty
GE35524n
56
New       Price on Enquiry
125078 (2) Full qty
GE00638n
57
Dowel
103838 (2) Full qty
58
Cir Clip
103839 (2) Full qty
59
THREADED STUD
13449520 (16) Full qty
60
Nut
12164711 (16) Full qty
61
Washer
10516870 (16) Full qty
62
Bolt
15970621 (8) Full qty
63
Nut
12164711 (8) Full qty
64
Washer
10516870 (8) Full qty
65
Bolt
100798 (4) Full qty
65
BOLT
15541821 (4) Full qty
66
Selflocking nut
16105121 (4) Full qty
67
New       Price on Enquiry
524524 (4) Full qty
CC11538n
68
New       Price on Enquiry
95860003 (1) Full qty
GB10124n
68
New       Price on Enquiry
104103 (1) Full qty
GE00416n
69
New       Price on Enquiry
95860045 (1) Full qty
CL11918n
70
Washer
103180 (1) Full qty
71
SCREW
95940234 (1) Full qty
72
Cover
104294 (1) Full qty
73
Sheared washer
11195470 (8) Full qty
74
New       Price on Enquiry
10158801 (1) Full qty
CH11920n
75
New       £ 0.30
10263460 (1) Full qty
CC11530n
76
THREADED STUD
95920002 (8) Full qty
77
NUT
95900718 (8) Full qty
78
Starter securing screw
104189 (1) Full qty
79
PLATE
524500 (1) Full qty
80
Cap
10275040 (1) Full qty
80
Oil level inspection plug
10275001 (1) Full qty
