Dashboard (For U.S. Version My 1987)

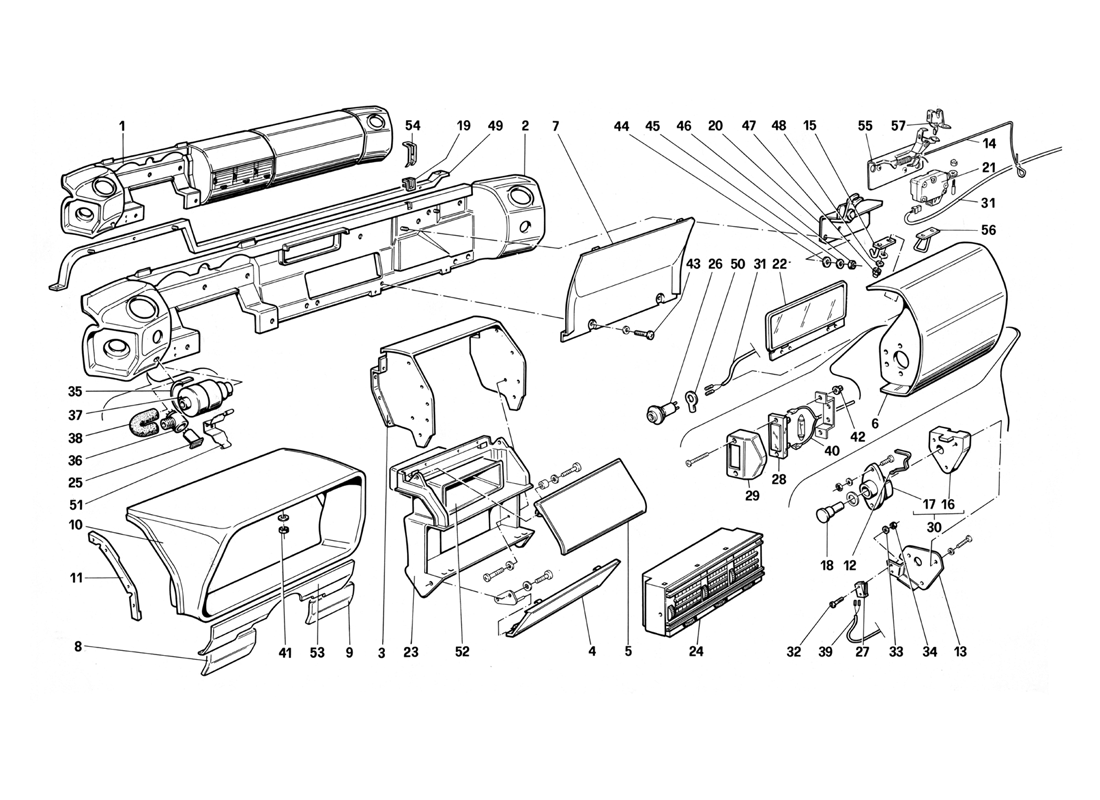

Schematic:  Dashboard (For U.S. Version My 1987)
Loc
Part
Cond       Price
1
LHD dash board assemblv
61562100 (1) Full qty
1
LHD dash board assembly
61530000 (1) Full qty
1
LHD dash board assembly
61520300 (1) Full qty
1
RftD dash board assembly
61520400 (1) Full qty
1
RHD dash board assembly
61562500 (1) Full qty
1
RHD dash board assembly
61562300 (1) Full qty
1
RHD dash board assembly
61562200 (1) Full qty
1
RHD dash board assembly
61530200 (1) Full qty
1
RHD dash board assembly
61520500 (1) Full qty
1
RHD dash board assembly
61530100 (1) Full qty
1
Dash board assembly
61553700 (1) Full qty
1
Dash board assembly
61553600 (1) Full qty
1
RHD dash board assembly
61562600 (1) Full qty
1
LHD dash board assembly
61562400 (1) Full qty
2
Dash board
61520700 (1) Full qty
2
Dash board
61520600 (1) Full qty
2
Dash board
61562700 (1) Full qty
2
Dash board frame
61553800 (1) Full qty
2
Dash board
61562800 (1) Full qty
3
Dash board central section
61520900 (1) Full qty
3
Dash board central section
61520800 (1) Full qty
4
Dash board central panel
61521000 (1) Full qty
4
Dash board central panel
61545200 (1) Full qty
4
Dash board central panel
61553900 (1) Full qty
5
Dash board central cover
61521100 (1) Full qty
6
Dash board box
61521200 (1) Full qty
6
Dash board box
61554100 (1) Full qty
7
Dash board box panel
61521400 (1) Full qty
8
Steering column cover
61554900 (1) Full qty
8
Small right cover
61521500 (1) Full qty
9
Small left cover
61521600 (1) Full qty
10
Housing instruments
61558900 (1) Full qty
10
Housing instruments
61558900 (1) Full qty
10
Housing instruments
61559000 (1) Full qty
10
Housing instruments
61521700 (1) Full qty
11
Left angle piece
61521900 (1) Full qty
11
Right angle piece
61521800 (1) Full qty
12
Clip
61522000 (2) Full qty
13
Bracket
61554500 (1) Full qty
13
Bracket
61522100 (1) Full qty
13
Bracket
61534600 (1) Full qty
14
Safety cable
61522200 (1) Full qty
15
Lock striker
61522300 (1) Full qty
15
Lock striker
61554600 (1) Full qty
16
Left fixed hinge
61522500 (1) Full qty
16
Right fixed hinge
61522400 (1) Full qty
17
Left mobile hinge
61522700 (1) Full qty
17
Right mobile hinge
61522600 (1) Full qty
18
Pin
61522800 (2) Full qty
19
Frame
61522900 (1) Full qty
19
Frame
61554700 (1) Full qty
20
Lock bracket
61523000 (1) Full qty
21
Lock magnet
61523100 (1) Full qty
22
Courtesy mirror
61523200 (1) Full qty
23
Frame work
61523400 (1) Full qty
23
Frame work
61523300 (1) Full qty
23
Frame work
61523300 (1) Full qty
24
Central air outlet
61523500 (1) Full qty
25
Sensor for internal temperatur…
61079100 (1) Full qty
26
Socket
61523600 (1) Full qty
27
Switch
61523700 (1) Full qty
28
Dash board box lamp
61647200 (2) Full qty
29
Dash board box lamp frame
61523800 (2) Full qty
30
Left dashboard box hinge
61524000 (1) Full qty
30
Right dashboard box hinge
61523900 (1) Full qty
31
Socket cables
124410 (1) Full qty
32
Screw
61524100 (2) Full qty
33
Washer
61524200 (2) Full qty
34
Nut
61524300 (2) Full qty
35
New       Price on Enquiry
120065 (1) Full qty
BS00330n
36
Box sensor
61079200 (1) Full qty
37
Suction fan for sensor
61079300 (1) Full qty
38
Tube from suction fan to senso…
124039 (1) Full qty
39
Switch cable
124409 (1) Full qty
40
Lamp cables
124411 (1) Full qty
41
Nut
14084111 (4) Full qty
42
Female screw
12611342 (4) Full qty
44
Flat Washer
12643701 (2) Full qty
46
Nut
New       Price on Enquiry
15896211 (2) Full qty
CH11996n
48
Washer
10519201 (4) Full qty
50
Negative terminal
61524800 (1) Full qty
52
Radio box
61541600 (1) Full qty
54
Box cover
61554000 (1) Full qty
56
Glove box lock
61545600 (1) Full qty
