Door

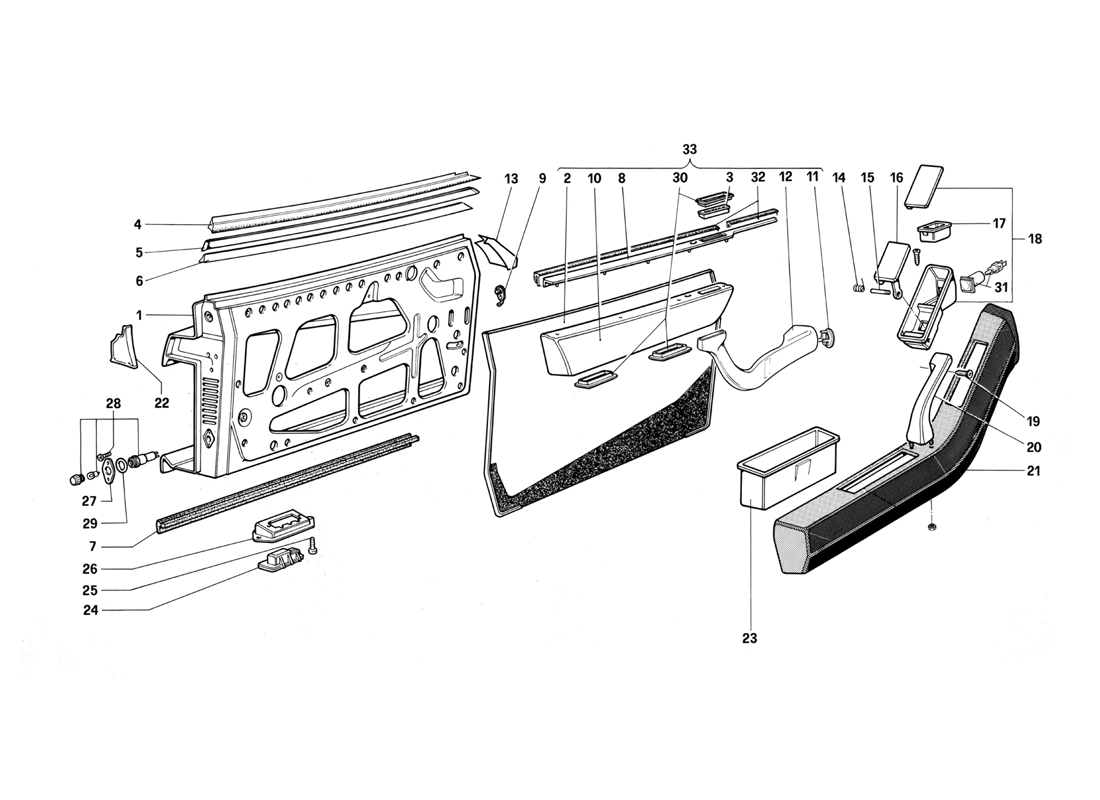

Schematic: Door
Loc
Part
Cond       Price
1
Left door
61540500 (1) Full qty
1
Right door
61540600 (1) Full qty
1
Right door
61501600 (1) Full qty
1
Left door
61501700 (1) Full qty
2
Left panel
61502100 (1) Full qty
2
Right panel
61502000 (1) Full qty
3
Right air tube
61502200 (1) Full qty
3
Left air tube
61502300 (1) Full qty
4
Right gasket
61543700 (1) Full qty
4
Left gasket
61543800 (1) Full qty
5
Right outer moulding
61539300 (1) Full qty
5
Left outer moulding
61539200 (1) Full qty
6
RH run channel
61543500 (1) Full qty
6
LH run channel
61543600 (1) Full qty
7
Underdoor gasket
61539600 (2) Full qty
7
Underdoor gasket
61503000 (2) Full qty
8
Right inner moulding
61559900 (1) Full qty
8
Right inner moulding
61503100 (1) Full qty
8
Left inner moulding
61503200 (1) Full qty
8
Left inner moulding
61560000 (1) Full qty
9
Switch
61503300 (1) Full qty
10
Upper covering for right panel…
61503400 (1) Full qty
10
Upper covering for left panel
61503500 (1) Full qty
11
Frame for gasket
61503600 (2) Full qty
12
R.H. air tube
61503700 (1) Full qty
12
L.H. air tube
61503800 (1) Full qty
13
Right gasket for door front si…
61505700 (1) Full qty
13
Left gasket for door front sid…
61505800 (1) Full qty
14
Right spring
61504300 (1) Full qty
14
Left spring
61504400 (1) Full qty
15
Pin
61504500 (2) Full qty
16
Right handle
61504600 (1) Full qty
16
Left handle
61504700 (1) Full qty
17
As tray box
61504800 (2) Full qty
18
Left ash tray
61505000 (1) Full qty
18
Right ash tray
61504900 (1) Full qty
19
Screw
15672801 (2) Full qty
20
Left inner handle
61505200 (1) Full qty
20
Right inner handle
61505100 (1) Full qty
21
Left armrest
61505400 (1) Full qty
21
Right armrest
61505300 (1) Full qty
22
Right gasket for door rear sid…
61505900 (1) Full qty
22
Left gasket for door rear side…
61506000 (1) Full qty
23
Door glove box
61505600 (2) Full qty
24
Courtesy lamp
60842100 (2) Full qty
25
Screw
17668201 (4) Full qty
26
Frame
60842000 (2) Full qty
27
Gasket
61647000 (2) Full qty
28
Open door light
102248 (2) Full qty
29
Frame
102249 (2) Full qty
30
Frame for air outlet
61533100 (6) Full qty
31
Open door marker
61535800 (2) Full qty
32
Inner gasket
61557800 (2) Full qty
33
Right panel complete
61501800 (1) Full qty
33
Right panel complete
61560100 (1) Full qty
33
Left panel complete
61560200 (1) Full qty
33
Left panel complete
61501900 (1) Full qty
