Front Hood

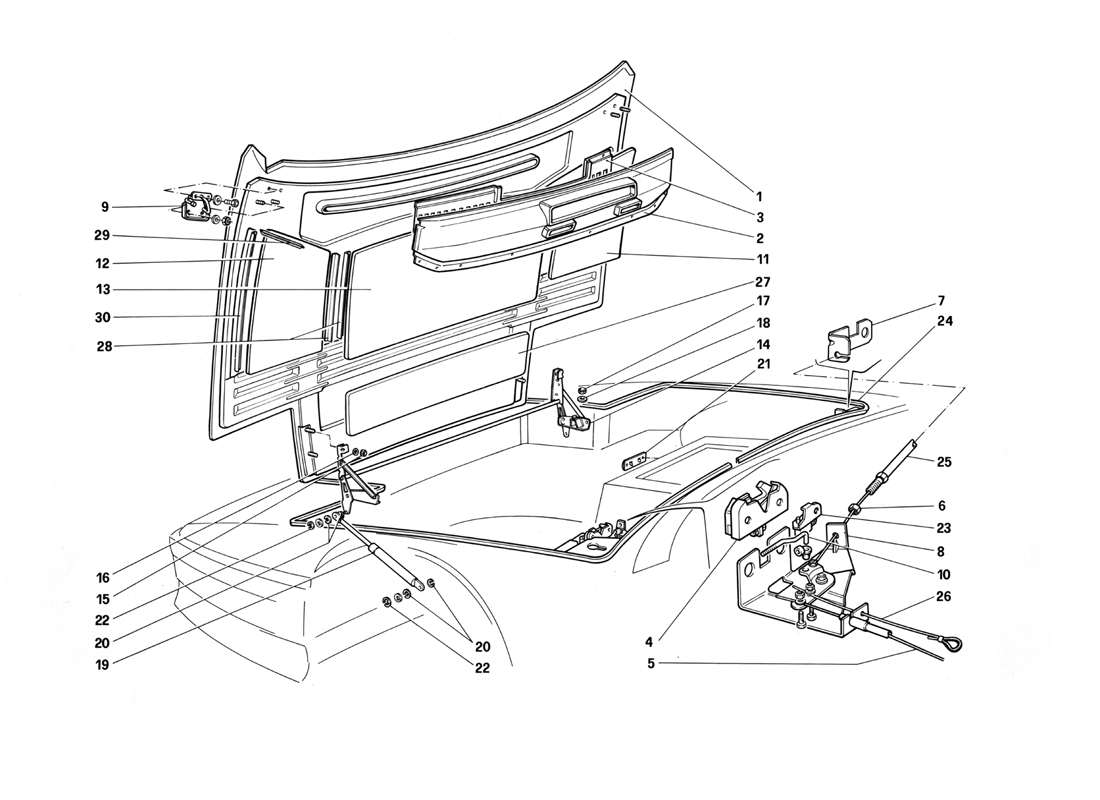

Schematic: Front Hood
Loc
Part
Cond       Price
1
Front bonnet RHD
61495400 (1) Full qty
1
Front bonnet LHD
61495500 (1) Full qty
2
Water shield panel, LHD
61544000 (1) Full qty
2
Water shield panel, RHD
61529800 (1) Full qty
2
Water shield panel, LHD
61495600 (1) Full qty
2
Water shield panel, RHD
61546000 (1) Full qty
3
Grill
61558500 (1) Full qty
3
Grill
61495700 (1) Full qty
4
Lock
61497600 (2) Full qty
5
New       Price on Enquiry
61497300 (1) Full qty
BW10138n
6
Nut
14084211 (2) Full qty
7
R.H. sheath support plate
61495900 (1) Full qty
8
L.H. sheath support plate
61496000 (1) Full qty
9
Lock striker left
61496100 (1) Full qty
9
Lock striker right
61541400 (1) Full qty
10
L.H. striker rod (LHD)
61496200 (1) Full qty
10
R.H. striker rod (RHD)
61532900 (1) Full qty
11
Right sound insulation
61496300 (1) Full qty
12
Left sound insulation
61496500 (1) Full qty
13
Central sound insulation
61548700 (1) Full qty
14
Complete hinge
61496600 (1) Full qty
15
Nut
14084211 (4) Full qty
16
Flat Washer
12643701 (4) Full qty
17
Nut
14084411 (4) Full qty
18
Washer
12647001 (4) Full qty
19
New       Price on Enquiry
61496700 (2) Full qty
BW10080n
20
Washer
12601371 (8) Full qty
21
Dash board box lamp
61647200 (1) Full qty
22
Spring ring
11087976 (4) Full qty
23
Warning light control
61496900 (2) Full qty
24
Bonnet gasket
61497000 (1) Full qty
25
Right lock cable
61497100 (1) Full qty
26
Emergency cable
61497200 (1) Full qty
27
Sound insulation, central lowe…
61548800 (1) Full qty
28
Central angular (1 st type)
61563400 (4) Full qty
29
Angular, LH upper (1st type)
61563600 (1) Full qty
29
Angular, RH upper (1st type)
61563500 (1) Full qty
30
LH angular
61563300 (1) Full qty
30
RH angular
61563200 (1) Full qty
