Fuel Tanks - Fasteners And Guards

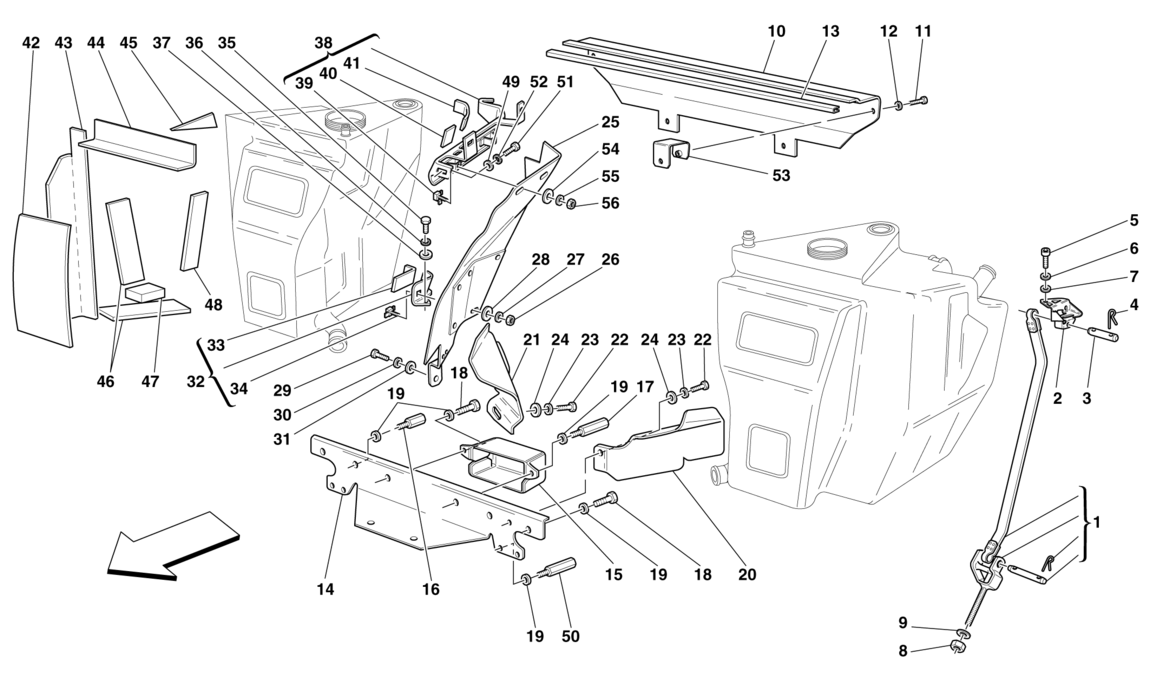

Schematic: Fuel Tanks - Fasteners And Guards
Loc
Part
Cond       Price
1
TANK FASTENING STRAP
180348 (2) Full qty
2
RH. BRACKET
174445 (1) Full qty
2
LH. BRACKET
175768 (1) Full qty
3
Pin
103447 (2) Full qty
4
Split pin
10796440 (4) Full qty
5
SCREW
14305324 (6) Full qty
6
New       Price on Enquiry
12601274 (6) Full qty
CC11576n
7
Washer 1.6mm 6.4x11.95x1.6
10519424 (6) Full qty
8
NUT
104030 (2) Full qty
9
WASHER
14496524 (2) Full qty
10
SEPARATOR HEAT SHIELD
238410 (1) Full qty
11
SCREW -M5 X 16-
16285127 (4) Full qty
12
Washer
12638177 (4) Full qty
13
RUBBER GASKET
190115 (1) Full qty
14
GUARD BRACKET
198222 (1) Full qty
15
CHASSIS
186045 (1) Full qty
16
STUD BOLT -Not for GD-
178772 (3) Full qty
17
STUD BOLT
182363 (1) Full qty
18
Screw
10902421 (7) Full qty
19
WASHER
13550221 (10) Full qty
20
LH. LOWER HEAT SHIELD
224379 (1) Full qty
21
RH. LOWER HEAT SHIELD
224381 (1) Full qty
22
SCREW -M6 X 20- -Fastening bra…
10902424 (4) Full qty
23
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
24
WASHER
14499324 (4) Full qty
25
RH. HEAT SHIELD
224387 (1) Full qty
25
RH. HEAT SHIELD
243007 (1) Full qty
25
LH. HEAT SHIELD
224386 (1) Full qty
25
LH HEAT SHIELD
243006 (1) Full qty
26
NUT
15896214 (2) Full qty
27
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
28
New       Price on Enquiry
12644424 (2) Full qty
CS12006n
28
Used       Price on Enquiry
12644424 (2) Full qty
CS12006u
29
SCREW -M6 X 20- -Fastening bra…
10902424 (4) Full qty
30
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
31
WASHER
14499324 (4) Full qty
32
LOWER RH. TANK FASTENER BRACKE…
177775 (1) Full qty
32
LOWER LH. TANK FASTENER BRACKE…
177774 (1) Full qty
33
RH. RUBBER SPACER
177773 (1) Full qty
33
LH. RUBBER SPACER
177772 (1) Full qty
34
Screw
14664790 (2) Full qty
35
SCREW -M6 X 20- -Fastening bra…
10902424 (4) Full qty
36
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
37
WASHER
12647624 (4) Full qty
38
RH. TANK FASTENER BRACKET
177770 (1) Full qty
38
LH. TANK FASTENER BRACKET
177771 (1) Full qty
38
RH. TANK FASTENER BRACKET.
183186 (1) Full qty
38
LH. TANK FASTENER BRACKET.
216425 (1) Full qty
39
Screw
14664790 (4) Full qty
40
RUBBER SHIM
177769 (4) Full qty
41
RUBBER SHIM
177768 (2) Full qty
42
RUBBER SHIM
177752 (2) Full qty
43
RH. RUBBER SPACER
181191 (1) Full qty
43
LH. RUBBER SPACER
181192 (1) Full qty
44
RUBBER THICKNESS
181377 (2) Full qty
45
RH. RUBBER SPACER.
177753 (1) Full qty
45
LH. RUBBER SPACER.
177763 (1) Full qty
46
RUBBER THICKNESS FOR PIPE
177749 (4) Full qty
47
RUBBER SHIM
177748 (2) Full qty
48
PLUG
159147 (2) Full qty
49
WASHER
12647624 (2) Full qty
50
STUD BOLT
182363 (1) Full qty
51
SCREW -M6 X 20- -Fastening bra…
10902424 (2) Full qty
52
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
53
RH BRACKET
231370 (1) Full qty
53
LH BRACKET
231369 (1) Full qty
54
Washer 1.6mm 6.4x11.95x1.6
10519424 (2) Full qty
55
New       Price on Enquiry
12644424 (2) Full qty
CS12006n
55
Used       Price on Enquiry
12644424 (2) Full qty
CS12006u
56
Nut
102741 (2) Full qty
