Fuel Tanks And Filler Neck -Applicable For Spider 16M-

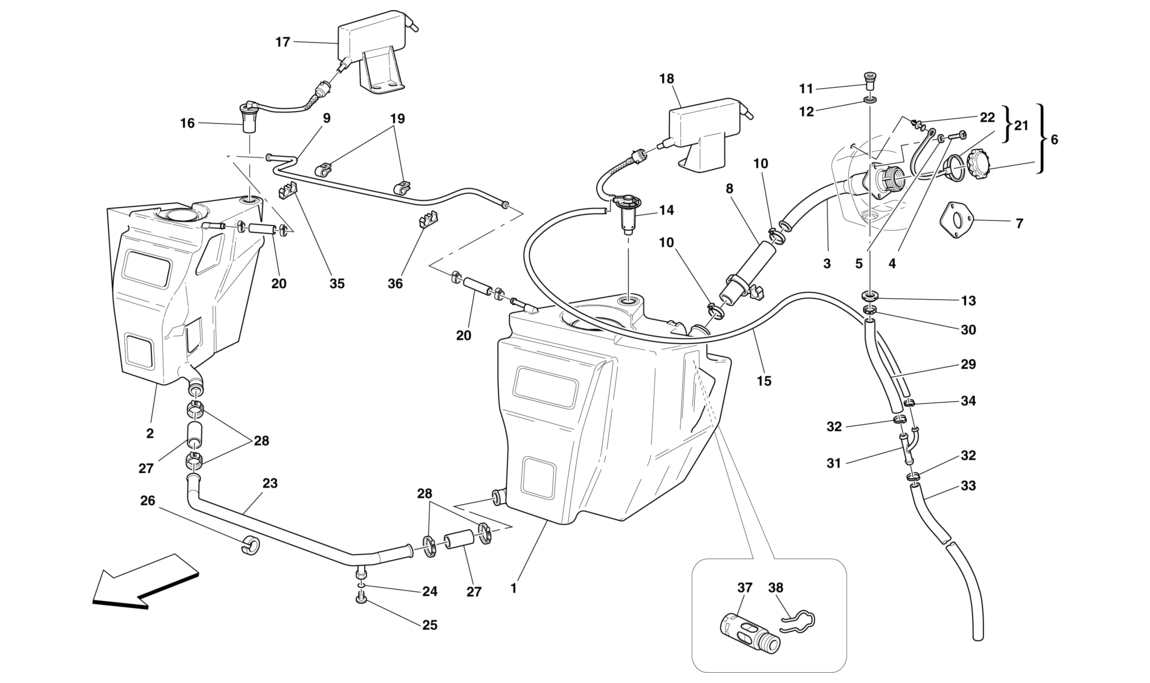

Schematic: Fuel Tanks And Filler Neck -Applicable For Spider 16M-
Loc
Part
Cond       Price
1
LH. FUEL TANK
194347 (1) Full qty
1
LH. FUEL TANK
248141 (1) Full qty
2
RH. FUEL TANK
194346 (1) Full qty
3
PIPE UNION
203516 (1) Full qty
4
SCREW
64686900 (3) Full qty
5
New       Price on Enquiry
12601274 (3) Full qty
CC11576n
6
TANK CAP
190469 (1) Full qty
7
GASKET
235256 (1) Full qty
8
FUEL FILLER NECK CONNECTOR PIP…
232567 (1) Full qty
9
TANK AIR BUBBLE CONNECTOR PIPE…
180985 (1) Full qty
10
COLLAR FOR SLEEVE
170127 (2) Full qty
11
SLEEVE
64872000 (1) Full qty
12
GASKET
65064500 (1) Full qty
13
New       £ 6.33
104919 (1) Full qty
CH11979n
13
New       £ 6.33
104919 (1) Full qty
TC14172n
14
VALVE WITH LH. PIPE
243914 (1) Full qty
15
RUBBER PIPE
211283 (1) Full qty
16
VALVE WITH RH. PIPE
243915 (1) Full qty
17
RH. VAPOUR SEPARATOR
244884 (1) Full qty
18
LH. VAPOUR SEPARATOR
191079 (1) Full qty
19
CLIP
232649 (2) Full qty
20
CONNECTOR PIPE
181024 (2) Full qty
21
RING
196949 (1) Full qty
22
RETAINER FOR STRING
186172 (1) Full qty
23
TANK CONNECTOR PIPE
224755 (1) Full qty
24
CLIP
180968 (1) Full qty
25
CLIP
180969 (1) Full qty
26
RUBBER SHIM
177437 (6) Full qty
27
RUBBER PIPE
241179 (2) Full qty
28
SCREW COLLAR
180957 (4) Full qty
29
TRAY-TO-3-WAY TUBE
213294 (1) Full qty
30
RING CLAMP
177553 (1) Full qty
31
3-WAY UNION
195439 (1) Full qty
32
RING CLAMP
178052 (2) Full qty
33
3-WAY-TO-REAR TUBE
213295 (1) Full qty
34
COLLAR -D. 15.7-
13432070 (1) Full qty
35
CLIP
180968 (1) Full qty
36
CLIP
180969 (1) Full qty
37
STOP VALVE
181929 (1) Full qty
37
ANTI SPIT-BACK VALVE
237407 (1) Full qty
38
CLIP
181930 (1) Full qty
