Fuel Pump And Pipes

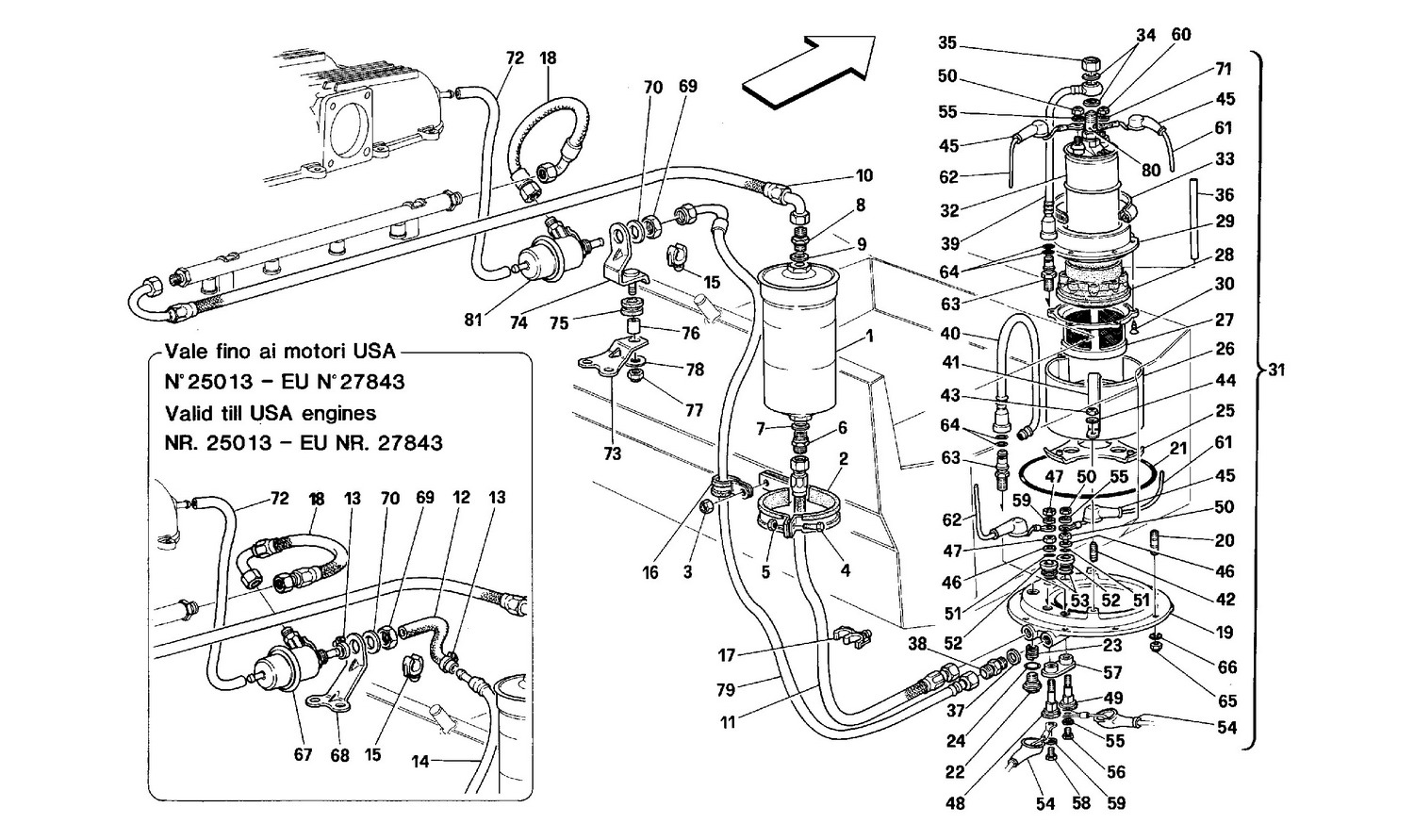

Schematic: Fuel Pump And Pipes
Schematic: Fuel Pump And Pipes
Loc
Part
Cond       Price
1
Fuel Filter 1987+ Testarossa
New       £ 32.95
117792 (2) Full qty
FU14008n
2
Clamp
126352 (2) Full qty
3
Nut
16104411 (2) Full qty
4
Screw
10902324 (2) Full qty
5
Nut
12575411 (2) Full qty
6
Union on feeding side
109889 (2) Full qty
7
Washer 14x20x1.5mm
New       £ 1.25
10280060 (2) Full qty
FU00140n
8
Union on delivery side
109797 (2) Full qty
9
Gasket
113910 (2) Full qty
10
Fuel pipe from R.H. filter to …
143788 (1) Full qty
10
Fuel pipe from L.H. filter to …
143789 (1) Full qty
10
Fuel pipe from R.H. filter to …
143784 (1) Full qty
10
Fuel pipe from L.H. filter to …
143785 (1) Full qty
11
Fuel pipe from pump to filter …
143790 (2) Full qty
11
Fuel pipe from pump to filter …
143792 (2) Full qty
12
Sleeve
139932 (2) Full qty
13
Clamp
13000190 (4) Full qty
14
Fuel pipe from pressure adjust…
139472 (2) Full qty
15
Spring
14574287 (2) Full qty
16
Bracket
10450290 (2) Full qty
17
Spring
139966 (2) Full qty
18
Fuel pipe from flute to pressu…
149812 (2) Full qty
19
Fuel pump cover
139454 (2) Full qty
20
Stud
11500221 (16) Full qty
21
O Ring 348
New       Price on Enquiry
138453 (2) Full qty
FT10034n
22
Cap
134713 (2) Full qty
23
Heli-coil
103388 (2) Full qty
24
O-Ring
New       Price on Enquiry
134233 (2) Full qty
GE00328n
25
Anti-Vibrations 348
New       Price on Enquiry
126807 (2) Full qty
FT10030n
26
Fuel collection chamber
126806 (2) Full qty
27
Fuel pump filter 550
126808 (2) Full qty
28
Pump Gasket 348
New       Price on Enquiry
126809 (2) Full qty
FT10032n
29
Chamber filter cover
126810 (2) Full qty
30
Screw
15671101 (12) Full qty
31
Complete fuel pump
146663 (2) Full qty
32
Fuel Pump
140317 (2) Full qty
33
Clamp
10301890 (2) Full qty
34
Fuel Pump Washer 400/365/Testarossa
New       £ 1.28
11270160 (4) Full qty
FU15801n
35
Drain plug
10183217 (2) Full qty
36
Exhaust pipe
139205 (2) Full qty
37
Gasket
113910 (4) Full qty
38
Union on delivery side
109797 (4) Full qty
39
Feeding pipe from pump to cove…
133967 (2) Full qty
40
Recover pipe from cover to cha…
133968 (2) Full qty
41
Bracket
137577 (4) Full qty
42
Stud bolt
11000921 (4) Full qty
43
Nut
13677911 (4) Full qty
44
Washer
10730021 (4) Full qty
45
Cap
130146 (8) Full qty
46
Washer
10519401 (4) Full qty
47
Nut
New       Price on Enquiry
15896211 (4) Full qty
CH11996n
48
Pin
137610 (2) Full qty
49
Pin
137611 (2) Full qty
50
Nut to fixing front and rear s…
15896470 (6) Full qty
51
Gasket
134701 (4) Full qty
52
Bush
134672 (4) Full qty
53
Gasket
New       £ 0.31
134705 (4) Full qty
FT10059n
54
Cap
137612 (4) Full qty
55
Washer
149951 (6) Full qty
56
Screw
10856821 (2) Full qty
57
External flange
137613 (2) Full qty
58
Screw
11635721 (2) Full qty
59
Washer
10615470 (4) Full qty
60
Nut
10794011 (2) Full qty
61
Positive cable
139519 (2) Full qty
62
Negative cable
146660 (2) Full qty
63
Union
133950 (4) Full qty
64
O-Ring
New       Price on Enquiry
133956 (8) Full qty
GE00324n
65
Selflocking nut
12575421 (16) Full qty
66
Washer
New       Price on Enquiry
12601274 (16) Full qty
CC11576n
67
Fuel pressure adjuster
137960 (2) Full qty
68
R.H. bracket
139427 (1) Full qty
68
L.H. bracket
139428 (1) Full qty
69
Brake Flexi Hose Lock Nut
101413 (2) Full qty
69
Track Rod Nut RH
New       £ 10.95
101413 (2) Full qty
ST00313n
70
Washer
12601779 (2) Full qty
71
Washer
10615270 (2) Full qty
72
Hose
115042 (2) Full qty
73
Pressure regulator lower brack…
148124 (2) Full qty
74
Pressure regulator upper right…
148125 (1) Full qty
74
Ressure reulator upper lefthan…
148126 (1) Full qty
75
Cable Grommet
New       Price on Enquiry
103549 (2) Full qty
AC00210n
76
Spacer
103550 (2) Full qty
77
Nut
12575411 (2) Full qty
78
Washer
106744 (2) Full qty
79
R.H. fuel pipe from pump to pr…
147357 (1) Full qty
79
L.H. fuel pipe from pump to pr…
147358 (1) Full qty
80
Fuel Pump Check Valve
120098 (2) Full qty
81
Fuel Pressure Regulator
147281 (2) Full qty
