Brake And Clutch System

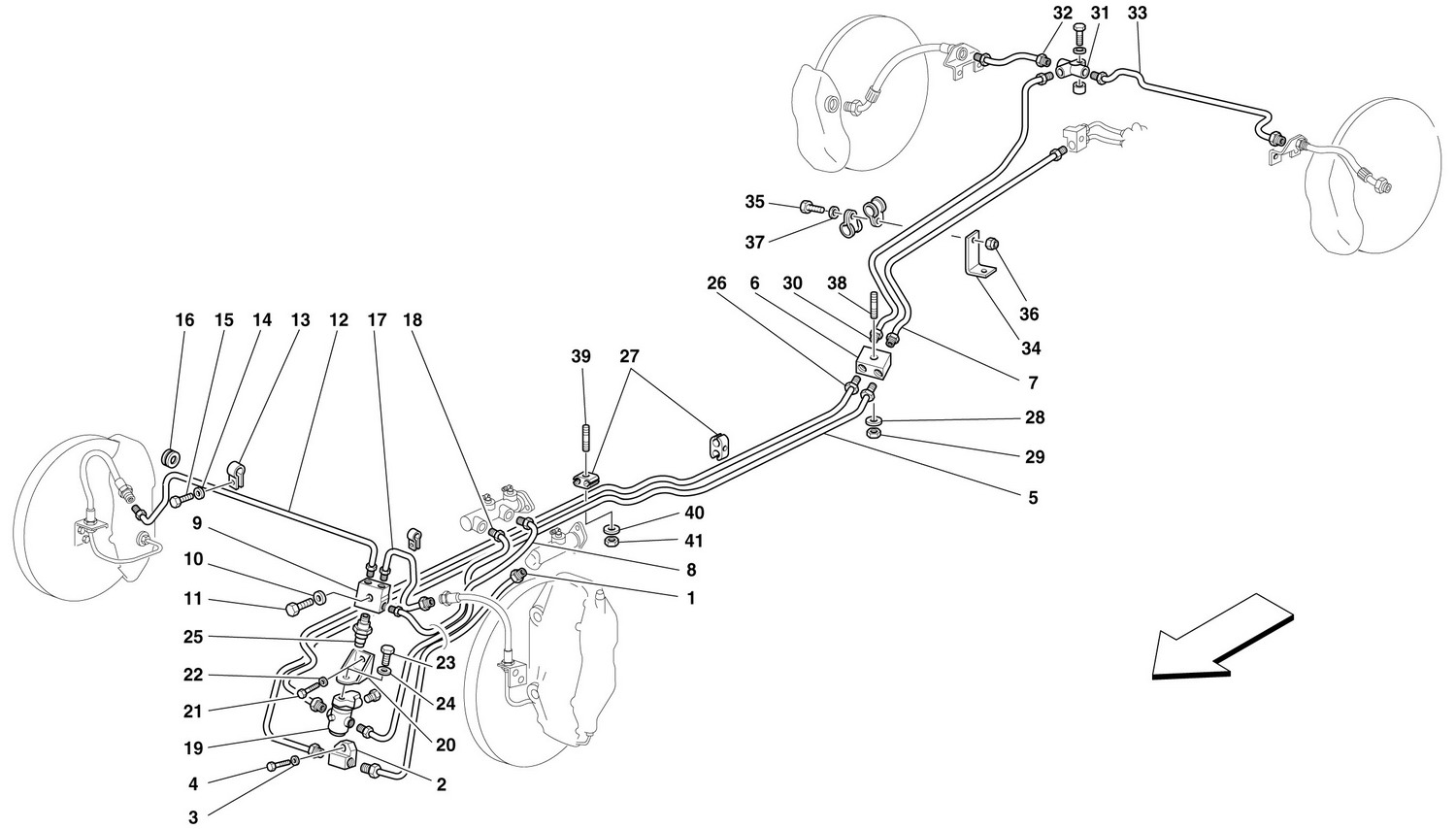

Schematic: Brake And Clutch System
Loc
Part
Cond       Price
1
PIPE FROM CLUTCH PUMP TO UNION…
166671 (1) Full qty
2
Rear union
139471 (1) Full qty
3
WASHER
11181874 (1) Full qty
4
SCREW
10902624 (1) Full qty
5
PIPE FROM REAR UNION TO CLUTC…
166672 (1) Full qty
6
UNION
167528 (1) Full qty
7
PIPE FROM REAR UNION TO CLUTC…
166673 (1) Full qty
8
PIPE FROM BRAKE PUMP TO FRONT…
163004 (1) Full qty
9
FRONT UNION
166590 (1) Full qty
10
WASHER
11181874 (1) Full qty
11
SCREW
10903024 (1) Full qty
12
PIPE FROM UNION TO R.H. FRONT…
163000 (1) Full qty
13
Hose supporting braket
10440890 (1) Full qty
14
WASHER
11181874 (1) Full qty
15
SCREW -M6 X 14-
10902124 (1) Full qty
16
Cable grommet
10396980 (2) Full qty
17
PIPE FROM UNION TO L.H. FRONT…
163002 (1) Full qty
18
PIPE FROM BRAKE PUMP TO BRAKI…
163005 (1) Full qty
19
BRAKING REGULATOR
167276 (1) Full qty
20
SUPPORT
154818 (1) Full qty
21
SCREW
10902224 (1) Full qty
22
WASHER
11181874 (1) Full qty
23
SCREW
16042921 (1) Full qty
24
WASHER
11193874 (1) Full qty
25
PRESS SWITCH
154309 (1) Full qty
26
PIPE FROM BRAKING REGULATOR T…
163007 (1) Full qty
27
CLIP
141522 (5) Full qty
28
Washer 1.6mm 6.4x11.95x1.6
10519424 (1) Full qty
29
Nyloc Nut 6 x 1 x 7.6mm
102948 (1) Full qty
30
PIPE FROM UNION TO 3-WAY UNIO…
163009 (1) Full qty
31
3 way union
101394 (1) Full qty
32
PIPE FROM UNION TO R.H. REAR …
163008 (1) Full qty
33
PIPE FROM UNION TO L.H. REAR …
163006 (1) Full qty
34
BRACKET
168699 (1) Full qty
35
SCREW -M6 X 20- -Fastening bra…
10902424 (1) Full qty
36
NUT
15896214 (1) Full qty
37
WASHER
11181874 (1) Full qty
38
STUD
11501024 (1) Full qty
39
STUD
11001524 (3) Full qty
40
WASHER
12637824 (3) Full qty
41
NUT
113647 (3) Full qty
