Secondary Air System

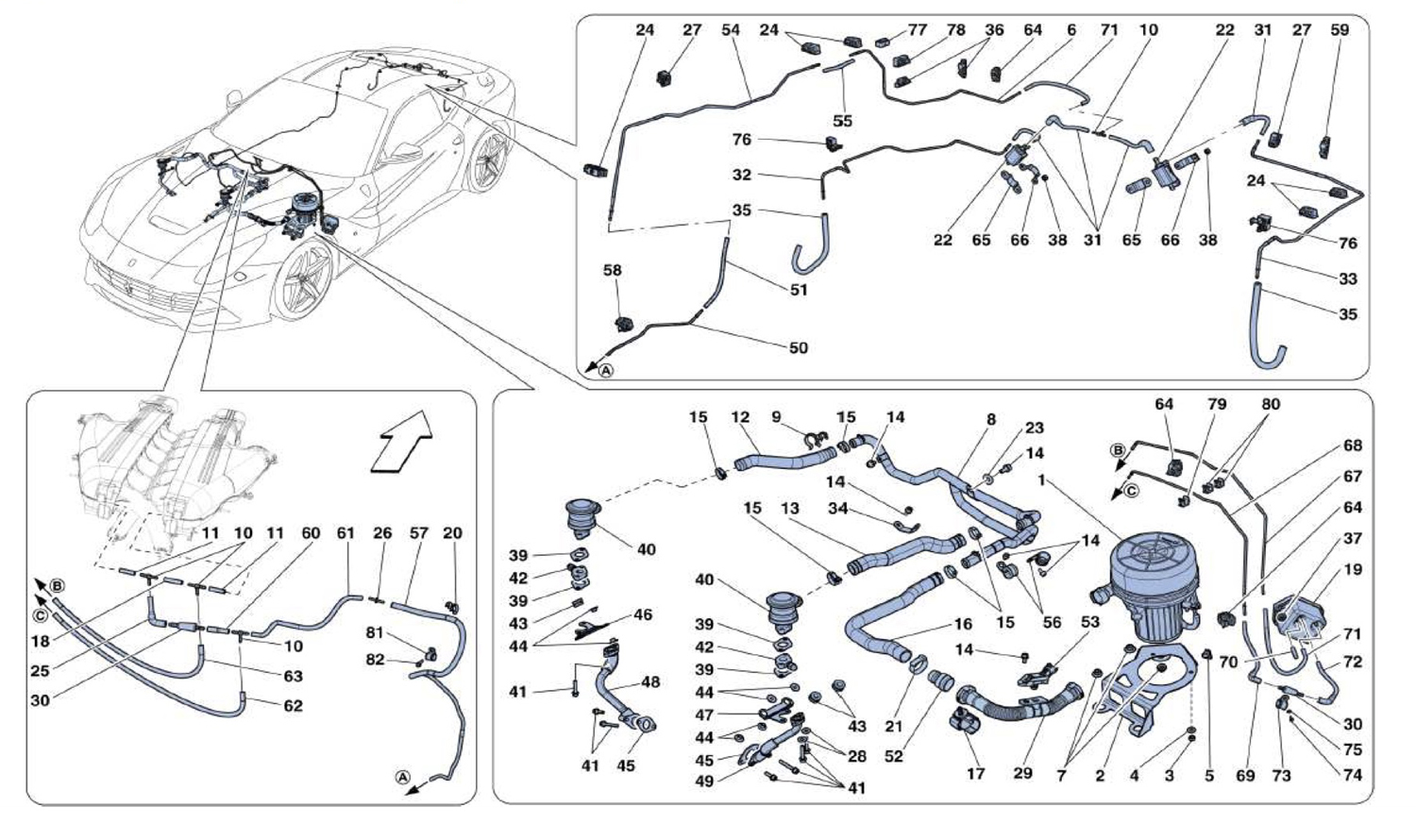

Schematic: Secondary Air System
Loc
Part
Cond       Price
1
SECONDARY AIR SYSTEM PUMP
247795 (1) Full qty
2
PUMP MOUNTING BRACKET -Applica…
272314 (1) Full qty
3
NUT
15896214 (3) Full qty
4
WASHER
11194674 (3) Full qty
5
CLIP
253769 (1) Full qty
6
RIGID PIPE -Applicable from As…
293314 (1) Full qty
7
NUT
14039614 (3) Full qty
8
ALUMINIUM PIPE -Applicable fro…
289538 (1) Full qty
9
CLIP -Applicable from Ass. No.…
225165 (1) Full qty
10
THREE WAY
257691 (4) Full qty
11
Pipe
122759 (2) Full qty
12
RH CONNECTOR PIPE -Applicable …
279862 (1) Full qty
13
LH CONNECTOR PIPE -Applicable …
274855 (1) Full qty
14
SCREW -M6 X 12-
233600 (6) Full qty
15
COLLAR -Applicable from Ass. N…
13128970 (5) Full qty
16
ENGINE SIDE SECONDARY AIR SYST…
279692 (1) Full qty
17
Clip Wiring Loom
82051100 (1) Full qty
18
RUBBER PIPE -Applicable from A…
170530 (1) Full qty
19
VACUUM ACCUMULATOR TANK
198339 (1) Full qty
20
CLIP -Applicable from Ass. No.…
225165 (1) Full qty
21
JUBILEE CLAMP
10860370 (1) Full qty
21
SCREW COLLAR
262111 (1) Full qty
22
SOLENOID VALVE
178309 (2) Full qty
23
WASHER
12643724 (1) Full qty
24
CLIP -2 compartments- -Applica…
280281 (4) Full qty
24
CLIP -2 compartments-
294206 (1) Full qty
25
RUBBER PIPE
295677 (1) Full qty
25
RUBBER PIPE
295677 (1) Full qty
26
CONNECTOR -Applicable from Ass…
199696 (1) Full qty
27
CLIP -1 compartment-
234284 (2) Full qty
28
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
29
SECONDARY AIR SYSTEM PIPE WITH…
288959 (1) Full qty
30
VACUUM RETAINER VALVE
295349 (2) Full qty
31
RUBBER PIPE -D. 3.5 X 100-
294268 (4) Full qty
31
RUBBER PIPE -D. 3.5 X 100-
294268 (4) Full qty
32
RH RIGID PIPE -Applicable from…
281020 (1) Full qty
33
LH RIGID PIPE
269073 (1) Full qty
34
PIPE MOUNTING BRACKET -Applica…
289882 (1) Full qty
35
RUBBER PIPE
168069 (2) Full qty
36
CLIP -Applicable from Ass. No.…
190409 (2) Full qty
37
NUT
14039614 (2) Full qty
38
SCREW -M5 X 14-
11566227 (4) Full qty
38
Nut
14059111 (4) Full qty
39
New       Price on Enquiry
186781 (4) Full qty
EX10818n
40
SECONDARY AIR SYSTEM VALVE
284235 (2) Full qty
41
SCREW -M6 X 20-
231618 (2) Full qty
41
SCREW -M6 X 40-
231623 (2) Full qty
41
SCREW
10902824 (4) Full qty
42
SPACER ASSEMBLY
264020 (1) Full qty
42
SPACER ASSEMBLY -LH side- -App…
286011 (1) Full qty
43
GROMMET
177576 (4) Full qty
44
FLANGED BUSHING
183898 (8) Full qty
45
GASKET
202980 (2) Full qty
46
RH VALVE FASTENER BRACKET
258254 (1) Full qty
47
LH VALVE FASTENER BRACKET
258252 (1) Full qty
48
PIPE FROM AIR VALVE TO RH HEAD…
256598 (1) Full qty
49
PIPE FROM AIR VALVE TO LH HEAD…
256596 (1) Full qty
50
EMISSIONS CONTROL PIPE -Applic…
284631 (1) Full qty
51
RUBBER PIPE -D. 3.5-8 X 185- -…
264088 (1) Full qty
52
COUPLING -Applicable from Ass.…
267093 (1) Full qty
53
PRESSURE SENSOR
282849 (1) Full qty
54
RIGID PIPE -Applicable from As…
284629 (1) Full qty
55
RUBBER PIPE -D. 3.5 X 120-
199691 (1) Full qty
56
Bracket
10450690 (2) Full qty
57
RUBBER PIPE
289048 (1) Full qty
57
RUBBER PIPE
289048 (1) Full qty
58
CLIP -3 compartments-
284622 (2) Full qty
59
CLIP -Applicable from Ass. No.…
190409 (1) Full qty
60
RUBBER PIPE
295441 (1) Full qty
60
RUBBER PIPE
295441 (1) Full qty
61
RUBBER PIPE
159542 (1) Full qty
62
RUBBER PIPE -Applicable from A…
295414 (1) Full qty
63
RUBBER PIPE -Applicable from A…
295413 (1) Full qty
64
CLIP
234285 (3) Full qty
65
SOLENOID VALVE MOUNTING BRACKE…
294259 (2) Full qty
66
SOLENOID VALVE MOUNTING BRACKE…
294260 (2) Full qty
67
RIGID PIPE ON FIREWALL -Not fo…
274272 (1) Full qty
67
RIGID PIPE ON FIREWALL -Applic…
295778 (1) Full qty
68
TANK VACUUM RIGID PIPE ON FIRE…
274271 (1) Full qty
68
TANK VACUUM RIGID PIPE ON FIRE…
295777 (1) Full qty
69
RUBBER PIPE -Applicable from A…
294265 (1) Full qty
69
RUBBER PIPE -Applicable from A…
294265 (1) Full qty
70
CAP FOR UNION
225098 (1) Full qty
71
Pipe from plug to solenoid val…
115412 (2) Full qty
72
RUBBER PIPE -Applicable from A…
294265 (1) Full qty
73
Hose fastening bracket
10441490 (1) Full qty
74
SCREW
15516204 (1) Full qty
75
WASHER -Applicable from Ass. N…
12637878 (1) Full qty
76
CLIP -1 compartment-
294205 (2) Full qty
77
CLIP -2 compartments-
294206 (1) Full qty
78
CLIP -3 compartments- -Applica…
294207 (1) Full qty
79
New       £ 1.05
140130 (4) Full qty
BW99292n
80
CLIP -Applicable for GD- -Appl…
141546 (8) Full qty
81
Bracket
10418501 (1) Full qty
82
SCREW -M5 X 12-
65366700 (1) Full qty
