Flat Undertray And Wheelhouses

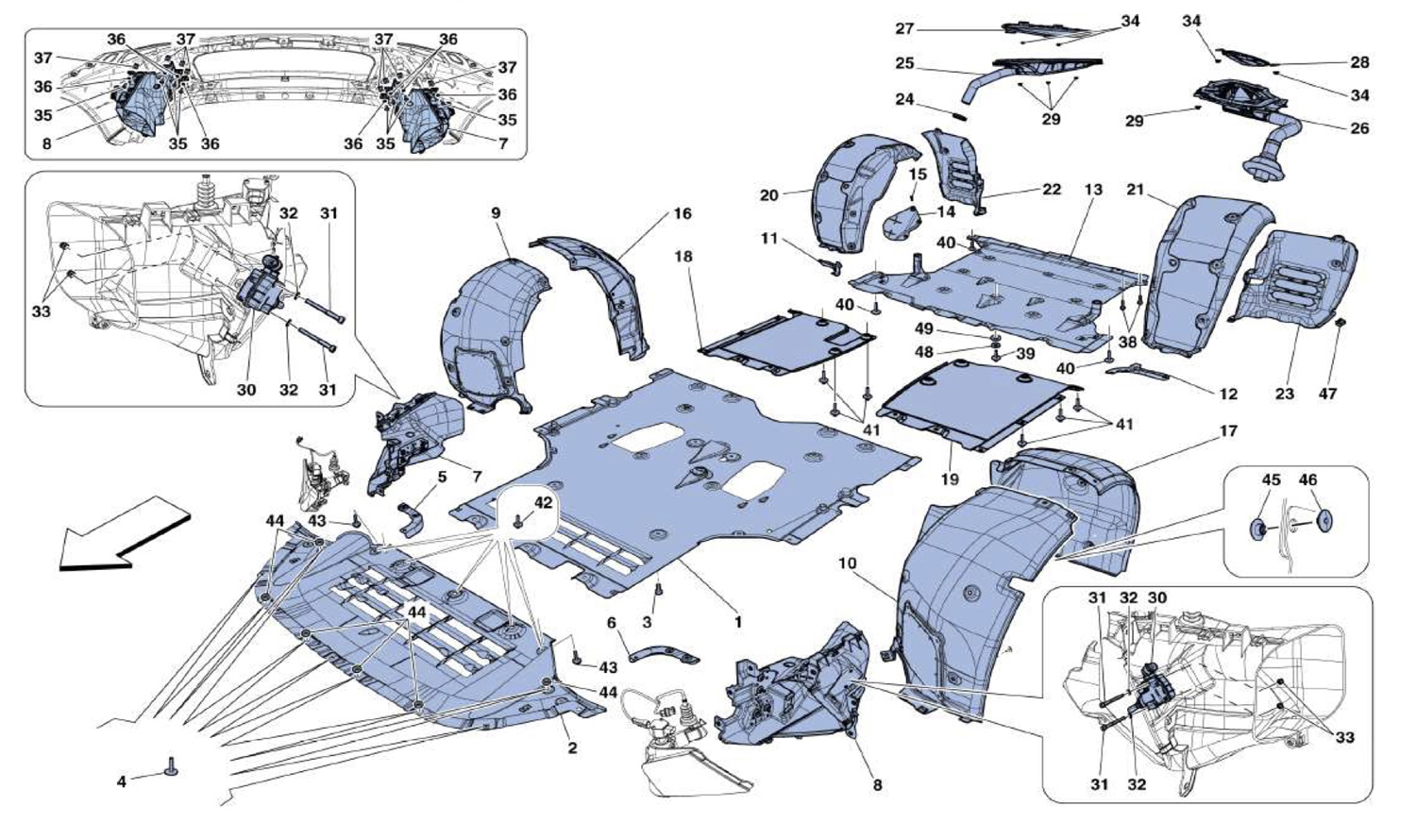

Schematic: Flat Undertray And Wheelhouses
Loc
Part
Cond       Price
1
FRONT FLAT UNDERTRAY SECTION
83916900 (1) Full qty
2
FRONT FLAT UNDERTRAY SECTION C…
83370600 (1) Full qty
3
SCREW -No longer supplied- -Re…
81290900 (10) Full qty
3
SCREW -M6 X 22-
83442900 (10) Full qty
4
SCREW -M6 X 22-
83442900 (9) Full qty
4
SCREW -M6 X 22-
83442900 (9) Full qty
5
RH FRONT DAM
84357800 (1) Full qty
6
LH FRONT DAM
84357900 (1) Full qty
7
RH BRAKE AIR DUCT
84452900 (1) Full qty
8
LH BRAKE AIR DUCT
84453000 (1) Full qty
9
COMPL. SHIELD FOR FRONT PART O…
83360000 (1) Full qty
10
COMPL. SHIELD FOR FRONT PART O…
83360100 (1) Full qty
11
RH REAR DAM
84407700 (1) Full qty
12
LH REAR DAM
84407800 (1) Full qty
13
REAR FLAT UNDERTRAY SECTION
83370900 (1) Full qty
14
WHEEL BAY COVER HATCH
85145000 (1) Full qty
15
SCREW
256323 (3) Full qty
16
SHIELD FOR REAR PART OF FRONT …
83360200 (1) Full qty
17
SHIELD FOR REAR PART OF FRONT …
83360300 (1) Full qty
18
RH CENTRE FLAT UNDERTRAY SECTI…
83370700 (1) Full qty
18
RH CENTRE FLAT UNDERTRAY SECTI…
83370700 (1) Full qty
19
LH CENTRE FLAT UNDERTRAY SECTI…
83370800 (1) Full qty
20
COMPL. SHIELD FOR FRONT PART O…
83361300 (1) Full qty
21
COMPL. SHIELD FOR FRONT PART O…
83361400 (1) Full qty
22
COMPL. SHIELD FOR REAR PART OF…
83360900 (1) Full qty
23
COMPL. SHIELD FOR REAR PART OF…
83361000 (1) Full qty
24
CABLE GROMMET SEAL
84833900 (1) Full qty
25
AIR DUCT UNDER RH FENDER -Appl…
84453100 (1) Full qty
25
AIR DUCT UNDER RH FENDER -Appl…
85650700 (1) Full qty
26
AIR DUCT UNDER LH FENDER -Appl…
84453200 (1) Full qty
26
AIR DUCT UNDER LH FENDER -Appl…
85651100 (1) Full qty
27
RH AIR INTAKE GRILLE -Applicab…
83917500 (1) Full qty
27
RH AIR INTAKE GRILLE -Applicab…
86013700 (1) Full qty
27
RH AIR INTAKE GRILLE -Applicab…
86013700 (1) Full qty
28
LH AIR INTAKE GRILLE -Applicab…
83917600 (1) Full qty
28
LH AIR INTAKE GRILLE -Applicab…
86013800 (1) Full qty
28
LH AIR INTAKE GRILLE -Applicab…
86013800 (1) Full qty
29
Nut
14059111 (14) Full qty
29
NUT
14039511 (14) Full qty
30
LOCK
84819800 (2) Full qty
31
SCREW
14303724 (4) Full qty
32
Washer
14497701 (4) Full qty
33
Nut securing batt. disconn. sw…
12574011 (4) Full qty
34
NUT
14039511 (10) Full qty
35
SCREW
82113500 (14) Full qty
36
WASHER
12647604 (14) Full qty
36
New       Price on Enquiry
12601274 (14) Full qty
CC11576n
37
CLIP
80874300 (14) Full qty
38
SCREW -M6 X 14- -Front camera-…
82115900 (4) Full qty
39
SCREW -No longer supplied- -Re…
81290900 (4) Full qty
39
SCREW
10902824 (4) Full qty
40
SCREW -M6 X 22-
83442900 (7) Full qty
40
SCREW -M6 X 22-
83442900 (7) Full qty
41
SCREW -No longer supplied- -Re…
81290900 (6) Full qty
41
SCREW -M6 X 22-
83442900 (6) Full qty
42
SCREW -No longer supplied- -Re…
81290900 (5) Full qty
43
SCREW -M6 X 14- -Front camera-…
82115900 (2) Full qty
44
SHIM
83314300 (6) Full qty
45
MALE CLIP
84247300 (2) Full qty
46
FEMALE CLIP
84247400 (2) Full qty
47
CLIP
80874300 (2) Full qty
48
New       Price on Enquiry
11197774 (4) Full qty
GE35524n
49
WASHER
12640624 (4) Full qty
