Brake System

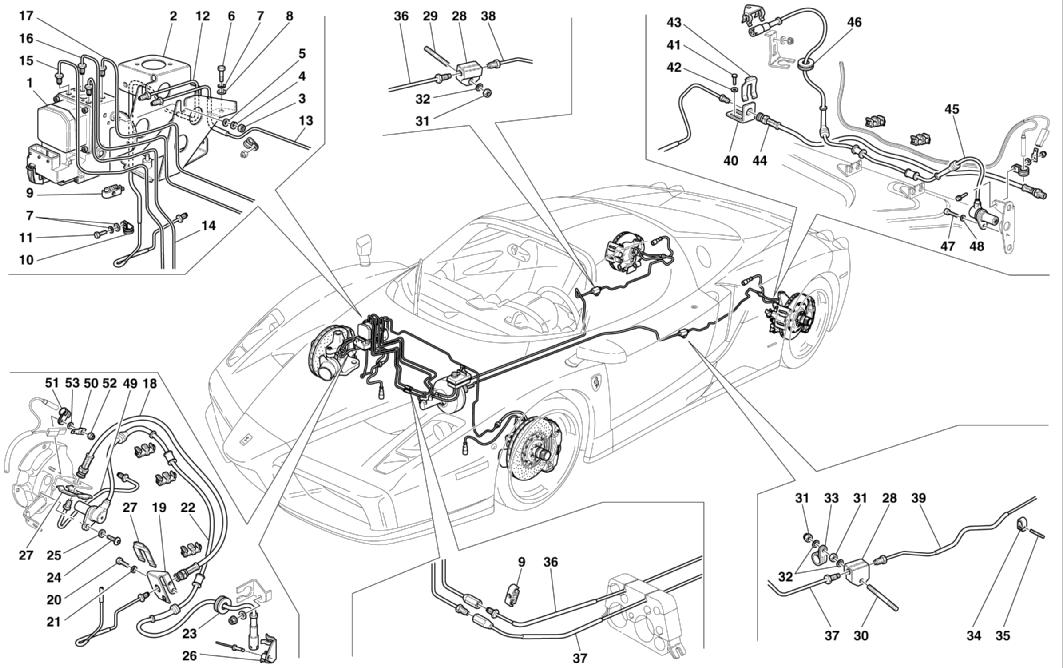

Schematic: Brake System
Schematic: Brake System
Loc
Part
Cond       Price
1
ABS/ASR HYDRAULIC/ELECTRONIC C…
186179 (1) Full qty
2
CONTROL STATION SUPPORTING BRA…
193441 (1) Full qty
3
NUT
16100814 (2) Full qty
4
Wavy Lock Washer 8mm
127496 (2) Full qty
5
WASHER
12638524 (2) Full qty
6
Screw
10902324 (3) Full qty
7
Washer
New       Price on Enquiry
12601274 (8) Full qty
CC11576n
8
Washer
New       Price on Enquiry
12644424 (3) Full qty
CS12006n
8
Inlet Water Manifold 512 BBi
Used       Price on Enquiry
12644424 (3) Full qty
CS12006u
9
CLIP
169476 (6) Full qty
10
Pipe supporting backet
10440990 (5) Full qty
11
SCREW -M6 X 14-
10902124 (5) Full qty
12
PIPE FROM CONTROL STATION TO R…
196659 (1) Full qty
13
PIPE FROM CONTROL STATION TO L…
196660 (1) Full qty
14
PIPE FROM CONTROL STATION TO R…
190982 (1) Full qty
15
PIPE FROM CONTROL STATION TO L…
190983 (1) Full qty
16
PIPE FROM FRONT PUMP TO CONTRO…
188329 (1) Full qty
17
PIPE FROM REAR PUMP TO CONTROL…
188327 (1) Full qty
18
FRONT HOSE
193465 (2) Full qty
19
R.H. FRONT SUPPORT
196602 (1) Full qty
19
L.H. FRONT SUPPORT
196601 (1) Full qty
20
SCREW -M6 X 14-
10902124 (4) Full qty
21
Washer
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
22
Front ABS Sensor 355
New       £ 217.73
170592 (2) Full qty
BS00872n
23
CABLE GROMMET
10396180 (2) Full qty
24
Screw 6x15
60909500 (2) Full qty
25
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
26
Clip
128292 (2) Full qty
27
Front Brake Calipar - Clamp
116374 (4) Full qty
28
TWO-WAY UNION
155215 (2) Full qty
29
STUD
13541224 (1) Full qty
30
Short stud
13541624 (1) Full qty
31
Nut 6mm
New       Price on Enquiry
10725914 (3) Full qty
BS00684n
32
Washer
New       Price on Enquiry
12601274 (3) Full qty
CC11576n
33
Small bracket with sheathing
10441590 (1) Full qty
34
CLIP
169477 (4) Full qty
35
STUD
11001224 (4) Full qty
36
PIPE TO TUNNEL FROM R.H. REAR …
188328 (1) Full qty
37
PIPE TO TUNNEL FROM L.H. REAR …
188332 (1) Full qty
38
PIPE FROM UNION TO R.H. REAR H…
188333 (1) Full qty
39
PIPE FROM UNION TO L.H. REAR H…
188334 (1) Full qty
40
REAR SUPPORT
194440 (2) Full qty
41
SCREW -M6 X 14-
10902124 (2) Full qty
42
Washer
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
43
Front Brake Calipar - Clamp
116374 (2) Full qty
44
REAR HOSE
193466 (2) Full qty
45
Front ABS Sensor 355
New       £ 217.73
170592 (2) Full qty
BS00872n
46
CABLE GROMMET
10396180 (2) Full qty
47
Screw 6x15
60909500 (2) Full qty
48
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
49
PIPE FROM FRONT HOSE TO R.H. C…
193295 (1) Full qty
49
PIPE FROM FRONT HOSE TO L.H. C…
193296 (1) Full qty
50
FASTON
143405 (2) Full qty
51
Pipe supporting backet
10440990 (2) Full qty
52
NUT
113647 (2) Full qty
53
WASHER
14496324 (2) Full qty
