Monocoque Body Frame - Front Frame - Central Flat Floor Pan

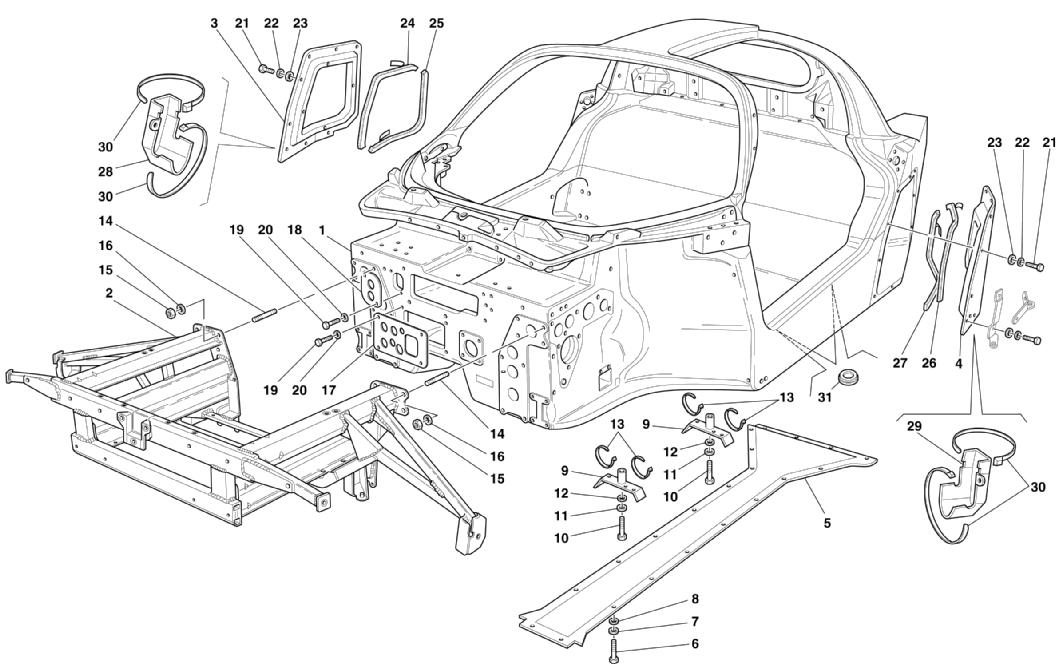

Schematic: Monocoque Body Frame - Front Frame - Central Flat Floor Pan
Loc
Part
Cond       Price
1
COMPLETE FRAME
66535400 (1) Full qty
2
FRONT FRAME
66486900 (1) Full qty
3
R.H. COVER FIXING FUEL TANK
189795 (1) Full qty
4
L.H. COVER FIXING FUEL TANK
189796 (1) Full qty
5
CENTRAL UNDER THE BODY SHELL S…
66534000 (1) Full qty
6
SCREW
10902224 (16) Full qty
7
WASHER
14498804 (16) Full qty
8
WASHER
12620474 (16) Full qty
9
BRACKET FOR ELECTRICAL SYSTEM …
185664 (2) Full qty
10
SCREW
10903224 (2) Full qty
11
WASHER
14496424 (2) Full qty
12
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
13
RING CLAMP -Version with front…
145854 (4) Full qty
14
New       £ 3.25
13543324 (16) Full qty
EX10823n
15
NUT
177778 (16) Full qty
16
WASHER
12638524 (16) Full qty
17
PLATE FOR HEATER CABLE BUSHING…
67113500 (1) Full qty
18
PLATE FOR CABLE BUSHING
67113600 (1) Full qty
19
Screw
10902324 (6) Full qty
20
WASHER
14498801 (6) Full qty
21
SCREW -M6 X 20- -Fastening bra…
10902424 (24) Full qty
22
WASHER
10523424 (24) Full qty
23
Clutch Bolt Wavy Washer 550/57…
127494 (24) Full qty
24
R.H. UPPER RUBBER THICKNESS
192956 (1) Full qty
25
R.H. LOWER RUBBER THICKNESS
192957 (1) Full qty
26
L.H. UPPER RUBBER THICKNESS
192955 (1) Full qty
27
L.H. LOWER RUBBER THICKNESS
192954 (1) Full qty
28
R.H. CONTOUR
191990 (1) Full qty
29
L.H. CONTOUR
191991 (1) Full qty
30
RING CLAMP -Version with front…
145854 (4) Full qty
31
PLUG
14507787 (4) Full qty
