Fixing Glass -Optional

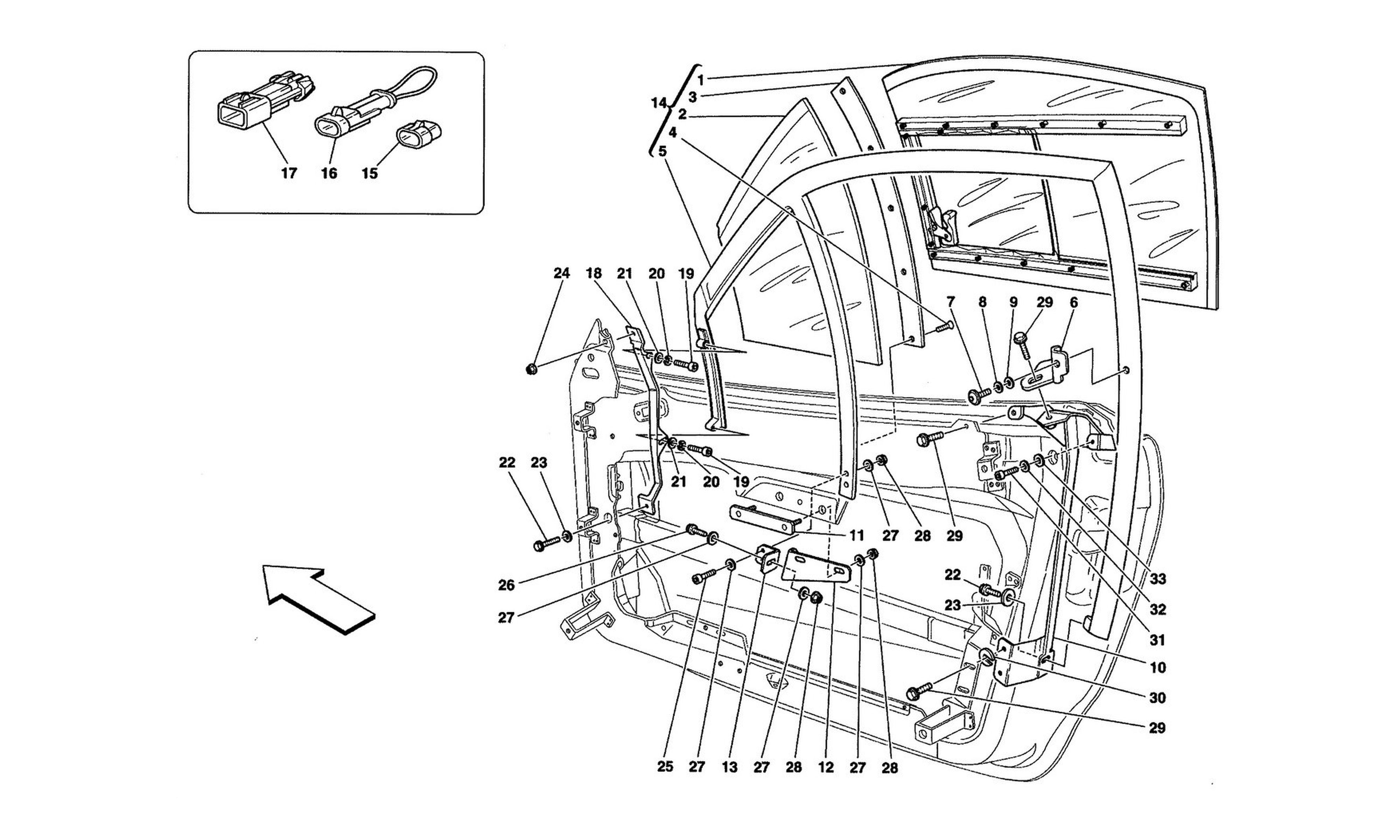

Schematic: Fixing Glass -Optional
Loc
Part
Cond       Price
1
RH. LEXAN
67541000 (1) Full qty
1
LH. LEXAN
67541100 (1) Full qty
2
RH. QUARTERLIGHT GLASS
67540800 (1) Full qty
2
LH. QUARTERLIGHT GLASS
67540900 (1) Full qty
3
RH. COSMETIC TRAY
67540600 (1) Full qty
3
LH. COSMETIC TRAY
67540700 (1) Full qty
4
SCREW
67890700 (8) Full qty
5
RH. DOOR FRAME
67890500 (1) Full qty
5
LH. DOOR FRAME
67890600 (1) Full qty
6
LH UPPER BRACKET
67831900 (1) Full qty
6
RH UPPER BRACKET
67831800 (1) Full qty
7
SCREW -M5 X 12-
65366700 (2) Full qty
8
WASHER
12601177 (2) Full qty
9
WASHER
14446624 (2) Full qty
10
LH. REAR BRACKET
67540300 (1) Full qty
10
RH. REAR BRACKET
67540200 (1) Full qty
11
BRACKET
66075200 (2) Full qty
12
RH. PILLAR BRACKET
67539800 (1) Full qty
12
LH. PILLAR BRACKET
67539900 (1) Full qty
13
RH. FRONT BRACKET
67541500 (1) Full qty
13
LH. FRONT BRACKET
67541600 (1) Full qty
14
COMPLETE LH. DOOR FRAME
67539700 (1) Full qty
14
COMPLETE RH. DOOR FRAME
67539500 (1) Full qty
15
CONNECTORS PROTECTION COVER
175876 (2) Full qty
16
DOOR LOCKING BRIDGE
209439 (2) Full qty
17
CONNECTORS PROTECTION COVER
199125 (2) Full qty
18
LH. FRAME FRONT BRACKET
67540100 (1) Full qty
18
RH. FRAME FRONT BRACKET
67540000 (1) Full qty
19
SCREW -M6 X 14-
13027024 (4) Full qty
20
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
21
Washer 1.6mm 6.4x11.95x1.6
10519424 (4) Full qty
22
SCREW
13836324 (4) Full qty
23
WASHER
12640624 (4) Full qty
24
Nut
13832101 (2) Full qty
25
SCREW
14305424 (4) Full qty
26
SCREW
13836324 (2) Full qty
27
WASHER
12643724 (16) Full qty
28
Nyloc Nut 6 x 1 x 7.6mm
102948 (10) Full qty
29
SCREW
13836324 (8) Full qty
30
New       £ 1.64
105864 (8) Full qty
BW99077n
31
SCREW
13274014 (2) Full qty
32
New       Price on Enquiry
12601174 (2) Full qty
ST00358n
33
WASHER
12638124 (2) Full qty
