Secondary Air System

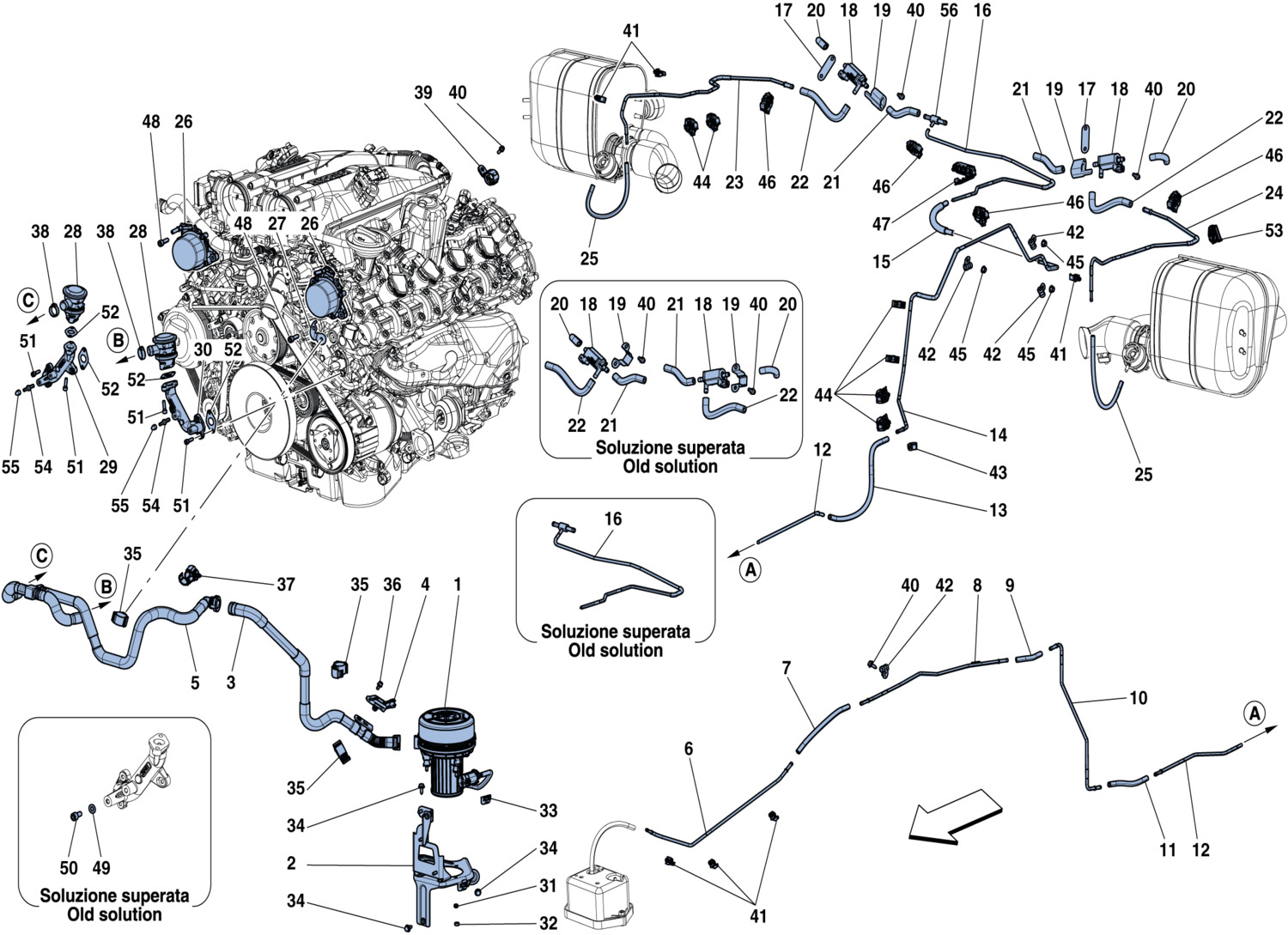

Schematic: Secondary Air System
Schematic: Secondary Air System
Loc
Part
Cond       Price
1
SECONDARY AIR SYSTEM PUMP
247795 (1) Full qty
2
BRACKET
309070 (1) Full qty
3
PUMP SIDE SECONDARY AIR SYSTEM…
303285 (1) Full qty
4
PRESSURE SENSOR
282849 (1) Full qty
5
ENGINE SIDE SECONDARY AIR SYST…
303284 (1) Full qty
6
VACUUM VALVE CONTROL PIPE -App…
302044 (1) Full qty
6
VACUUM VALVE CONTROL PIPE -App…
317249 (1) Full qty
7
RUBBER PIPE -Applicable up to …
307042 (1) Full qty
7
Vacuum pipe
115147 (1) Full qty
8
VACUUM VALVE CONTROL PIPE -App…
302183 (1) Full qty
8
VACUUM VALVE CONTROL PIPE -App…
317250 (1) Full qty
9
RUBBER PIPE -Applicable up to …
302194 (1) Full qty
9
RUBBER PIPE
165608 (1) Full qty
10
VACUUM VALVE CONTROL PIPE -App…
302184 (1) Full qty
10
VACUUM VALVE CONTROL PIPE -App…
317251 (1) Full qty
11
RUBBER PIPE -Applicable up to …
307042 (1) Full qty
11
Vacuum pipe
115147 (1) Full qty
12
VACUUM VALVE CONTROL PIPE -App…
301819 (1) Full qty
12
VACUUM VALVE CONTROL PIPE -App…
317252 (1) Full qty
13
RUBBER PIPE -Applicable up to …
299185 (1) Full qty
13
RUBBER PIPE -Applicable from A…
115411 (1) Full qty
14
VACUUM VALVE CONTROL PIPE -App…
301821 (1) Full qty
14
VACUUM VALVE CONTROL PIPE -App…
317253 (1) Full qty
15
RUBBER PIPE -Applicable up to …
304388 (1) Full qty
15
RUBBER PIPE -Applicable from A…
318141 (1) Full qty
16
VACUUM VALVE CONTROL PIPE -App…
302047 (1) Full qty
16
VACUUM VALVE CONTROL PIPE -App…
317254 (1) Full qty
17
BRACKET -Applicable up to Ass.…
299195 (2) Full qty
17
BRACKET -Applicable from Ass. …
317446 (2) Full qty
18
SOLENOID VALVE
178309 (2) Full qty
19
BRACKET -Applicable up to Ass.…
299196 (2) Full qty
19
SOLENOID VALVE RETAINER BLOCK …
317860 (2) Full qty
20
BENT PIPE
260272 (2) Full qty
21
RUBBER PIPE -Applicable up to …
299200 (2) Full qty
21
RUBBER PIPE -Applicable up to …
307534 (2) Full qty
22
RUBBER PIPE -Applicable up to …
299201 (2) Full qty
22
RUBBER PIPE -D. 3.5 X 100-
294268 (2) Full qty
23
RIGID PIPE -Applicable up to A…
304406 (1) Full qty
23
RIGID PIPE -Applicable from As…
317256 (1) Full qty
24
RIGID PIPE -Applicable up to A…
304407 (1) Full qty
24
RIGID PIPE -Applicable from As…
317255 (1) Full qty
25
RIGID PIPE
304764 (2) Full qty
26
PRESSURE REDUCER -Applicable a…
303259 (2) Full qty
26
PRESSURE REDUCER -Applicable a…
303259 (2) Full qty
27
BRACKET
303582 (1) Full qty
28
SECONDARY AIR SYSTEM VALVE
284235 (2) Full qty
29
RH SECONDARY AIR SYSTEM VALVE …
292403 (1) Full qty
30
LH SECONDARY AIR SYSTEM VALVE …
292404 (1) Full qty
31
Washer
New       Price on Enquiry
12601274 (3) Full qty
CC11576n
32
NUT
15896214 (3) Full qty
33
CLIP
253769 (1) Full qty
34
SCREW-M6X 18-
11730624 (1) Full qty
35
CLIP
304443 (3) Full qty
36
SCREW -M6 X 12-
233600 (1) Full qty
37
CLIP
248061 (1) Full qty
38
CLAMP
178053 (2) Full qty
39
CLIP
244225 (1) Full qty
40
Screw 6x16 ( For Tensioner Mount) F12
New       £ 0.76
248334 (6) Full qty
TC00257n
41
CLIP -1 compartment-
303873 (6) Full qty
41
CLIP
291408 (6) Full qty
42
Pipe supporting backet
10440990 (4) Full qty
43
CLIP
235682 (1) Full qty
44
CLIP -1 compartment-
234284 (6) Full qty
45
NUT
14059214 (3) Full qty
46
CLIP
234285 (4) Full qty
47
CLIP
234286 (1) Full qty
48
SCREW -M8 X 25-
231628 (4) Full qty
49
Gasket
10297760 (2) Full qty
50
SCREW -No longer supplied- -Re…
14305124 (2) Full qty
51
SCREW -M6 X 22-
231619 (10) Full qty
52
Secondary Air Pipe Gasket
New       Price on Enquiry
186781 (4) Full qty
EX10818n
53
CLIP
249782 (1) Full qty
54
THREADED UNION -No longer supp…
210868 (2) Full qty
55
Nut
150595 (2) Full qty
56
3-WAY UNION COMPLETE WITH BRAC…
281899 (1) Full qty
