Power Unit And Tank Applicable For F1

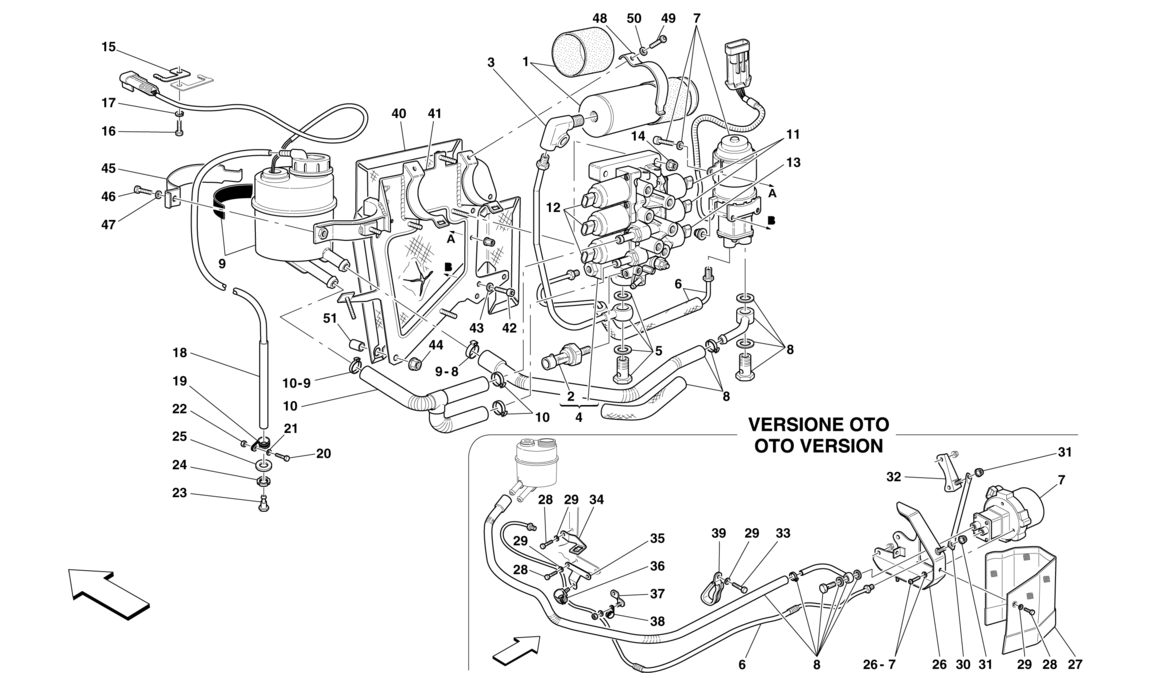

Schematic: Power Unit And Tank Applicable For F1
Loc
Part
Cond       Price
1
ACCUMULATOR
179143 (1) Full qty
2
PRESSURE SENSOR
190662 (1) Full qty
3
DUCT
179211 (1) Full qty
4
POWER UNIT
179140 (1) Full qty
4
POWER UNIT
248412 (1) Full qty
5
HP ACCUMULATOR PIPE KIT
248424 (1) Full qty
5
HP ACCUMULATOR PIPE KIT
248376 (1) Full qty
6
HP PUMP PIPE KIT
248377 (1) Full qty
6
PIPE FROM HYDRAULIC PUMP TO PO…
226496 (1) Full qty
7
ELECTRIC PUMP KIT
248087 (1) Full qty
7
F1 Hydraulic Gearbox Pump (213…
247223 (1) Full qty
8
INTAKE PIPE KIT
247225 (1) Full qty
8
INTAKE PIPE KIT
248308 (1) Full qty
9
OIL TANK KIT
247226 (1) Full qty
10
3-WAY PIPE KIT
247227 (1) Full qty
11
PROPORTIONAL PRESSURE VALVE
247231 (1) Full qty
11
PROPORTIONAL PRESSURE VALVE
248089 (1) Full qty
11
PROPORTIONAL PRESSURE VALVE
248351 (1) Full qty
12
PROPORTIONAL FLOW VALVE
247233 (1) Full qty
12
PROPORTIONAL FLOW VALVE
248090 (1) Full qty
12
PROPORTIONAL FLOW VALVE
248352 (1) Full qty
13
PROPORTIONAL FLOW VALVE
247235 (1) Full qty
14
NUT
175283 (2) Full qty
15
CLIP
162606 (1) Full qty
16
SCREW
10902224 (1) Full qty
17
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
18
COMPLETE BREATHER PIPE
231684 (1) Full qty
18
COMPLETE BREATHER PIPE
234328 (1) Full qty
19
Hose fastening bracket
10441890 (1) Full qty
20
SCREW -M6 X 20- -Fastening bra…
10902424 (1) Full qty
21
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
22
Nut
102741 (1) Full qty
23
PIPE CONNECTOR
231689 (1) Full qty
24
RING NUT
231812 (1) Full qty
25
WASHER
231816 (1) Full qty
26
ELECTRIC PUMP BRACKET KIT
248360 (1) Full qty
27
HEAT GUARD
226976 (1) Full qty
27
HEAT GUARD
247213 (1) Full qty
28
SCREW
10979424 (4) Full qty
29
New       Price on Enquiry
12601274 (5) Full qty
CC11576n
30
TIE-ROD
226267 (1) Full qty
31
Nut
14058511 (2) Full qty
32
BRACKET
226266 (1) Full qty
33
SCREW
11635724 (1) Full qty
34
CONNECTOR FASTENER BRACKET
189936 (1) Full qty
35
BRACKET
227701 (1) Full qty
36
CLIP
157386 (1) Full qty
37
BRACKET
228135 (1) Full qty
38
Pipes fastening bracket
139512 (1) Full qty
39
CLAMP
227557 (1) Full qty
40
HEAT GUARD
217532 (1) Full qty
40
HEAT GUARD
207359 (1) Full qty
41
POWER UNIT MOUNTING BRACKET
217011 (1) Full qty
42
SCREW -M6 X 14-
14305724 (3) Full qty
43
Washer 1.6mm 6.4x11.95x1.6
10519424 (3) Full qty
44
NUT
14059211 (1) Full qty
45
SUPPORT CLAMP
171746 (1) Full qty
46
SCREW -M6 X 14-
10902124 (1) Full qty
47
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
48
CLAMP
198960 (1) Full qty
49
SCREW -M6 X 14-
10902124 (2) Full qty
50
WASHER
14446624 (2) Full qty
51
SHIM
214620 (1) Full qty
51
SHIM
214621 (3) Full qty
