Clutch And Controls Applicable For Oto

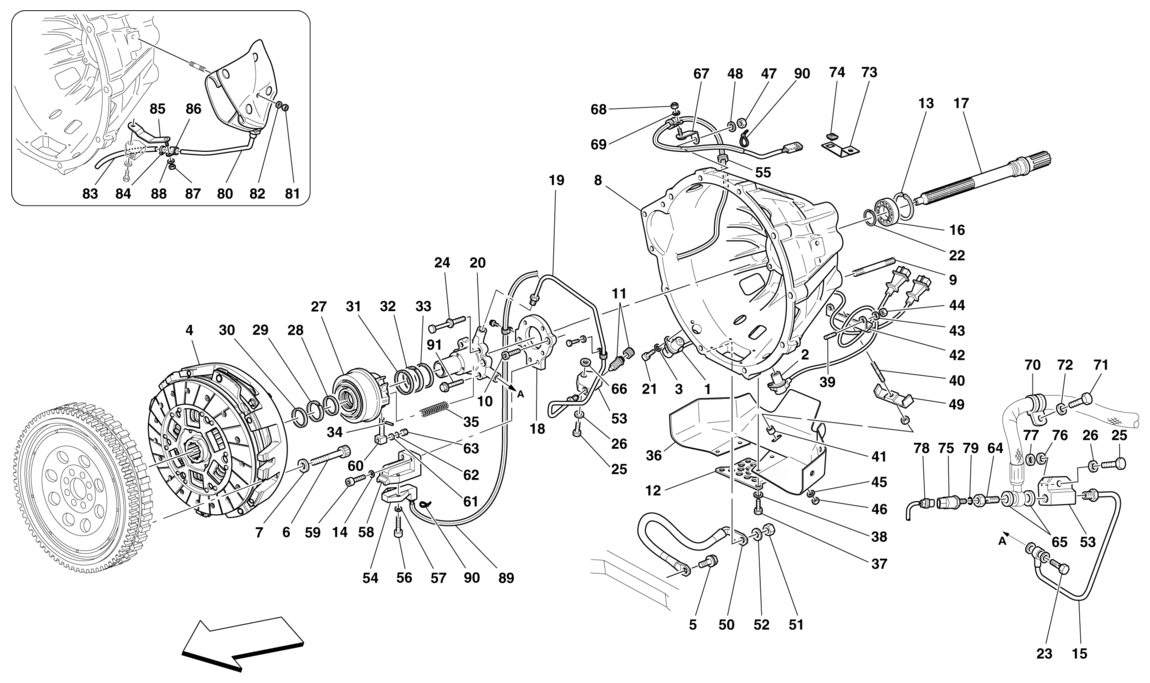

Schematic: Clutch And Controls Applicable For Oto
Loc
Part
Cond       Price
1
RH CYLINDER BANK RPM SENSOR
189548 (1) Full qty
2
LH CYLINDER BANK RPM SENSOR
189540 (1) Full qty
3
SCREW -No longer supplied- -Re…
14305124 (2) Full qty
4
COMPLETE CLUTCH
222277 (1) Full qty
5
Screw
16296421 (1) Full qty
6
SCREW -Not for DCT gearbox-
216771 (9) Full qty
7
Clutch Cover Spring Washer 430…
11194379 (9) Full qty
8
COMPLETE CLUTCH HOUSING
208102 (1) Full qty
8
CLUTCH HOUSING
195080 (1) Full qty
9
STUD BOLT
13546334 (8) Full qty
10
SCREW -M8 X 16-
13028324 (2) Full qty
11
Bleeder screw
121699 (1) Full qty
12
CLUTCH HOUSING COVER
144441 (1) Full qty
13
STOP RING
182963 (1) Full qty
14
WASHER
10519378 (4) Full qty
15
OIL DELIVERY PIPE
238716 (1) Full qty
16
New       Price on Enquiry
145805 (1) Full qty
CC11684n
17
CLUTCH SHAFT
236806 (1) Full qty
18
INTERMEDIATE FLANGE
236804 (1) Full qty
19
VENT PIPE
238714 (1) Full qty
20
BEARING MOUNTING FLANGE -Not f…
182952 (1) Full qty
21
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
22
STOP RING
182963 (1) Full qty
23
PIPE UNION
236805 (1) Full qty
24
STUD BOLT
238712 (2) Full qty
25
SCREW
10902624 (2) Full qty
26
New       Price on Enquiry
11197774 (2) Full qty
GE35524n
27
New       Price on Enquiry
234943 (1) Full qty
CL11630n
28
New       Price on Enquiry
181838 (1) Full qty
CL11590n
29
New       Price on Enquiry
208014 (1) Full qty
CL11628n
30
New       Price on Enquiry
181837 (1) Full qty
CL11588n
31
New       Price on Enquiry
181828 (1) Full qty
CL11580n
32
New       Price on Enquiry
154507 (1) Full qty
CL11558n
33
New       Price on Enquiry
181836 (1) Full qty
CL11576n
34
New       Price on Enquiry
14158570 (1) Full qty
CL12026n
35
Clutch Housing Spring
155207 (2) Full qty
36
TIMING SENSOR SHIELD
229603 (1) Full qty
37
SCREW
10977824 (4) Full qty
38
New       Price on Enquiry
12601174 (4) Full qty
ST00358n
39
STUD BOLT
13540824 (2) Full qty
40
STUD BOLT
155177 (1) Full qty
41
SHIM
205046 (1) Full qty
42
MOUNTING
200137 (1) Full qty
43
WASHER
12639724 (2) Full qty
44
Nut
102741 (2) Full qty
45
WASHER
11199274 (1) Full qty
46
Nut to fixing front and rear s…
15896470 (1) Full qty
47
NUT
16100814 (5) Full qty
48
Do Not Use - See GE07667n
12601374 (5) Full qty
48
New       £ 0.12
12601374 (5) Full qty
CH11905n
49
SUPPORT
146654 (1) Full qty
50
GROUND BRAID
202266 (1) Full qty
51
Nut to fixing front and rear s…
15896470 (1) Full qty
52
WASHER
11199274 (1) Full qty
53
New       £ 105.05
240774 (2) Full qty
SU11736n
54
New       Price on Enquiry
243784 (1) Full qty
CL11894n
55
Ring
10398480 (1) Full qty
56
SCREW
14303324 (2) Full qty
57
WASHER
10519224 (2) Full qty
58
New       Price on Enquiry
207447 (1) Full qty
CL11902n
59
SCREW
14304424 (2) Full qty
59
SCREW
14304424 (2) Full qty
60
PIN
166676 (1) Full qty
61
Clutch Position Sensor Magnet
165676 (1) Full qty
62
New       Price on Enquiry
165658 (1) Full qty
GE00350n
63
PLUG
167802 (1) Full qty
64
PIPE UNION
199410 (1) Full qty
65
Gasket
10261060 (2) Full qty
66
WASHER
12647801 (1) Full qty
67
PIPE MOUNTING BRACKET -Applica…
149694 (1) Full qty
68
Nut
102741 (1) Full qty
69
WASHER
12639724 (1) Full qty
70
Small bracket with sheathing
10441590 (1) Full qty
71
Screw
10902024 (1) Full qty
72
WASHER
12639724 (1) Full qty
73
CONNECTOR FASTENER BRACKET
247023 (1) Full qty
74
FASTENER CLIP
187161 (1) Full qty
75
PRESSURE SENSOR
203294 (1) Full qty
76
WASHER
12647801 (1) Full qty
77
WASHER
12647601 (1) Full qty
78
PRESSURE SENSOR WIRING HARNESS…
221379 (1) Full qty
79
GASKET
140605 (1) Full qty
80
SHIELD
234059 (1) Full qty
81
NUT -No longer supplied- -Repl…
14048111 (1) Full qty
82
Washer
12646601 (1) Full qty
83
RUBBER PIPE
234061 (1) Full qty
84
SCREW COLLAR
13431570 (1) Full qty
85
BRACKET
234100 (1) Full qty
86
Bracket
10418101 (1) Full qty
87
NUT -No longer supplied- -Repl…
14048111 (1) Full qty
88
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
89
HEAT SHIELD SHEATH
236976 (1) Full qty
90
New       Price on Enquiry
206739 (2) Full qty
EX10382n
91
SCREW -No longer supplied- -Re…
16286124 (2) Full qty
