Evaporator Unit And Controls

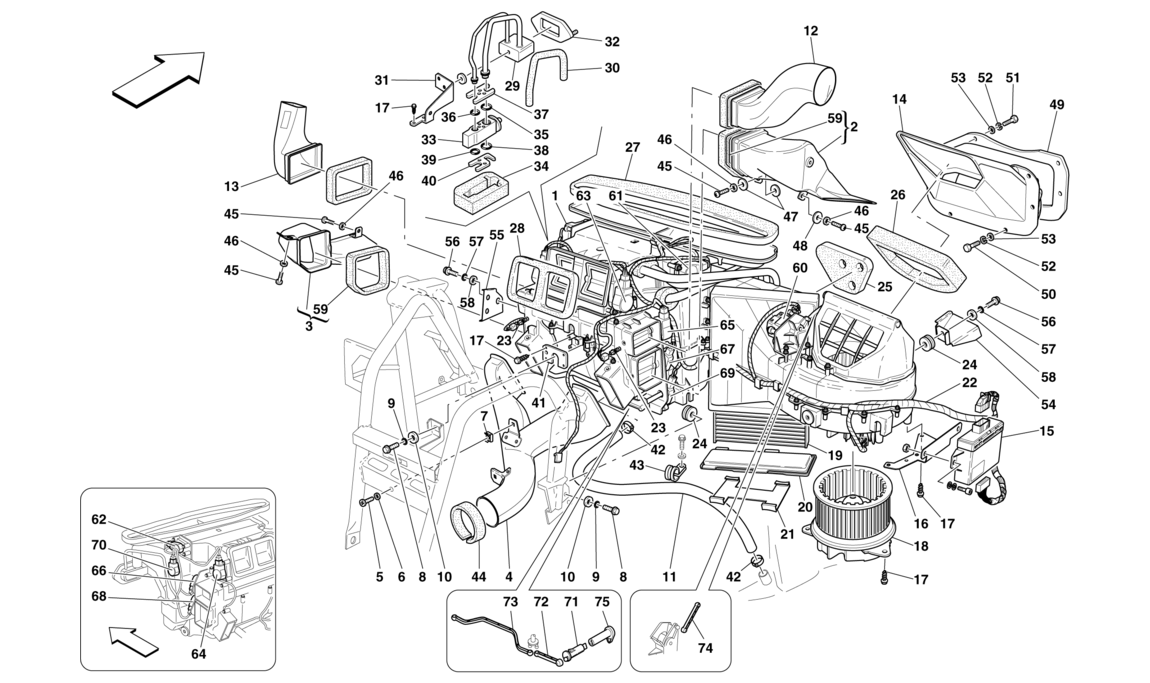

Schematic: Evaporator Unit And Controls
Loc
Part
Cond       Price
1
COMPLETE EVAPORATOR GROUP
66984100 (1) Full qty
1
COMPLETE EVAPORATOR GROUP
69544400 (1) Full qty
1
COMPLETE EVAPORATOR GROUP
80281200 (1) Full qty
1
COMPLETE EVAPORATOR GROUP
68125000 (1) Full qty
1
COMPLETE EVAPORATOR GROUP
69544600 (1) Full qty
1
COMPLETE EVAPORATOR GROUP
80281300 (1) Full qty
2
RH AIR DUCT
67002100 (1) Full qty
2
RH AIR DUCT
67924300 (1) Full qty
3
LH AIR DUCT
67002200 (1) Full qty
3
LH AIR DUCT
67924400 (1) Full qty
4
AIR DUCT FOR REAR OCCUPANTS
66853900 (1) Full qty
4
AIR DUCT FOR REAR OCCUPANTS
80024900 (1) Full qty
5
Screw
13274211 (1) Full qty
6
WASHER
12637824 (1) Full qty
7
CAGE NUT
14197890 (1) Full qty
8
SCREW
16286024 (3) Full qty
9
New       Price on Enquiry
12601274 (3) Full qty
CC11576n
10
WASHER
12643724 (3) Full qty
11
CONDENSATE DRAIN PIPE
67935700 (1) Full qty
12
RH SLEEVE
66853400 (1) Full qty
12
RH SLEEVE
67457100 (1) Full qty
13
LH CONNECTOR PIPE
66853500 (1) Full qty
13
LH CONNECTOR PIPE
67457200 (1) Full qty
14
AIR DUCT
68115100 (1) Full qty
14
AIR DUCT
68125800 (1) Full qty
14
AIR DUCT
67852400 (1) Full qty
15
ELECTRONIC CONTROL UNIT
191552 (1) Full qty
15
ELECTRONIC CONTROL UNIT
221522 (1) Full qty
16
ECU FASTENER BRACKET
68391600 (1) Full qty
16
ECU FASTENER BRACKET
68718600 (1) Full qty
17
SCREW
68391900 (12) Full qty
18
FAN
68391000 (1) Full qty
18
FAN
68615800 (1) Full qty
19
New       £ 70.97
66855200 (1) Full qty
AC00186n
20
FILTER COVER
68390600 (1) Full qty
21
COVER FASTENER
68390700 (1) Full qty
22
ELECTRIC WIRING HARNESS
68391200 (1) Full qty
22
ELECTRIC WIRING HARNESS
68615900 (1) Full qty
23
AIR SENSOR
68390100 (2) Full qty
24
RUBBER PAD
68389800 (5) Full qty
25
WATER PIPE FILLER FOAM
68391500 (1) Full qty
26
INLET FILLER FOAM
68389500 (1) Full qty
27
DEFROSTER DUCT FILLER FOAM
68390000 (1) Full qty
28
FRONT FILLER FOAM
68391800 (1) Full qty
29
PREFORMED FREON PIPE ASSEMBLY
68390200 (1) Full qty
30
GUARD
68391400 (1) Full qty
31
BRACKET
68390300 (1) Full qty
32
GASKET
68389400 (1) Full qty
33
TGK VALVE
68391100 (1) Full qty
34
VALVE FILLER FOAM
68389600 (1) Full qty
35
O-RING
68391300 (1) Full qty
36
O-RING
66309300 (1) Full qty
37
uPPER FLANGE
64281500 (1) Full qty
38
O.R. GASKET
66309500 (1) Full qty
39
O.R. GASKET
66309400 (1) Full qty
40
FRONT FLANGE
67588300 (1) Full qty
41
BRACKET
68391700 (1) Full qty
42
CLAMP
178053 (2) Full qty
43
Bracket
10441790 (1) Full qty
44
ADHESIVE FOAM
68296400 (1) Full qty
45
Screw
13274111 (4) Full qty
46
Washer
12637801 (4) Full qty
47
WASHER
12640624 (2) Full qty
48
Washer
12647701 (1) Full qty
49
GASKET
67612600 (1) Full qty
49
GASKET
67852500 (1) Full qty
50
SCREW
10978024 (5) Full qty
51
Screw
10977724 (1) Full qty
52
Washer
127493 (6) Full qty
53
WASHER
12637824 (6) Full qty
54
RH BRACKET
67439100 (1) Full qty
54
LH BRACKET
67452700 (1) Full qty
55
LH BRACKET
67439200 (1) Full qty
56
SCREW
16286024 (4) Full qty
57
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
58
WASHER
12643724 (4) Full qty
59
GASKET
68298300 (2) Full qty
60
Actuator
68887800 (1) Full qty
60
Actuator
69050700 (1) Full qty
61
Actuator
69050000 (1) Full qty
62
Actuator
69050300 (1) Full qty
63
Actuator
69050100 (1) Full qty
64
Actuator
69050200 (1) Full qty
65
Actuator
68886800 (1) Full qty
66
Actuator
69050500 (1) Full qty
67
Actuator
68886700 (1) Full qty
68
Actuator
69050600 (1) Full qty
69
Actuator
68887700 (1) Full qty
70
Actuator
69050400 (1) Full qty
71
ACTUATOR PIN
81235000 (1) Full qty
72
ACTUATOR ROD
81235100 (1) Full qty
73
LID ROD
81235200 (1) Full qty
74
ACTUATOR ROD
81235300 (1) Full qty
75
LID FLANGE
81562000 (1) Full qty
