Parking Brake Control

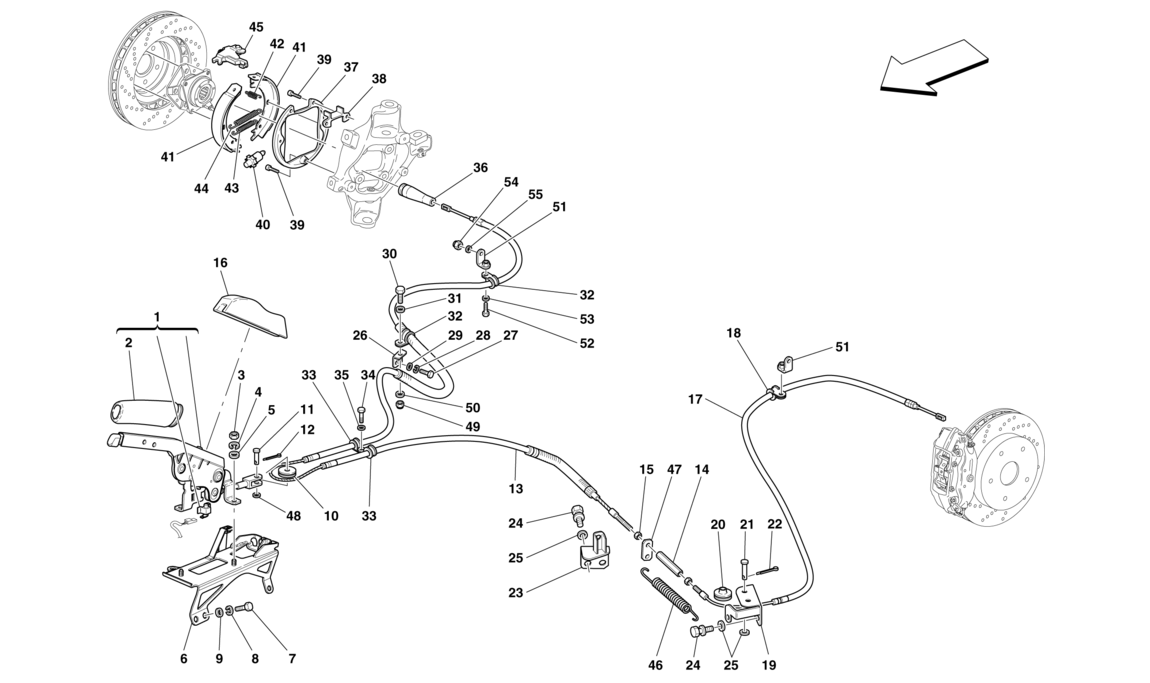

Schematic: Parking  Brake Control
Loc
Part
Cond       Price
1
COMPL. PARKING BRAKE LEVER
807691.. (1) Full qty
2
GRIP FOR LEVER
197229 (1) Full qty
3
L.H. nut
16102111 (2) Full qty
4
WASHER
14496524 (2) Full qty
5
Do Not Use - See GE07667n
12601374 (2) Full qty
5
New       £ 0.12
12601374 (2) Full qty
CH11905n
6
ARM MOUNTING BRACKET
194611 (1) Full qty
6
ARM MOUNTING BRACKET
254586 (1) Full qty
6
ARM MOUNTING BRACKET
239564 (1) Full qty
7
SCREW
16043434 (5) Full qty
8
Wavy Lock Washer 8mm
127496 (5) Full qty
9
WASHER
14496524 (5) Full qty
10
PULLEY
122091 (1) Full qty
11
Clevis Pin
10050814 (1) Full qty
12
SPLIT PIN
10734208 (1) Full qty
13
PARKING BRAKE CABLE
194610 (1) Full qty
13
PARKING BRAKE CABLE
218117 (1) Full qty
13
PARKING BRAKE CABLE
249357 (1) Full qty
14
Brake Adjuster
10091014 (1) Full qty
15
New       Price on Enquiry
10727314 (1) Full qty
BS00686n
16
FOAM LINING
67930400 (1) Full qty
17
LH HANDBRAKE CABLE
195103 (1) Full qty
17
LH HANDBRAKE CABLE
245869 (1) Full qty
17
LH HANDBRAKE CABLE
249358 (1) Full qty
18
BRACKET WITH SHEATH -D. 12-
10441390 (1) Full qty
19
BRACKET
198391 (1) Full qty
20
PULLEY
176261 (1) Full qty
21
PIN
10041214 (2) Full qty
22
SPLIT PIN
10734208 (2) Full qty
23
BRACKET
198392 (1) Full qty
24
SCREW
11668934 (7) Full qty
24
SCREW -M8 X 16-
16287024 (7) Full qty
25
Washer
12646724 (7) Full qty
26
RH BRACKET
198393 (1) Full qty
27
SCREW
11668934 (2) Full qty
28
Washer
12646724 (2) Full qty
29
WASHER
10571779 (2) Full qty
30
SCREW
10902224 (1) Full qty
31
WASHER
12605374 (1) Full qty
31
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
32
BRACKET WITH SHEATH -D. 12-
10441390 (2) Full qty
33
Clamp
10441290 (2) Full qty
33
BRACKET WITH SHEATH -D. 12-
10441390 (2) Full qty
34
SCREW
10902524 (1) Full qty
35
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
36
GUIDE PIPE
192721 (2) Full qty
37
uPPER BRAKE SHOW COTTER
186574 (2) Full qty
38
PLATE
190814 (2) Full qty
39
SCREW -M6 X 14-
190870 (6) Full qty
40
ADJUSTER
186572 (2) Full qty
41
COMPLETE BRAKE SHOE
194876 (4) Full qty
41
COMPLETE BRAKE SHOE
206885 (4) Full qty
42
SPRING
190780 (4) Full qty
43
SPRING
190779 (2) Full qty
44
SPRING
190776 (2) Full qty
45
HANDBRAKE LEVER
194060 (2) Full qty
45
HAND BRAKE CONTROL LEVER -No l…
234658 (2) Full qty
46
New       Price on Enquiry
104895 (1) Full qty
PB14046n
47
PLATE
209448 (1) Full qty
48
Do Not Use - See GE07667n
12601374 (1) Full qty
48
New       £ 0.12
12601374 (1) Full qty
CH11905n
49
Nut
102741 (1) Full qty
50
WASHER
14499324 (1) Full qty
51
Bracket
142060 (2) Full qty
52
SCREW
10902224 (2) Full qty
52
SCREW -M6 X 14-
10902124 (2) Full qty
53
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
54
NUT
169180 (2) Full qty
55
Washer
12638177 (2) Full qty
55
WASHER
12638178 (2) Full qty
