Ac System Water Pipes

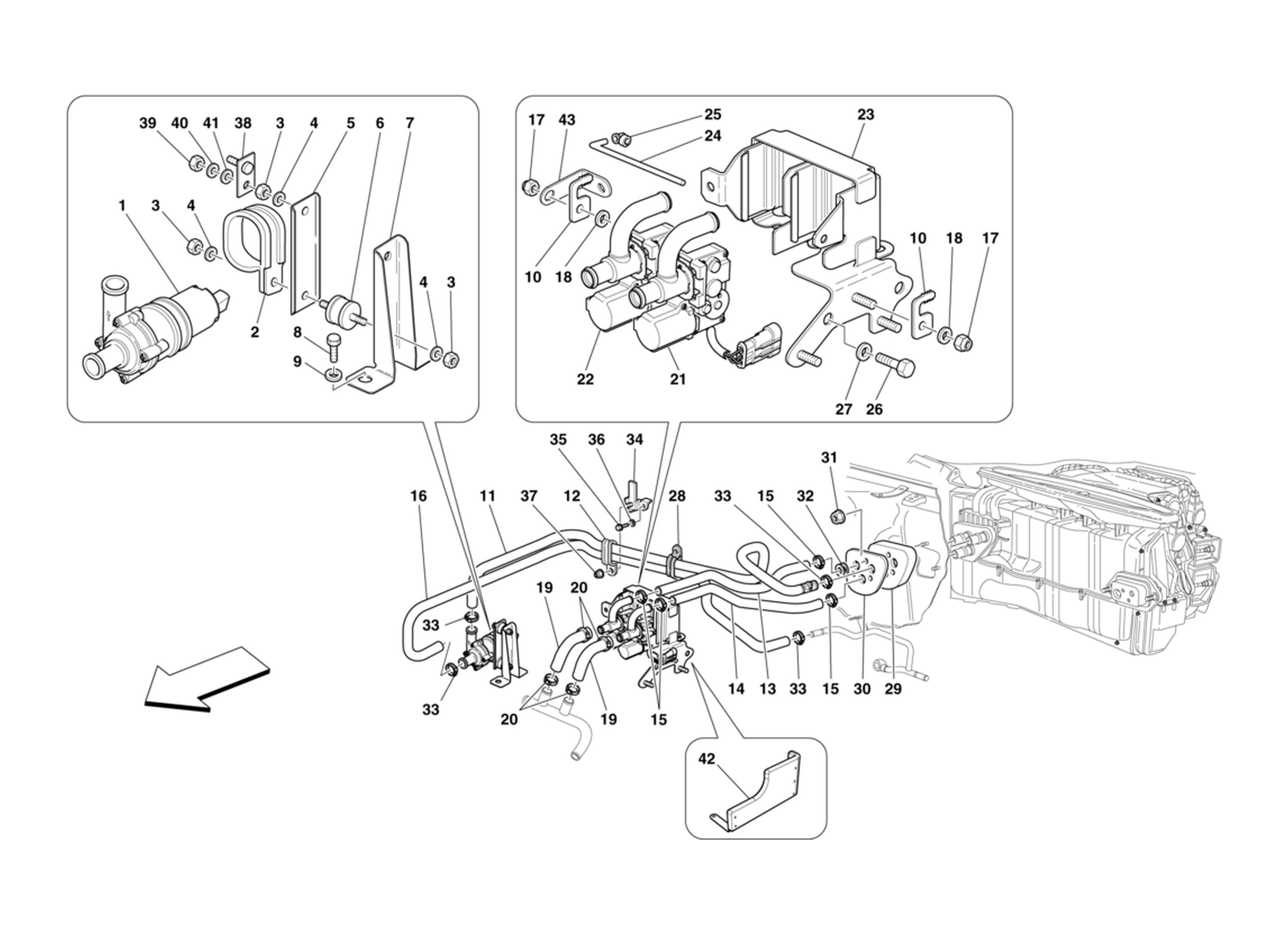

Schematic: Ac System Water Pipes
Loc
Part
Cond       Price
1
WATER RECIRCULATION PUMP
65460300 (1) Full qty
2
Bracket
107002 (1) Full qty
3
NUT
15896214 (4) Full qty
4
Spring washer
10571570 (4) Full qty
5
PUMP MOUNTING BRACKET
69966100 (1) Full qty
6
PLUG
195373 (2) Full qty
7
PUMP MOUNTING BRACKET
67925600 (1) Full qty
8
SCREW -M6 X 14-
16296924 (2) Full qty
9
Washer
12647701 (2) Full qty
10
CLIP
162606 (2) Full qty
11
DELIVERY PIPE FROM PUMP TO HEA…
255291 (1) Full qty
11
DELIVERY PIPE FROM PUMP TO HEA…
262468 (1) Full qty
12
Clamp
10442290 (1) Full qty
12
BRACKET WITH SHEATH
80201900 (1) Full qty
13
PIPE FROM HEATER TO RH TGK
251561 (1) Full qty
13
PIPE FROM HEATER TO RH TGK
251562 (1) Full qty
14
PIPE FROM HEATER TO LH TGK
251559 (1) Full qty
14
PIPE FROM HEATER TO LH TGK
251560 (1) Full qty
15
Clamp
13000390 (4) Full qty
16
DELIVERY PIPE
241896 (1) Full qty
16
DELIVERY PIPE
262467 (1) Full qty
17
NUT
228265 (2) Full qty
18
Washer 1.6mm 6.4x11.95x1.6
10519424 (2) Full qty
19
RUBBER PIPE
67944500 (2) Full qty
20
Clamp
13000390 (4) Full qty
21
LH CYLINDER BANK TGK VALVE
67444900 (1) Full qty
22
RH CYLINDER BANK TGK VALVE
67635900 (1) Full qty
23
TGK VALVE MOUNTING BRACKET
67944400 (1) Full qty
24
TGK VALVE FASTENER ROD
67933600 (1) Full qty
25
TIE-ROD RETAINER CLIP
64215300 (1) Full qty
26
SCREW -M6 X 14-
16296924 (3) Full qty
27
WASHER
12620474 (3) Full qty
28
Bracket D. 28
61712600 (1) Full qty
29
PIPE SEAL
67628400 (1) Full qty
30
PLATE
67628500 (1) Full qty
31
NUT
14054513 (3) Full qty
32
SHIM
67628300 (3) Full qty
33
Clamp
13000390 (4) Full qty
33
Clamp
13000490 (1) Full qty
34
BRACKET
68568400 (1) Full qty
35
SCREW
16286024 (1) Full qty
36
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
37
NUT
15896214 (1) Full qty
38
PLATE
159386 (1) Full qty
39
NUT
15896214 (1) Full qty
40
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
41
WASHER
12643724 (1) Full qty
42
TGK VALVE SHIELD
262529 (1) Full qty
42
TGK VALVE SHIELD
269079 (1) Full qty
43
BRACKET
219946 (1) Full qty
