Ac System Freon Pipes

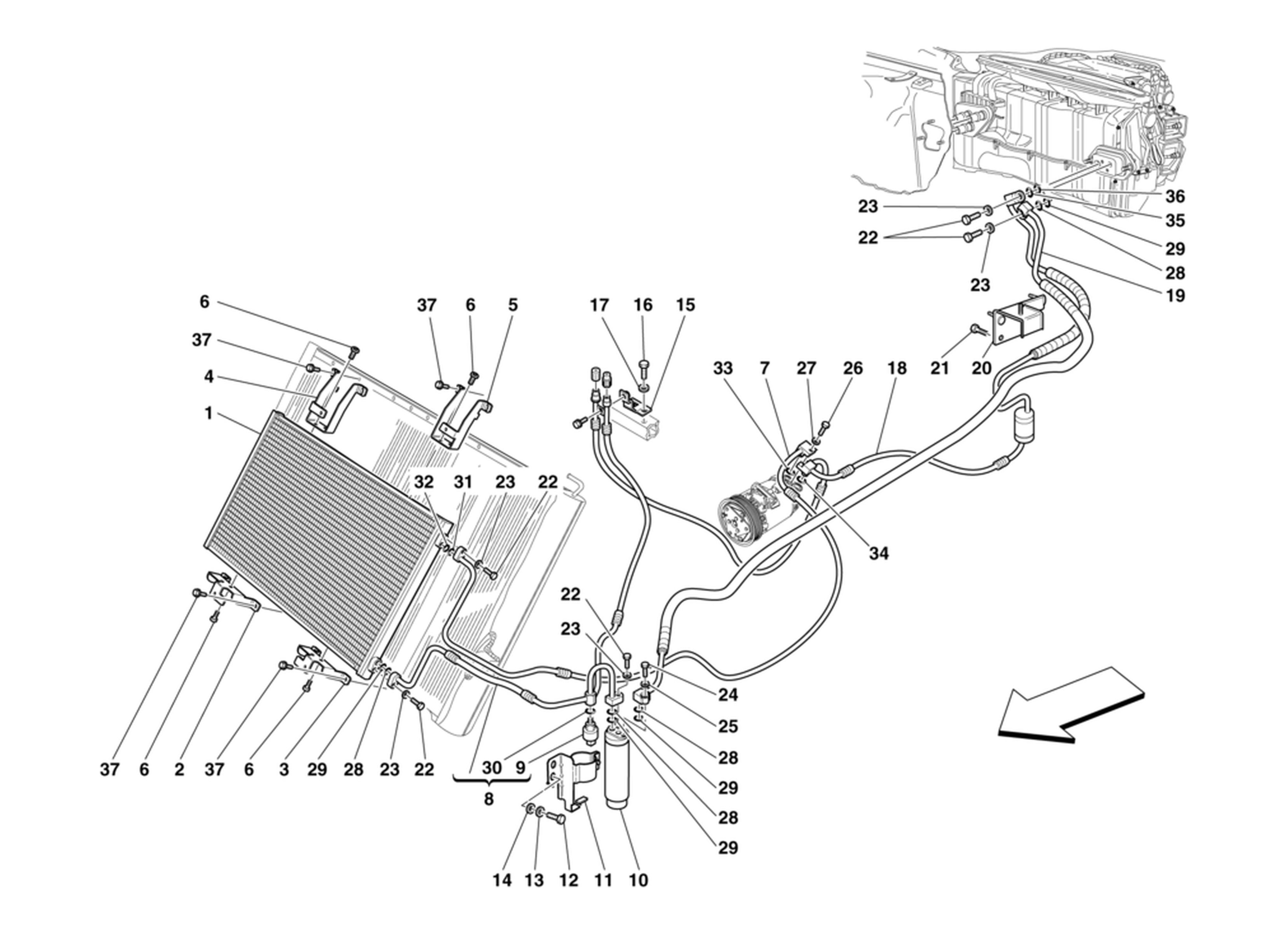

Schematic: Ac System Freon Pipes
Loc
Part
Cond       Price
1
AC CONDENSER
202285 (1) Full qty
2
LOWER RH BRACKET
217745 (1) Full qty
3
LOWER LH BRACKET
217746 (1) Full qty
4
UPPER RH BRACKET
217747 (1) Full qty
5
UPPER LH BRACKET
217748 (1) Full qty
6
SCREW
226135 (8) Full qty
7
GAS PIPE FROM COMPRESSOR TO CO…
67949800 (1) Full qty
8
GAS PIPE FROM CONDENSER TO FIL…
67949600 (1) Full qty
9
PRESSURE SWITCH
66374400 (1) Full qty
10
New       Price on Enquiry
67085100 (1) Full qty
AC00188n
11
DEHYDRATOR FILTER MOUNTING BRA…
67950000 (1) Full qty
12
SCREW
13836971 (2) Full qty
13
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
14
WASHER
12643724 (2) Full qty
15
PIPE MOUNTING BRACKET
68570700 (1) Full qty
16
SCREW
13833614 (1) Full qty
17
WASHER
12638124 (1) Full qty
18
COMPRESSOR INTAKE PIPE
67949900 (1) Full qty
19
GAS PIPE FROM FILTER TO EVAPOR…
67949700 (1) Full qty
19
GAS PIPE FROM FILTER TO EVAPOR…
83576700 (1) Full qty
19
GAS PIPE FROM FILTER TO EVAPOR…
83576700 (1) Full qty
20
PIPE MOUNTING BRACKET
69246600 (1) Full qty
21
SCREW -M6 X 16-
11625724 (2) Full qty
22
SCREW
10902624 (5) Full qty
23
WASHER
11193274 (5) Full qty
24
SCREW -M6 X 14-
16296924 (1) Full qty
25
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
26
SCREW -M8 X 40-
16044024 (1) Full qty
27
Do Not Use - See GE07667n
12601374 (1) Full qty
27
New       £ 0.12
12601374 (1) Full qty
CH11905n
28
O-RING
68392000 (4) Full qty
29
O-RING
68392100 (4) Full qty
29
O-RING
68392100 (4) Full qty
30
O-RING
66309600 (1) Full qty
31
O-RING
68392700 (1) Full qty
32
O-RING
66309700 (1) Full qty
33
O.R. GASKET
66309400 (1) Full qty
34
O.R. GASKET
66309500 (1) Full qty
35
O-RING
66309800 (1) Full qty
36
O-RING
68392800 (1) Full qty
37
SCREW -M5 X 16-
16285127 (8) Full qty
