Secondary Air System

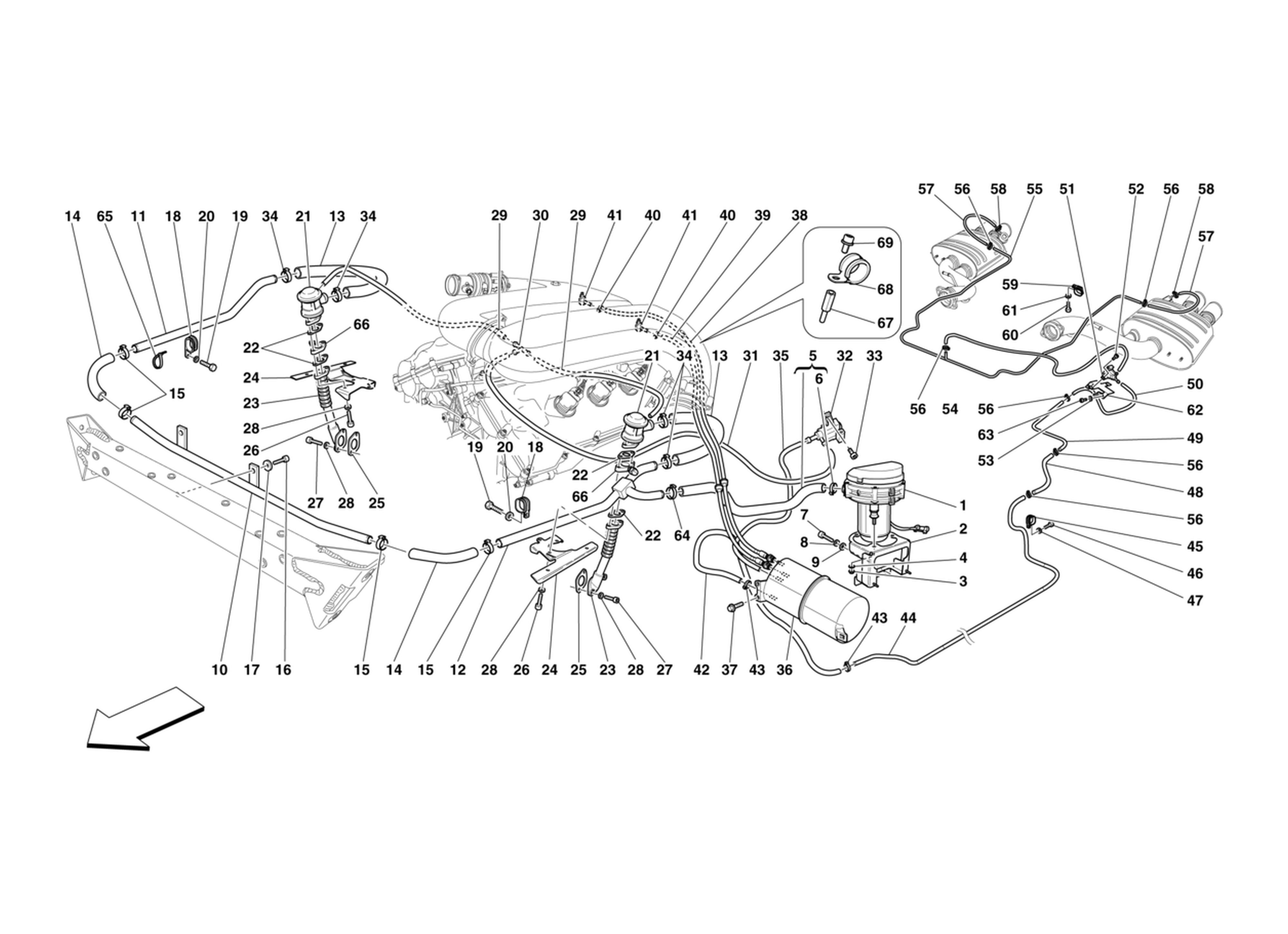

Schematic: Secondary Air System
Schematic: Secondary Air System
Loc
Part
Cond       Price
1
SECONDARY AIR SYSTEM PUMP
247795 (1) Full qty
2
PUMP MOUNTING BRACKET
249339 (1) Full qty
3
NUT
15896214 (3) Full qty
4
Washer
New       Price on Enquiry
12601274 (3) Full qty
CC11576n
5
RUBBER PIPE
252008 (1) Full qty
6
RING CLAMP
178054 (1) Full qty
7
SCREW
16286024 (2) Full qty
8
Washer
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
9
WASHER
12643724 (2) Full qty
10
CENTRAL PIPE
223006 (1) Full qty
11
RH SECONDARY AIR PIPE
212872 (1) Full qty
12
LH SECONDARY AIR PIPE
212874 (1) Full qty
13
Pipe, union to empty reservoir…
118502 (1) Full qty
13
Pipe from plug to solenoid val…
115412 (1) Full qty
14
CONNECTOR PIPE
213165 (2) Full qty
15
RING CLAMP
178054 (4) Full qty
15
COLLAR
13432970 (4) Full qty
16
SCREW -M6 X 14-
16296924 (2) Full qty
17
WASHER
12620474 (2) Full qty
18
Bracket
10441790 (4) Full qty
19
SCREW
16286024 (4) Full qty
20
WASHER
12604274 (4) Full qty
21
SECONDARY AIR SYSTEM VALVE
171175 (2) Full qty
22
Secondary Air Pipe Gasket
New       Price on Enquiry
186781 (2) Full qty
EX10818n
23
PIPE FROM AIR VALVE TO RH HEAD…
256598 (1) Full qty
23
PIPE FROM AIR VALVE TO LH HEAD…
256596 (1) Full qty
24
RH VALVE FASTENER BRACKET
258254 (1) Full qty
24
LH VALVE FASTENER BRACKET
258252 (1) Full qty
25
GASKET
202980 (2) Full qty
26
SCREW
10902624 (4) Full qty
27
SCREW -M6 X 40-
231623 (2) Full qty
27
SCREW -M6 X 20-
231618 (2) Full qty
28
Washer
New       Price on Enquiry
12601274 (8) Full qty
CC11576n
29
Pipe, union to empty reservoir…
118502 (1) Full qty
29
Pipe from plug to solenoid val…
115412 (1) Full qty
30
THREE WAY
257691 (1) Full qty
31
RUBBER PIPE
225102 (1) Full qty
32
ON/OFF SOLENOID VALVE
184363 (1) Full qty
33
SCREW
14304124 (2) Full qty
34
COLLAR FOR HOSE UNION
13432908 (4) Full qty
35
Pipe
124790 (1) Full qty
36
VACUUM ACCUMULATOR TANK
220374 (1) Full qty
37
SCREW
16286024 (3) Full qty
38
RH VACUUM PIPE
263936 (1) Full qty
39
LH VACUUM PIPE
263937 (1) Full qty
40
COLLAR FOR SLEEVE
13431870 (2) Full qty
41
CONNECTOR
174818 (2) Full qty
42
RUBBER PIPE
225466 (1) Full qty
43
COLLAR FOR SLEEVE
13432270 (2) Full qty
44
UNDERFLOOR PIPE
226523 (1) Full qty
45
BRACKET WITH SHEATH
172842 (1) Full qty
46
SCREW -M6 X 14-
16296924 (1) Full qty
47
Washer
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
48
RUBBER PIPE
224771 (1) Full qty
49
PIPE FROM TANK TO REAR
224761 (1) Full qty
50
RUBBER PIPE
220751 (1) Full qty
51
ON/OFF SOLENOID VALVE
184363 (1) Full qty
52
SCREW -M5 X 10-
14304024 (2) Full qty
53
Washer
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
54
Pipe, union to empty reservoir…
118502 (1) Full qty
55
CENTRE REAR PIPE
220512 (1) Full qty
56
COLLAR -D. 15.7-
13432070 (6) Full qty
57
RUBBER PIPE
220641 (2) Full qty
58
COLLAR FOR SLEEVE
171406 (2) Full qty
59
Clamp
10441190 (4) Full qty
60
SCREW -M6 X 14-
16296924 (4) Full qty
61
Washer
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
62
BRACKET
220066 (1) Full qty
63
SCREW -M6 X 14-
16296924 (2) Full qty
64
RING CLAMP
178054 (1) Full qty
65
Heat Proof Zip Ties
New       Price on Enquiry
206739 (1) Full qty
EX10382n
66
SPACER ASSEMBLY
264020 (2) Full qty
67
STUD BOLT
232777 (1) Full qty
68
Strap
10441990 (1) Full qty
69
SCREW -M6 X 12-
233600 (1) Full qty
