Clutch And Controls -Not For F1-

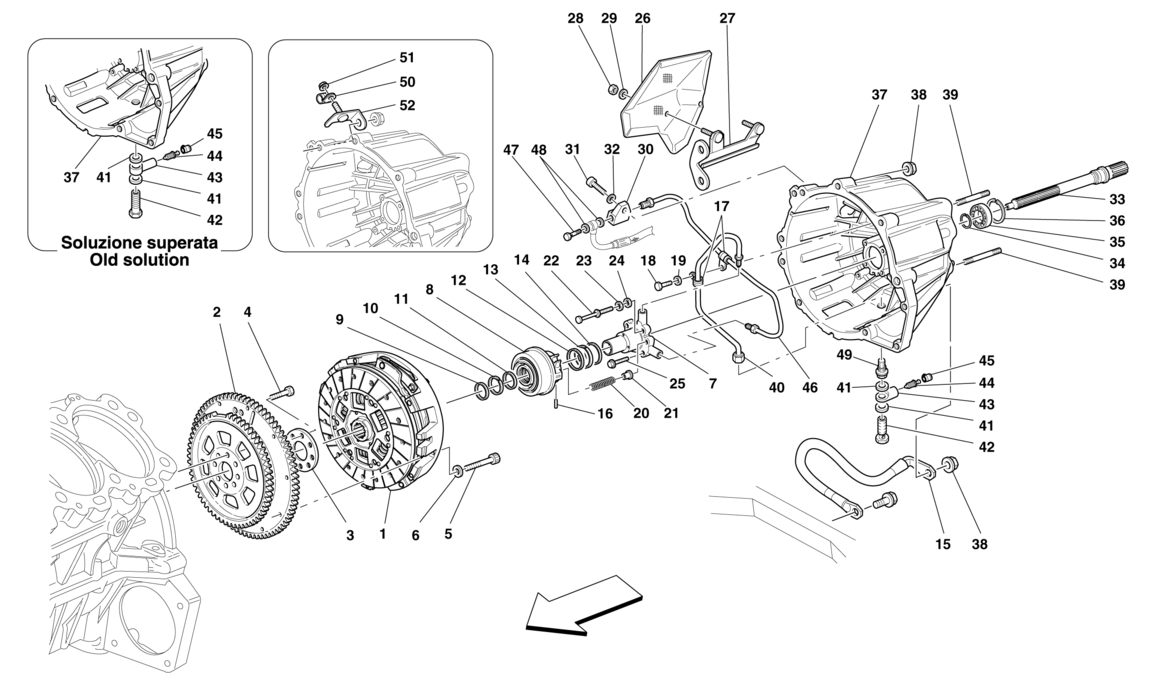

Schematic: Clutch And Controls -Not For F1-
Loc
Part
Cond       Price
1
COMPLETE CLUTCH
222277 (1) Full qty
2
ENGINE FLYWHEEL WITH TOOTHED W…
185983 (1) Full qty
2
Flywheel (Enzo)
230426 (1) Full qty
3
Flywheel Washer
103876 (1) Full qty
4
New       Price on Enquiry
201755 (8) Full qty
CL00003n
5
SCREW -Not for DCT gearbox-
216771 (9) Full qty
6
WASHER
11194377 (9) Full qty
6
Clutch Cover Spring Washer 430…
11194379 (9) Full qty
7
BEARING MOUNTING FLANGE -Not f…
182952 (1) Full qty
8
New       Price on Enquiry
201024 (1) Full qty
CL11584n
8
New       Price on Enquiry
234943 (1) Full qty
CL11630n
8
New       £ 358.09
201024 (1) Full qty
CL11818n
8
New       £ 349.80
201024 (1) Full qty
CL11820n
9
New       Price on Enquiry
172970 (1) Full qty
CL11574n
10
New       Price on Enquiry
208014 (1) Full qty
CL11628n
11
New       Price on Enquiry
172972 (1) Full qty
CL11578n
12
New       Price on Enquiry
154508 (1) Full qty
CL11560n
13
New       Price on Enquiry
154507 (1) Full qty
CL11558n
13
New       Price on Enquiry
170419 (1) Full qty
CL11564n
14
New       Price on Enquiry
154551 (1) Full qty
CL11562n
15
GROUND BRAID
217292 (1) Full qty
16
Flex Pin
14604170 (1) Full qty
16
New       Price on Enquiry
14158570 (1) Full qty
CL12026n
17
Pipe supporting backet
10440990 (2) Full qty
18
SCREW
14305334 (1) Full qty
19
WASHER
12604274 (1) Full qty
20
Clutch Housing Spring
155207 (2) Full qty
21
New       Price on Enquiry
155206 (2) Full qty
CL11582n
22
End of Stroke Stud Steel 599/C…
182955 (2) Full qty
23
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
24
Washer 1.6mm 6.4x11.95x1.6
10519424 (2) Full qty
25
SCREW
16286224 (2) Full qty
26
HEAT SHIELD
214806 (1) Full qty
27
SHIELD MOUNTING BRACKET
227140 (1) Full qty
28
NUT
14048615 (2) Full qty
28
NUT
14048611 (2) Full qty
29
WASHER -No longer supplied- -R…
13577701 (2) Full qty
30
Rear union
139471 (1) Full qty
31
SCREW
14305534 (1) Full qty
32
WASHER
100660 (1) Full qty
33
CLUTCH SHAFT
200102 (1) Full qty
34
STOP RING
144511 (1) Full qty
35
BEARING
174470 (1) Full qty
36
STOP RING
182963 (1) Full qty
37
CLUTCH HOUSING
223003 (1) Full qty
37
CLUTCH HOUSING
230070 (1) Full qty
38
NUT
156462 (7) Full qty
39
STUD BOLT
13546334 (8) Full qty
40
BLEED SYSTEM PIPE
223001 (1) Full qty
41
GASKET
10261160 (2) Full qty
41
GASKET
10284460 (2) Full qty
42
PIPE UNION
223000 (1) Full qty
42
PIPE UNION
230064 (1) Full qty
43
RING
223002 (1) Full qty
43
RING
230065 (1) Full qty
44
Bleed Screw
152954 (1) Full qty
45
PROTECTION BOOT
152955 (1) Full qty
46
OIL DELIVERY PIPE
219575 (1) Full qty
47
PIPE UNION
10185011 (1) Full qty
47
UNION
171454 (1) Full qty
48
Gasket
10261060 (2) Full qty
49
THREADED BUSHING
230067 (1) Full qty
50
Pipe supporting backet
10440990 (1) Full qty
51
NUT
14058419 (1) Full qty
52
CLUTCH PIPE FASTENER BRACKET
225038 (1) Full qty
