Cooling System - Radiator And Header Tank

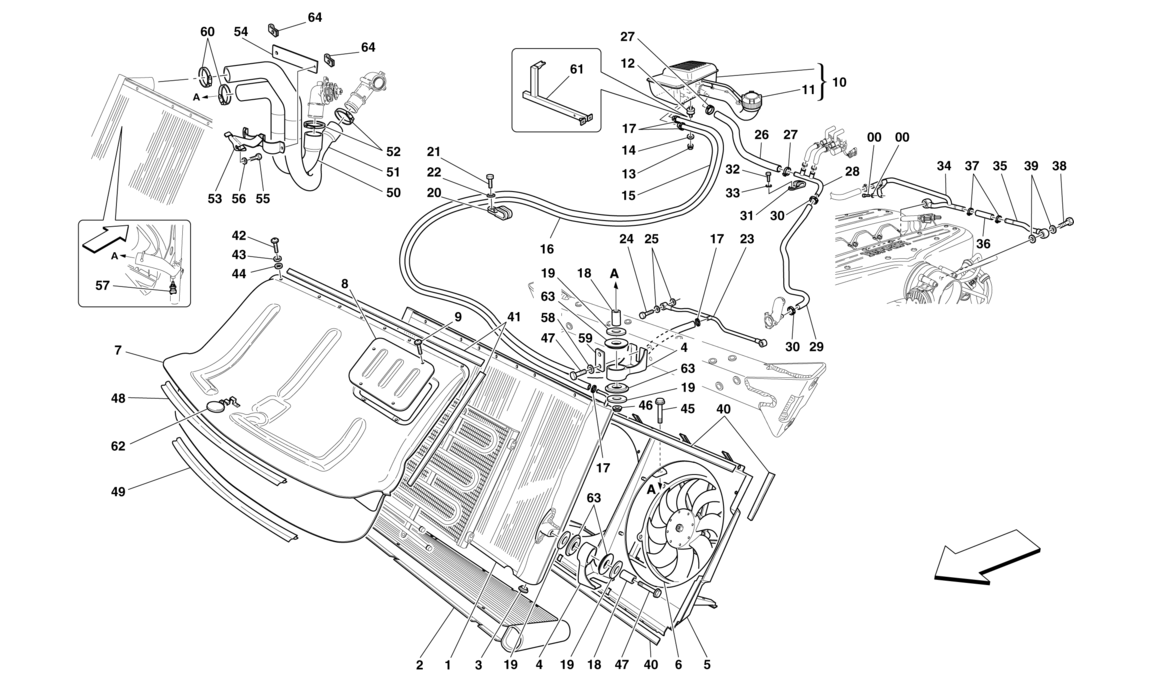

Schematic: Cooling System - Radiator And Header Tank
Schematic: Cooling System - Radiator And Header Tank
Loc
Part
Cond       Price
1
WATER RADIATOR
227454 (1) Full qty
2
ENGINE OIL RADIATOR
213499 (1) Full qty
3
RUBBER PAD FOR PIN
138926 (2) Full qty
4
CENTRE MOUNTING BRACKET FOR RA…
213559 (3) Full qty
5
COWL FOR ELECTRIC FAN
220330 (1) Full qty
6
ELECTRIC FAN
212730 (2) Full qty
7
WATER RADIATOR DUCT
67891100 (1) Full qty
7
WATER RADIATOR DUCT
69370900 (1) Full qty
8
COVER PLATE
69012000 (1) Full qty
9
SCREW -M5 X 12-
65366700 (4) Full qty
10
HEADER TANK
217364 (1) Full qty
10
HEADER TANK
235263 (1) Full qty
11
HEADER TANK CAP
195999 (1) Full qty
12
Fuel Pump Mounting
102947 (3) Full qty
12
Mount
New       Price on Enquiry
102947 (3) Full qty
GE00644n
13
NUT
15896214 (1) Full qty
14
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
15
PIPE FROM RADIATOR TO HEADER T…
218593 (1) Full qty
15
PIPE FROM RADIATOR TO HEADER T…
250802 (1) Full qty
16
PIPE FROM ENGINE TO HEADER TAN…
218592 (1) Full qty
16
PIPE FROM ENGINE TO HEADER TAN…
250801 (1) Full qty
17
RING CLAMP
177995 (4) Full qty
18
BUSHING
216582 (3) Full qty
18
BUSHING
227431 (3) Full qty
19
WASHER
216581 (6) Full qty
19
WASHER
227430 (6) Full qty
20
Clamp
10442290 (1) Full qty
21
SCREW
16286024 (1) Full qty
22
WASHER
12620474 (1) Full qty
23
WATER DRAIN PIPE
220821 (1) Full qty
24
PIPE UNION
211847 (2) Full qty
25
Copper washer
10260160 (4) Full qty
26
PIPE FROM CONNECTOR TO HEADER …
218148 (1) Full qty
27
COLLAR FOR HOSE UNION
186680 (2) Full qty
28
4-WAY CONNECTOR
67944600 (1) Full qty
29
PREFORMED PIPE
202612 (1) Full qty
29
PREFORMED PIPE
232219 (1) Full qty
29
PREFORMED PIPE
254103 (1) Full qty
30
Clamp
13000490 (2) Full qty
31
Bracket
10441790 (1) Full qty
32
SCREW -M6 X 14-
16296924 (1) Full qty
33
Washer
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
34
RH CYLINDER HEAD WATER PIPE
224464 (1) Full qty
34
RH CYLINDER HEAD WATER PIPE
229341 (1) Full qty
34
RH CYLINDER HEAD WATER PIPE
239981 (1) Full qty
34
RH HEAD WATER PIPE
248423 (1) Full qty
35
LH CYLINDER HEAD WATER PIPE
210980 (1) Full qty
35
LH HEAD WATER PIPE
239553 (1) Full qty
36
SLEEVE
203784 (1) Full qty
36
SLEEVE
210726 (1) Full qty
36
CONNECTOR PIPE
235080 (1) Full qty
37
CLAMP
178053 (2) Full qty
37
COLLAR FOR HOSE UNION
186680 (2) Full qty
37
RING CLAMP
13433370 (2) Full qty
38
UNION
203787 (2) Full qty
39
Pressure Sensor Washer
New       Price on Enquiry
10259960 (4) Full qty
SU11780n
40
RUBBER SHIM
217759 (3) Full qty
40
RUBBER SHIM
217760 (2) Full qty
40
RUBBER SHIM
225467 (4) Full qty
40
RUBBER SHIM
225468 (3) Full qty
41
UPPER SEAL
69250700 (2) Full qty
41
LOWER SEAL
69250800 (2) Full qty
41
LATERAL SEAL
69250900 (2) Full qty
41
CENTRE SEAL
69850200 (2) Full qty
42
SCREW -M5 X 16-
16285127 (6) Full qty
43
WASHER
166467 (6) Full qty
44
WASHER
12638124 (6) Full qty
45
SCREW
16290234 (3) Full qty
45
SCREW
16287734 (3) Full qty
46
NUT
14058729 (1) Full qty
46
Flanged Nut M8x8
14058519 (1) Full qty
47
SCREW -M8 X 25-
16287224 (3) Full qty
48
UPPER GASKET
69365000 (1) Full qty
48
GASKET
80783800 (1) Full qty
48
GASKET
69966800 (1) Full qty
48
GASKET
80784000 (1) Full qty
48
GASKET
69966900 (1) Full qty
48
GASKET
80784100 (1) Full qty
49
LOWER SEAL
69365100 (1) Full qty
49
LOWER SEAL
80783900 (1) Full qty
50
WATER DELIVERY PIPE
214555 (1) Full qty
50
WATER DELIVERY PIPE
251426 (1) Full qty
51
WATER RETURN PIPE
209972 (1) Full qty
52
40-60cm Hose Clip
New       £ 3.29
13000790 (2) Full qty
CS12027n
53
PIPE MOUNTING
226317 (1) Full qty
54
RETAINER BAR
226395 (1) Full qty
55
SCREW -M5 X 16-
16285127 (2) Full qty
56
WASHER
12647624 (2) Full qty
57
WATER/OIL TEMPERATURE SENSOR
180137 (1) Full qty
58
Do Not Use - See GE07667n
12601374 (2) Full qty
58
Rocker Block Wavy Washer
New       £ 0.12
12601374 (2) Full qty
CH11905n
59
PLATE
223456 (1) Full qty
60
SCREW COLLAR
13000690 (2) Full qty
60
40-60cm Hose Clip
New       £ 3.29
13000790 (2) Full qty
CS12027n
61
BRACKET
68574500 (1) Full qty
62
Plug
14507387 (1) Full qty
63
RUBBER PAD FOR PIN
138926 (6) Full qty
