Power Unit And Tank -Valid For F1-

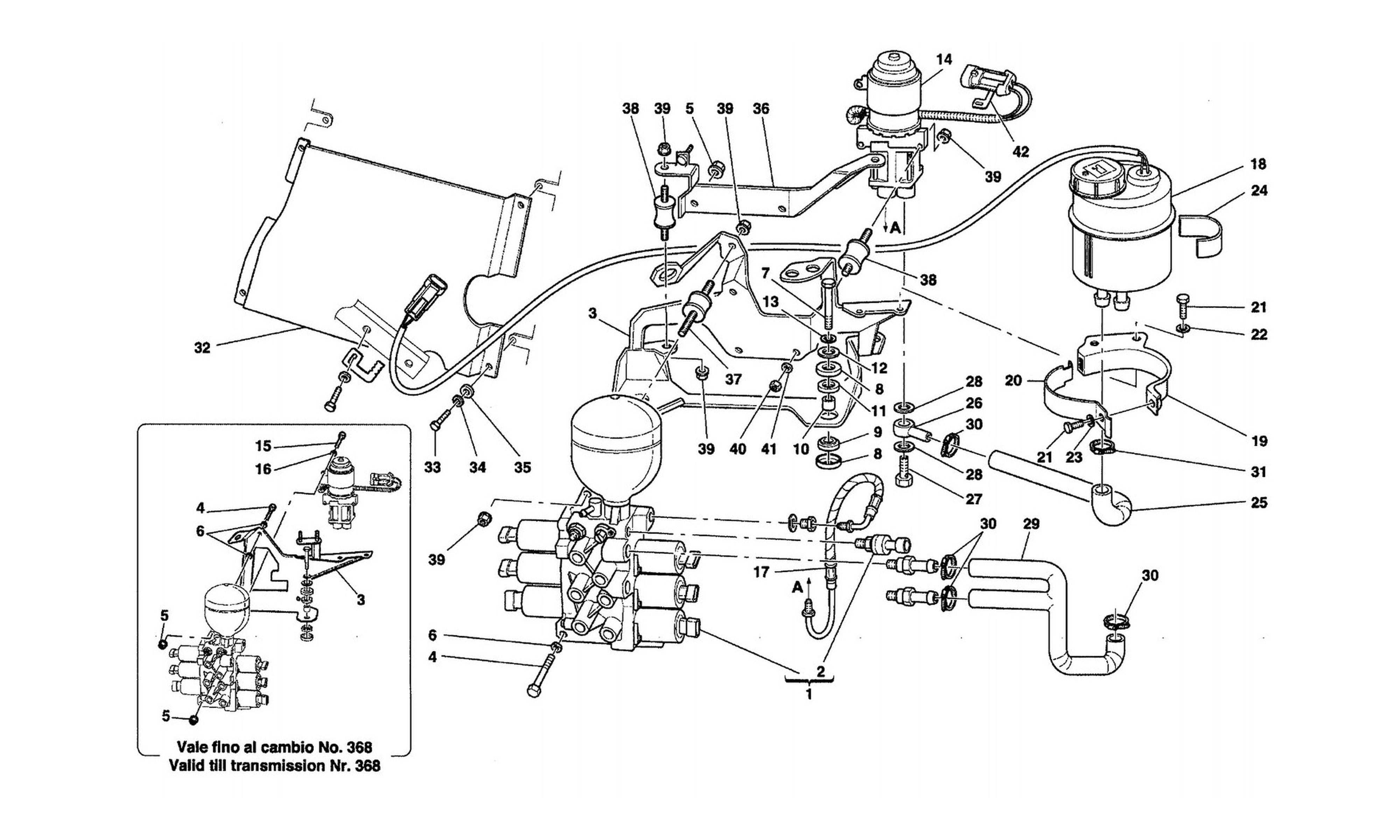

Schematic: Power Unit And Tank -Valid For F1-
Loc
Part
Cond       Price
1
POWER UNIT
179533 (1) Full qty
2
PRESSURE SENSOR
190662 (1) Full qty
3
POWER UNIT SUPPORTING BRACKET
196214 (1) Full qty
3
POWER UNIT SUPPORTING BRACKET…
194331 (1) Full qty
3
POWER UNIT SUPPORTING BRACKET…
185096 (1) Full qty
4
New       £ 0.32
16043834 (2) Full qty
BS00099n
5
NUT
175283 (2) Full qty
6
WASHER
14496524 (2) Full qty
7
SCREW
10903424 (3) Full qty
7
SCREW
10902727 (3) Full qty
7
SCREW
10903224 (3) Full qty
8
CUP
192345 (6) Full qty
8
CUP
179636 (6) Full qty
9
LOWER PAD
192337 (3) Full qty
9
LOWER PAD
179639 (3) Full qty
10
SPACER FOR WICK
192344 (3) Full qty
10
SPACER
179637 (3) Full qty
11
UPPER PAD
192339 (3) Full qty
11
UPPER PAD
179638 (3) Full qty
12
WASHER
12620474 (3) Full qty
13
WASHER
14446627 (3) Full qty
14
ELECTRIC PUMP
213264 (1) Full qty
15
SCREW -M6 X 20- -Fastening bra…
10902424 (3) Full qty
16
WASHER
14496424 (3) Full qty
17
PIPE FROM ELECTRICAL PUMP TO …
185092 (1) Full qty
17
PIPE FROM ELECTRICAL PUMP TO P…
194328 (1) Full qty
18
OIL TANK
188685 (1) Full qty
19
TANK SUPPORT BRACKET
179593 (1) Full qty
20
SUPPORT CLAMP
171746 (1) Full qty
21
SCREW -M6 X 14-
10902124 (3) Full qty
22
WASHER
14496424 (2) Full qty
23
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
24
SMALL PLATE
183718 (1) Full qty
25
PIPE FROM TANK TO PUMP
194330 (1) Full qty
25
PIPE FROM TANK TO PUMP
185094 (1) Full qty
26
SWINGING UNION
184958 (1) Full qty
27
Pipe union
10185111 (1) Full qty
28
GASKET
10280050 (2) Full qty
29
PIPE FROM POWER UNIT TO TANK
185095 (1) Full qty
30
COLLAR
161490 (4) Full qty
31
Clamp
13000390 (1) Full qty
32
ANTI-HEAT SHIELD
184121 (1) Full qty
33
SCREW -M6 X 14-
10902124 (4) Full qty
34
Clutch Bolt Wavy Washer 550/57…
127494 (4) Full qty
35
WASHER
12643724 (4) Full qty
36
POWER UNIT SUPPORTING BRACKET
195187 (1) Full qty
37
PAD
195372 (4) Full qty
37
PAD
194786 (4) Full qty
38
PLUG
195373 (2) Full qty
38
PAD
194787 (2) Full qty
39
NUT
14058421 (9) Full qty
40
New       Price on Enquiry
10725914 (3) Full qty
BS00684n
41
WASHER
12604274 (3) Full qty
42
CLIP
162606 (1) Full qty
