Fuel Supply System

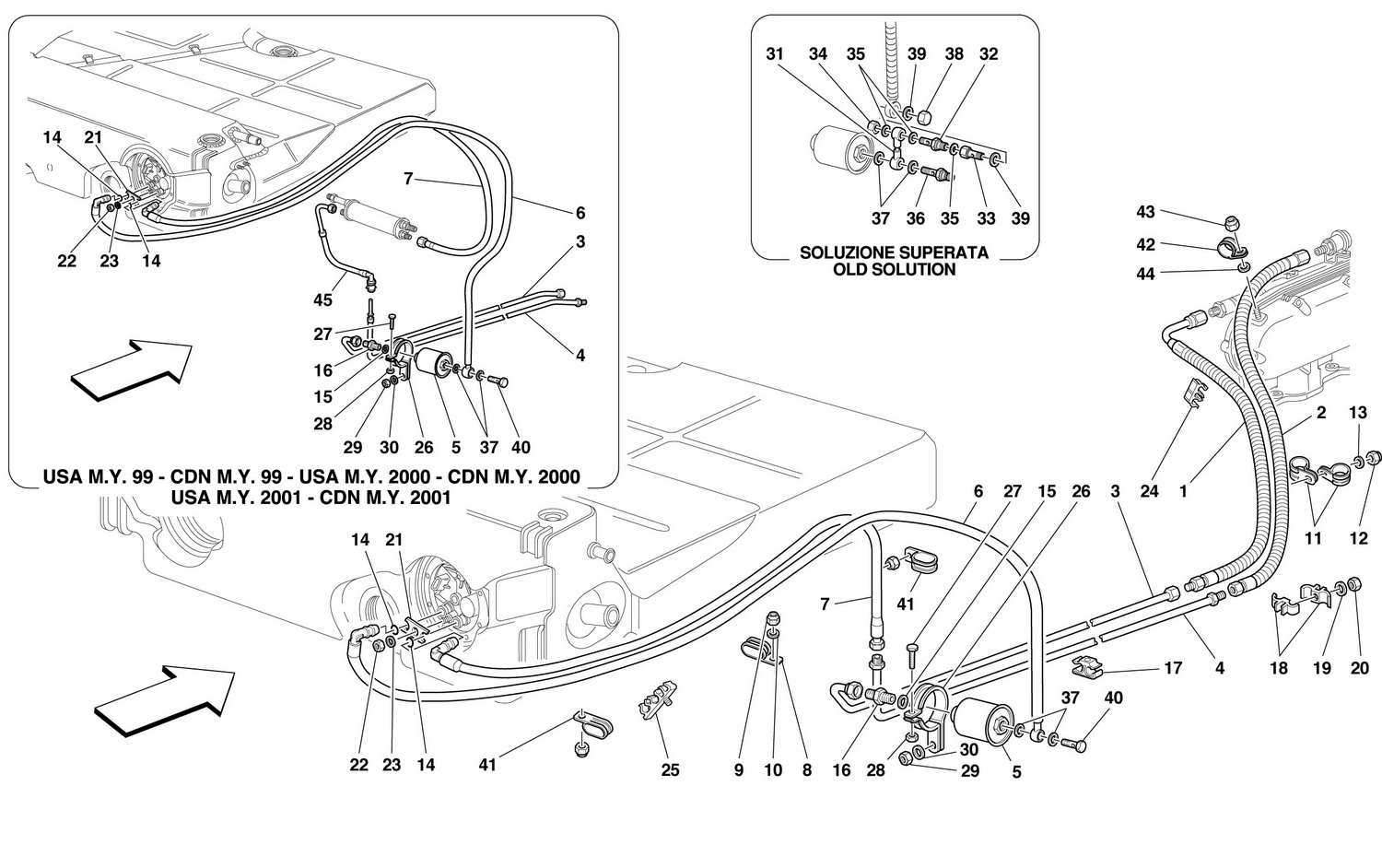

Schematic: Fuel Supply System
Schematic: Fuel Supply System
Loc
Part
Cond       Price
1
L.H. DELIVERY PIPE
178522 (1) Full qty
1
R.H. DELIVERY PIPE
178524 (1) Full qty
1
L.H. DELIVERY PIPE
173857 (1) Full qty
1
R.H. DELIVERY PIPE
173858 (1) Full qty
1
R.H. DELIVERY PIPE
178525 (1) Full qty
1
L.H. DELIVERY PIPE
178523 (1) Full qty
2
L.H. RETURN PIPE
173859 (1) Full qty
2
R.H. RETURN PIPE
178301 (1) Full qty
2
R.H. RETURN PIPE
179165 (1) Full qty
2
R.H. RETURN PIPE
179356 (1) Full qty
2
L.H. RETURN PIPE
179162 (1) Full qty
2
R.H. RETURN PIPE
179164 (1) Full qty
3
R.H. DELIVERY RIGID PIPE
179366 (1) Full qty
3
L.H. DELIVERY RIGID PIPE
166739 (1) Full qty
3
R.H. DELIVERY RIGID PIPE
166738 (1) Full qty
4
R.H. RETURN RIGID PIPE
179365 (2) Full qty
4
L.H. RETURN RIGID PIPE
178777 (2) Full qty
4
R.H. AND L.H. RETURN RIGID PIP…
166740 (2) Full qty
5
Fuel Filter 71042 (087)
186922 (2) Full qty
6
R.H. AND L.H. REAR DELIVERY PI…
166736 (2) Full qty
6
RH/LH Fuel Rear Delivery Pipe
New       Price on Enquiry
170432 (2) Full qty
FU15865n
7
R.H. AND L.H. REAR RETURN PIPE…
170431 (2) Full qty
7
R.H. AND L.H. REAR RETURN PIPE…
182726 (2) Full qty
7
RH/LH Fuel Rear Return Pipe
New       £ 549.95
178778 (2) Full qty
FU15866n
8
Hose fastening bracket
61712500 (1) Full qty
8
Bracket
138478 (1) Full qty
9
Nyloc Nut 6 x 1 x 7.6mm
102948 (2) Full qty
10
WASHER
14499324 (2) Full qty
11
Strap
10441990 (2) Full qty
12
Nyloc Nut 6 x 1 x 7.6mm
102948 (2) Full qty
13
WASHER
14499324 (2) Full qty
14
O-Ring
New       Price on Enquiry
127816 (4) Full qty
GE00310n
15
Gasket
10261060 (2) Full qty
16
Union on delivery side
109797 (2) Full qty
17
CLIP
141699 (12) Full qty
18
CLIP
62658800 (2) Full qty
19
WASHER
14499324 (2) Full qty
20
Nyloc Nut 6 x 1 x 7.6mm
102948 (2) Full qty
21
R.H. SAFETY PLATE
129316 (2) Full qty
22
Nut
14084211 (2) Full qty
23
Washer
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
24
FIXING CLIP
140730 (6) Full qty
25
CLIP
156548 (2) Full qty
26
BRACKET WITH SHEATH
152885 (2) Full qty
27
SCREW -M6 X 20- -Fastening bra…
10902424 (2) Full qty
28
Nut
102741 (2) Full qty
29
8x1.25 lock nut
New       Price on Enquiry
101139 (2) Full qty
GB10400n
30
Washer
12646724 (2) Full qty
31
DOUBLE SWINGING UNION
173034 (2) Full qty
32
Fuel Pump Check Valve
120098 (2) Full qty
33
UNION
173037 (2) Full qty
34
PLUG
171752 (2) Full qty
35
Seal Washer/Gasket
New       Price on Enquiry
10298460 (6) Full qty
EX10416n
36
UNION WITH VALVE
171996 (2) Full qty
37
Washer 14x20x1.5mm
New       £ 1.25
10280060 (4) Full qty
FU00140n
38
THREADED PLUG
10182817 (2) Full qty
39
Washer 14x20x1.5mm
New       £ 1.25
10280060 (4) Full qty
FU00140n
40
UNION
178719 (2) Full qty
41
Pipes fastening bracket
139512 (4) Full qty
42
Bracket
10441790 (2) Full qty
43
Nyloc Nut 6 x 1 x 7.6mm
102948 (2) Full qty
44
WASHER
14499324 (2) Full qty
45
FUEL TUBE FROM EXCHANGER TO RI…
180943 (2) Full qty
45
L.H. FUEL TUBE FROM EXCHANGER …
179364 (1) Full qty
45
R.H. FUEL TUBE FROM EXCHANGER …
179363 (1) Full qty
