Brake System -Valid For Rhd

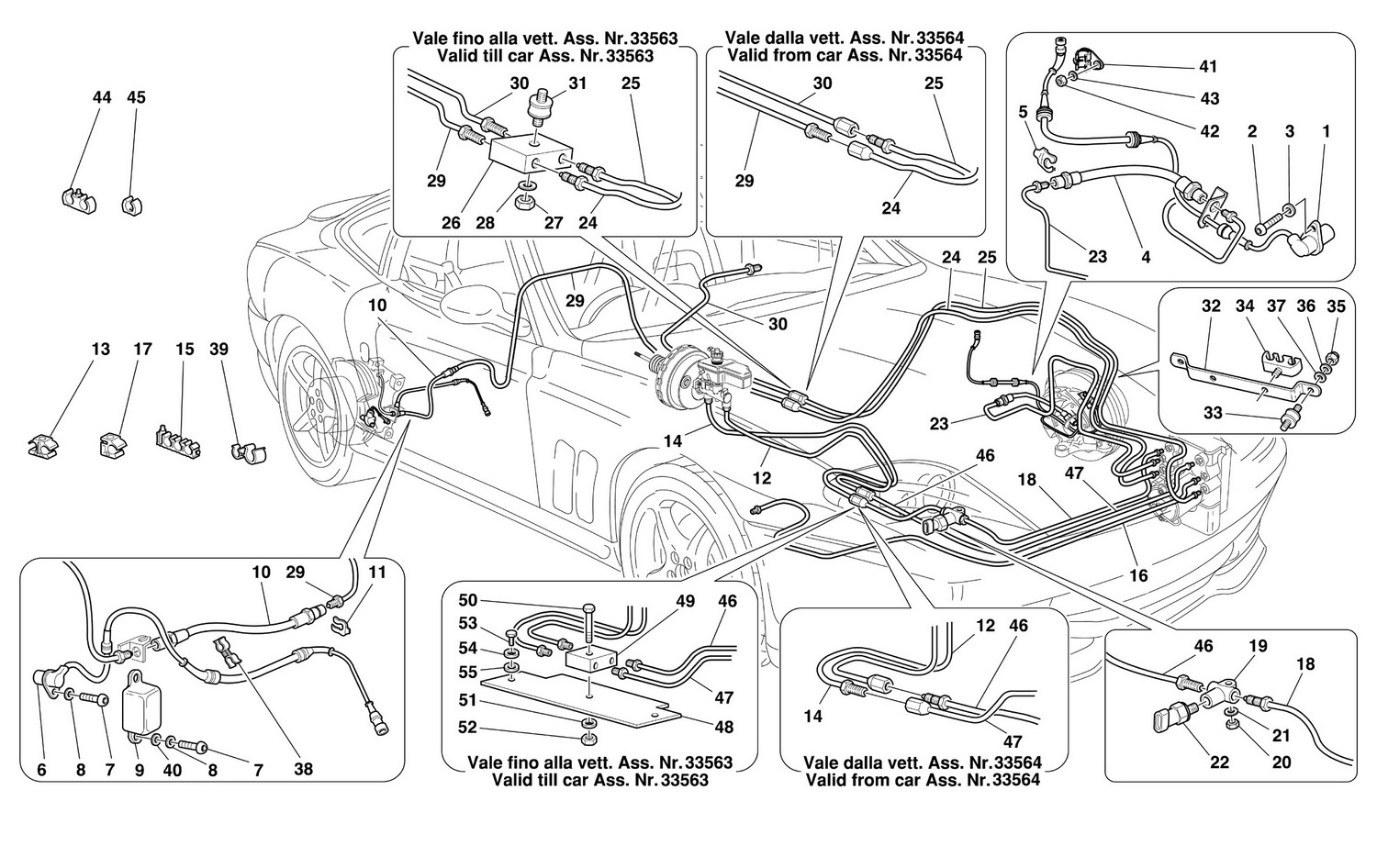

Schematic: Brake System -Valid For Rhd
Schematic: Brake System -Valid For Rhd
Loc
Part
Cond       Price
1
FRONT TOOTHED WHEEL SENSOR
163145 (2) Full qty
2
Screw 6x15
60909500 (2) Full qty
3
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
4
Brake Hose 360mm
137313 (2) Full qty
4
Brake Hose Front 550/575
137313 (2) Full qty
5
Front Brake Calipar - Clamp
116374 (2) Full qty
6
REAR TOOTHED WHEEL SENSOR
163146 (2) Full qty
7
Screw 6x15
60909500 (2) Full qty
8
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
9
REAR SENSOR PROTECTION
168148 (2) Full qty
10
Brake Hose
977802 (2) Full qty
11
Front Brake Calipar - Clamp
116374 (2) Full qty
12
FRONT BRAKE PIPE FROM PUMP TO …
178970 (1) Full qty
12
FRONT BRAKE PIPE FROM PUMP TO …
169910 (1) Full qty
13
CLIP
143055 (3) Full qty
14
REAR BRAKE PIPE FROM PUMP TO …
169908 (1) Full qty
15
CLIP
127515 (2) Full qty
16
BRAKE PIPE FROM ABS CENTER UNI…
164068 (1) Full qty
17
Spring Clip Ferrari 355
New       £ 3.25
141505 (3) Full qty
BW99294n
18
BRAKE PIPE FROM REGULATOR TO…
169909 (1) Full qty
19
3 way union
101394 (1) Full qty
20
Nut
102741 (1) Full qty
21
WASHER
12639724 (1) Full qty
22
PRESS SWITCH
154309 (1) Full qty
23
BRAKE PIPE FROM ABS CENTER UNI…
164067 (1) Full qty
24
BRAKE PIPE FROM ABS CENTER UNI…
171913 (1) Full qty
24
BRAKE PIPE FROM ABS CENTER UNI…
178981 (1) Full qty
25
BRAKE PIPE FROM ABS CENTER UNI…
171914 (1) Full qty
25
BRAKE PIPE FROM ABS CENTER UNI…
178982 (1) Full qty
26
UNION
169152 (1) Full qty
27
Nut to fixing front and rear s…
15896470 (1) Full qty
28
Washer
127493 (1) Full qty
29
BRAKE PIPE FROM UNION TO R.H. …
173461 (1) Full qty
29
BRAKE PIPE FROM JOINT TO R.H. …
178983 (1) Full qty
30
BRAKE PIPE FROM JOINT TO L.H. …
178984 (1) Full qty
30
BRAKE PIPE FROM UNION TO L.H. …
173462 (1) Full qty
31
Rubber Mount
New       £ 6.61
148835 (1) Full qty
GE00716n
32
BRACKET
165361 (1) Full qty
33
Rubber Mount
New       £ 6.61
148835 (1) Full qty
GE00716n
34
CLIP
127515 (2) Full qty
35
Nut to fixing front and rear s…
15896470 (1) Full qty
36
Washer
127493 (1) Full qty
37
WASHER
12637824 (4) Full qty
38
Clip
124551 (5) Full qty
39
CLIP
150738 (6) Full qty
40
WASHER
14496424 (4) Full qty
41
Clip
128292 (4) Full qty
42
NUT
62790300 (4) Full qty
43
WASHER
10519224 (4) Full qty
44
CLIP
169476 (5) Full qty
45
CLIP
169477 (5) Full qty
46
BRAKE PIPE FROM JOINT TO REGUL…
178971 (1) Full qty
46
BRAKE PIPE FROM UNION TO REGUL…
171915 (1) Full qty
47
BRAKE PIPE FROM JOINT TO ABS C…
178972 (1) Full qty
47
BRAKE PIPE FROM REGULATOR TO A…
171916 (1) Full qty
48
BRACKET
159111 (1) Full qty
49
UNION
157719 (1) Full qty
50
SCREW
10903024 (1) Full qty
51
WASHER
12639724 (1) Full qty
52
Nut
102741 (1) Full qty
53
SCREW -M6 X 14-
10902124 (2) Full qty
54
Washer
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
55
WASHER
12643778 (2) Full qty
