Fuel Tank -Valid For Usa And Cdn M.Y. 99 & 2000-

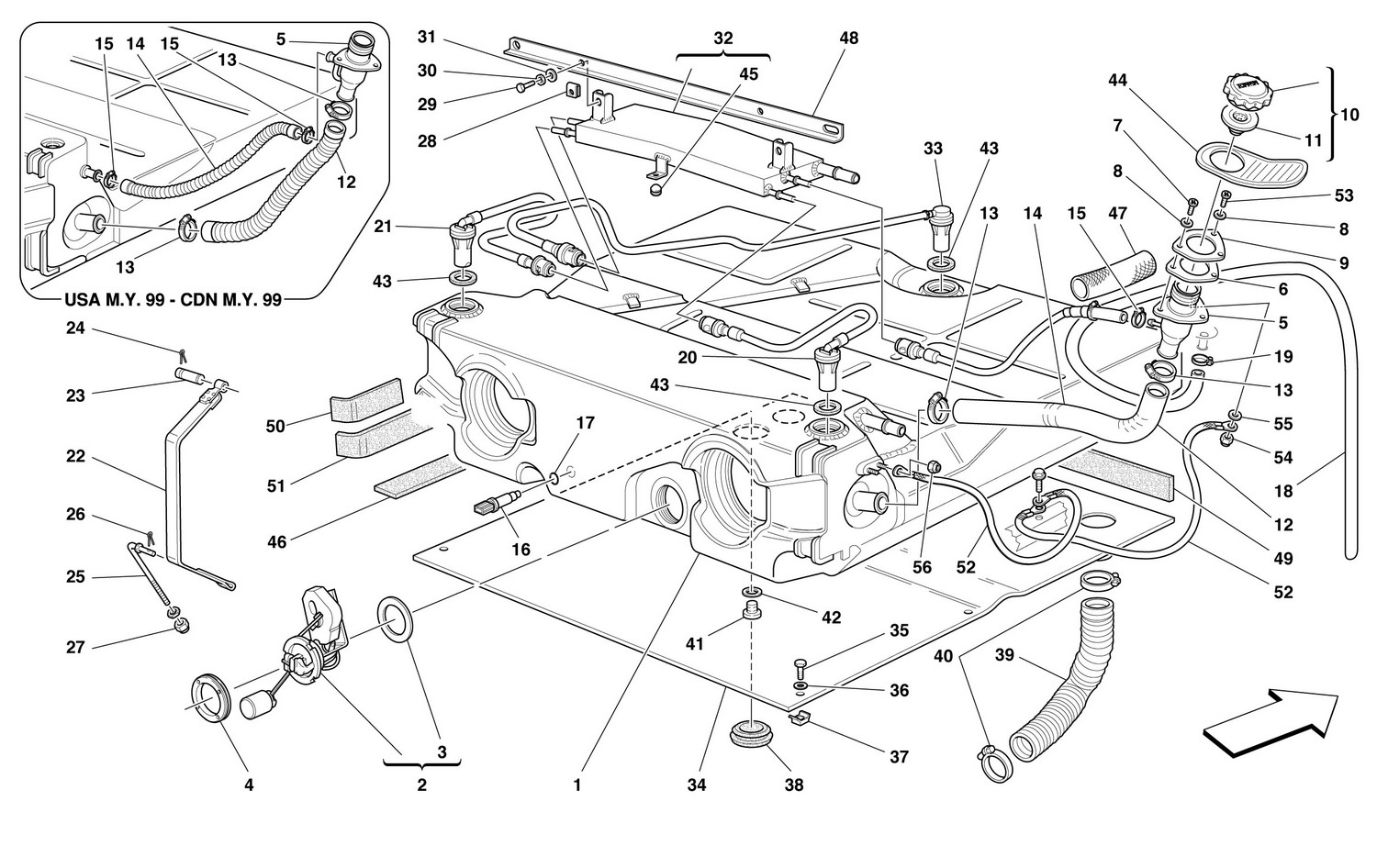

Schematic: Fuel Tank -Valid For Usa And Cdn M.Y. 99 & 2000-
Schematic: Fuel Tank -Valid For Usa And Cdn M.Y. 99 & 2000-
Loc
Part
Cond       Price
1
FUEL TANK
181926 (1) Full qty
1
FUEL TANK
179178 (1) Full qty
1
FUEL TANK
186103 (1) Full qty
2
Fuel Tank Sender 550 - Older Version (Valid For US)
Used       Price on Enquiry
168238 (1) Full qty
FT10110u
3
Fuel Tank Sender Gasket 288 GTO
New       £ 18.68
154802 (1) Full qty
FT10103n
4
Roll Over Valve/ Vent Pipe Com…
169937 (1) Full qty
5
FILLER
181932 (1) Full qty
5
FILLER
171278 (1) Full qty
6
GASKET
174095 (1) Full qty
7
SCREW
13276470 (3) Full qty
8
Washer
New       Price on Enquiry
12601274 (3) Full qty
CC11576n
9
FLANGE
174093 (1) Full qty
10
Fuel Cap 550
180321 (1) Full qty
11
GASKET
180119 (1) Full qty
12
FILLER-TANK CONNECTING PIPE
167131 (1) Full qty
12
FILLER-TANK CONNECTING PIPE
181977 (1) Full qty
13
COLLAR FOR SLEEVE
170127 (2) Full qty
14
VENT PIPE FROM TANK TO FILLER
165132 (1) Full qty
14
PIPE FOR VAPOR RECYCLING
182265 (1) Full qty
15
ELASTIC COLLAR
164015 (2) Full qty
15
COLLAR -D. 15.7-
13432070 (1) Full qty
16
Coolant Temp Sensor 0280130026
New       Price on Enquiry
125769 (1) Full qty
CS11578n
17
GASKET
179321 (1) Full qty
18
RUBBER HOSE
179851 (1) Full qty
19
COLLAR
161490 (1) Full qty
20
R.H. VALVE COMPLETED WITH PIPI…
179191 (1) Full qty
20
RH Fuel Valve & Pipe 550/575
181936 (1) Full qty
21
R.H. VALVE COMPLETED WITH PIPI…
179191 (1) Full qty
21
LH Fuel Valve & Pipe 550/575
181935 (1) Full qty
22
FUEL TANK FASTENER
181692 (2) Full qty
22
FUEL TANK FASTENER
172340 (2) Full qty
23
Pin
103447 (2) Full qty
24
Split pin
10796440 (4) Full qty
25
Tie rod
127529 (2) Full qty
26
Split pin
10796440 (4) Full qty
27
NUT
104030 (2) Full qty
28
CLIP
62766300 (2) Full qty
29
SCREW -M6 X 14-
10902124 (2) Full qty
29
SCREW
10902224 (2) Full qty
30
WASHER
12639724 (2) Full qty
30
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
31
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
31
Washer 1.6mm 6.4x11.95x1.6
10519424 (2) Full qty
32
DISAREATOR
178866 (1) Full qty
32
DISAREATOR
181931 (1) Full qty
33
VALVE COMPLETED WITH PIPING
180469 (1) Full qty
33
Fuel Tank Pick Up Plate
169937 (1) Full qty
34
UNDER TANK SHIELD
65083800 (1) Full qty
35
SCREW -M6 X 20- -Fastening bra…
10902424 (4) Full qty
36
WASHER
12643724 (4) Full qty
37
Caget nut
60758600 (4) Full qty
38
CAP
64783600 (1) Full qty
39
AIR DELIVERY TUBE TO TANK
65084500 (2) Full qty
40
40-60cm Hose Clip
New       £ 3.29
13000790 (4) Full qty
CS12027n
41
FUEL DRAIN PLUG
148045 (1) Full qty
42
GASKET
123622 (1) Full qty
43
Rollover Valve Gasket 360
New       Price on Enquiry
195049 (3) Full qty
FU15699n
44
Fuel Bib 308
62943200 (1) Full qty
45
CAP
14622387 (1) Full qty
46
LOWER THICKNESS
156682 (2) Full qty
47
PROTECTION SHEATH
171163 (1) Full qty
48
BRACKET
183850 (1) Full qty
49
FRONT THICKNESS
167025 (1) Full qty
50
RUBBER THICKNESS
183685 (2) Full qty
51
RUBBER THICKNESS
183387 (2) Full qty
51
REAR THICKNESS
157411 (2) Full qty
