Clutch - Controls

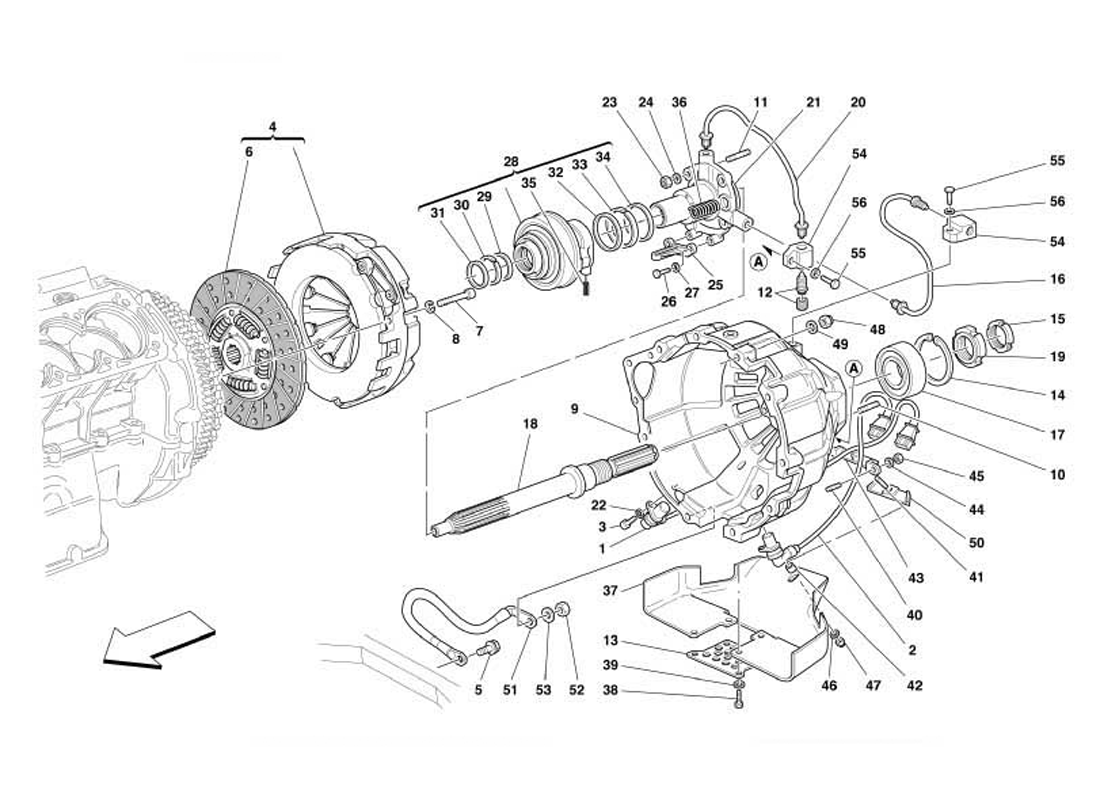

Schematic: Clutch - Controls
Loc
Part
Cond       Price
1
New       Price on Enquiry
164082 (1) Full qty
CL11962n
2
New       Price on Enquiry
164083 (1) Full qty
CL11964n
3
SCREW -No longer supplied- -Re…
14305124 (2) Full qty
4
New       £ 2081.39
194775 (1) Full qty
CL11986n
5
Screw
16296421 (1) Full qty
6
CLUTCH PLATE
194776 (1) Full qty
7
Clutch Bolt 550/575
14305934 (9) Full qty
8
Clutch Bolt Wavy Washer 550/57…
127494 (9) Full qty
9
COMPLETE CLUTCH HOUSING
151601 (1) Full qty
9
CLUTCH HOUSING
168915 (1) Full qty
10
STUD BOLT
13546334 (8) Full qty
11
STUD BOLT
13543124 (4) Full qty
12
Bleeder screw
121699 (1) Full qty
13
CLUTCH HOUSING COVER
144441 (1) Full qty
14
STOP RING
144511 (1) Full qty
15
RING NUT
165576 (1) Full qty
16
OIL DELIVERY TUBE
165759 (1) Full qty
17
BEARING
174470 (1) Full qty
18
CLUTCH SHAFT
165573 (1) Full qty
19
RING NUT
165575 (1) Full qty
20
VENT PIPE
165733 (1) Full qty
21
Beaing Support Flange 550, 575…
169137 (1) Full qty
22
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
23
Nut
133989 (4) Full qty
24
Wavy Lock Washer 8mm
127496 (4) Full qty
25
Flange Plate
151693 (1) Full qty
26
SCREW
10977524 (2) Full qty
27
Washer
127493 (2) Full qty
28
COMPLETE THRUST BEARING
177202 (1) Full qty
29
New       Price on Enquiry
154505 (1) Full qty
CL12048n
30
New       Price on Enquiry
154504 (1) Full qty
CL12046n
31
New       Price on Enquiry
154550 (1) Full qty
CL12044n
32
New       Price on Enquiry
154508 (1) Full qty
CL11560n
33
New       Price on Enquiry
154507 (1) Full qty
CL11558n
34
New       Price on Enquiry
154551 (1) Full qty
CL11562n
35
SPRING PIN
13904970 (1) Full qty
36
Clutch Housing Spring
155207 (2) Full qty
37
SHIELD FOR FASE SENSOR PROTECT…
170115 (1) Full qty
38
Screw
10977624 (4) Full qty
39
New       Price on Enquiry
12601174 (4) Full qty
ST00358n
40
STUD BOLT
13540824 (2) Full qty
41
STUD BOLT
155177 (1) Full qty
42
SPACER
155175 (1) Full qty
43
SUPPORT
154464 (1) Full qty
44
WASHER
12639724 (2) Full qty
45
Nut
102741 (2) Full qty
46
WASHER
11199274 (1) Full qty
47
Nut to fixing front and rear s…
15896470 (1) Full qty
48
NUT
16100814 (5) Full qty
49
Do Not Use - See GE07667n
12601374 (5) Full qty
49
New       £ 0.12
12601374 (5) Full qty
CH11905n
50
SUPPORT
146654 (1) Full qty
51
GROUND CABLE
155918 (1) Full qty
52
Nut to fixing front and rear s…
15896470 (1) Full qty
53
WASHER
11199274 (1) Full qty
54
Rear union
139471 (2) Full qty
55
SCREW
10902624 (2) Full qty
56
WASHER
11181874 (2) Full qty
