Fuel Tank -Not For Usa And Cdn-

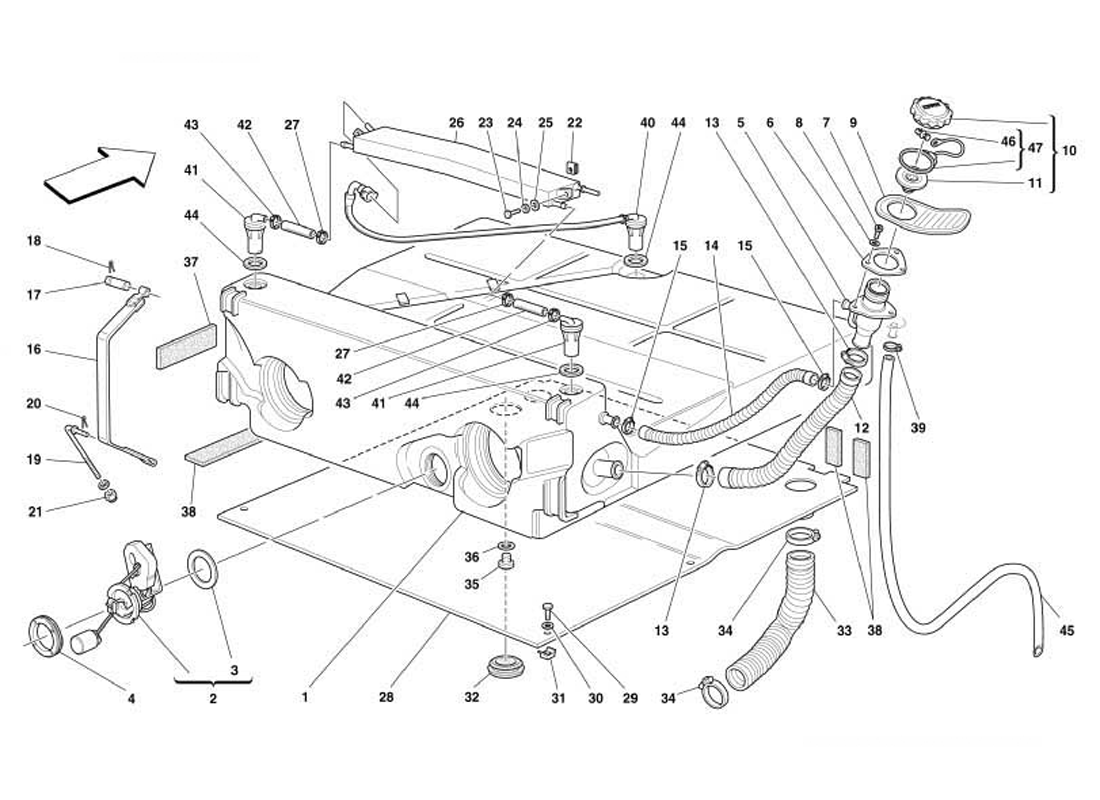

Schematic: Fuel Tank -Not For Usa And Cdn-
Loc
Part
Cond       Price
1
FUEL TANK
165129 (1) Full qty
2
Used       Price on Enquiry
168238 (1) Full qty
FT10110u
3
New       £ 18.68
154802 (1) Full qty
FT10103n
4
Roll Over Valve/ Vent Pipe Com…
169937 (1) Full qty
5
FILLER
171278 (1) Full qty
5
FILLER
173482 (1) Full qty
6
GASKET
174095 (1) Full qty
7
Screw
62926700 (3) Full qty
8
New       Price on Enquiry
12601274 (3) Full qty
CC11576n
9
Fuel Bib 308
62943200 (1) Full qty
10
PLUG
226444 (1) Full qty
10
PLUG
226448 (1) Full qty
11
GASKET
223707 (1) Full qty
12
FILLER-TANK CONNECTING PIPE
167131 (1) Full qty
13
COLLAR FOR SLEEVE
170127 (2) Full qty
14
VENT PIPE FROM TANK TO FILLER
165132 (1) Full qty
15
ELASTIC COLLAR
164015 (2) Full qty
16
FUEL TANK FASTENER
172340 (2) Full qty
17
Pin
103447 (2) Full qty
18
Split pin
10796440 (4) Full qty
19
Tie rod
127529 (2) Full qty
20
Split pin
10796440 (2) Full qty
21
NUT
104030 (2) Full qty
22
CLIP
62766300 (2) Full qty
23
SCREW
10902224 (2) Full qty
24
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
25
Washer 1.6mm 6.4x11.95x1.6
10519424 (2) Full qty
26
DISAREATOR
178866 (1) Full qty
27
COLLAR -D. 16.2-
13434670 (2) Full qty
28
UNDER TANK SHIELD
65083800 (1) Full qty
29
SCREW -M6 X 20- -Fastening bra…
10902424 (4) Full qty
30
WASHER
12643724 (4) Full qty
31
Caged nut
60659100 (4) Full qty
32
CAP
64783600 (1) Full qty
33
AIR DELIVERY TUBE TO TANK
65084500 (2) Full qty
34
SCREW COLLAR
12173190 (4) Full qty
34
SCREW COLLAR
12173190 (4) Full qty
35
FUEL DRAIN PLUG
148045 (1) Full qty
36
GASKET
123622 (1) Full qty
37
REAR THICKNESS
157411 (1) Full qty
38
RUBBER THICKNESS
156679 (4) Full qty
38
RUBBER THICKNESS
156679 (4) Full qty
39
ELASTIC COLLAR
13423671 (1) Full qty
40
Fuel Tank Pick Up Plate
169937 (1) Full qty
41
VALVE
169839 (2) Full qty
42
RUBBER HOSE
116762 (2) Full qty
43
COLLAR -D. 16.2-
13434670 (2) Full qty
44
New       Price on Enquiry
195049 (3) Full qty
FU15699n
45
RUBBER HOSE
179851 (1) Full qty
46
RETAINER FOR STRING
186172 (1) Full qty
47
COMPLETE RING
186866 (1) Full qty
