Air Injection - Ignition

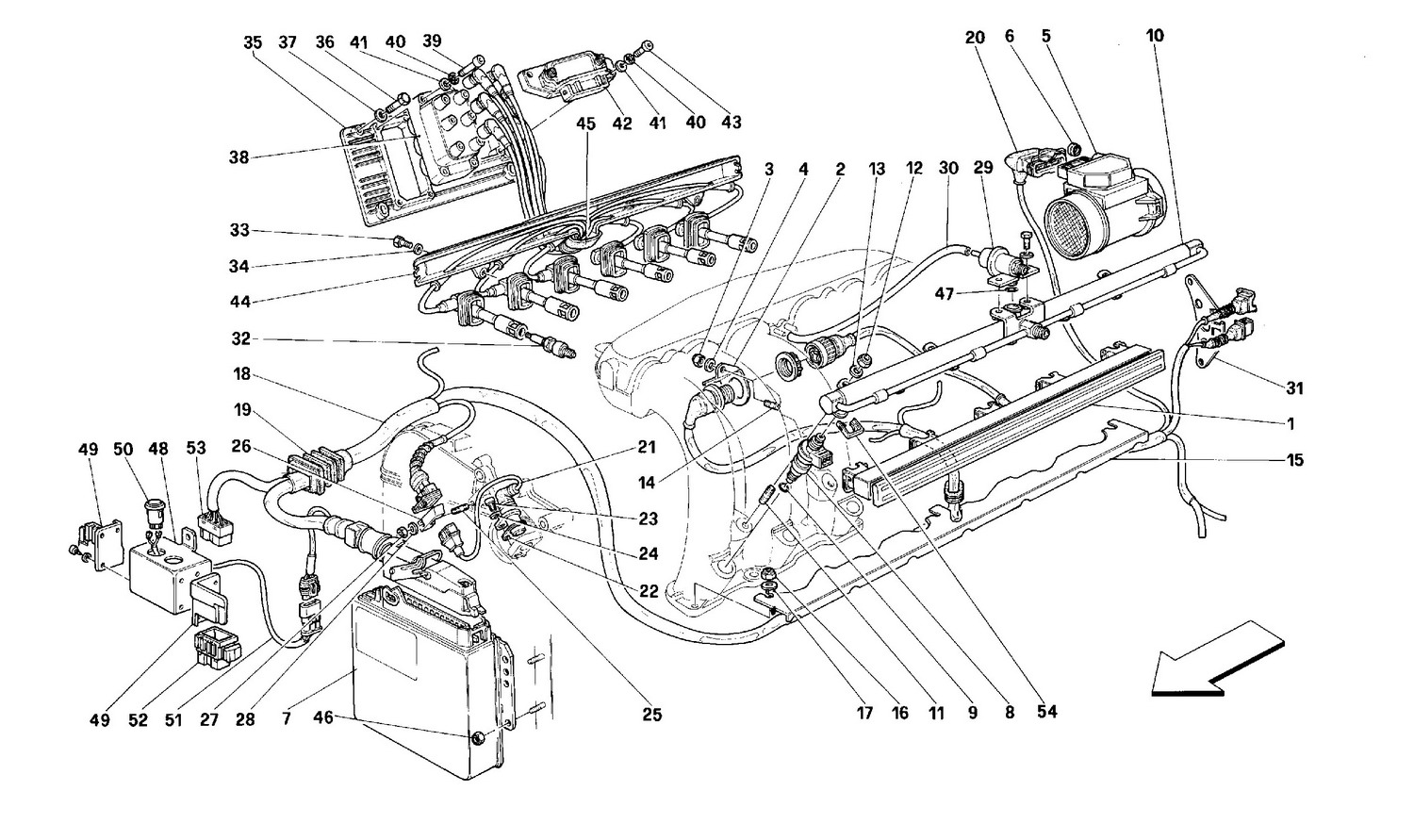

Schematic: Air Injection - Ignition
Loc
Part
Cond       Price
1
Connectors and cables box
147567 (2) Full qty
2
L.H. bracket
145476 (2) Full qty
3
Nut
102741 (2) Full qty
4
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
5
AIR FLOW METER
154916 (2) Full qty
5
New       £ 548.90
154916 (2) Full qty
FU15895n
6
Plug
144092 (2) Full qty
7
Ignition/supply control system…
149338 (2) Full qty
8
Injector
144256 (12) Full qty
9
Gasket
133902 (24) Full qty
10
Delivery pipe
149924 (2) Full qty
11
STUD
11500024 (8) Full qty
12
Cam/Chain Cover Nuts
101239 (8) Full qty
12
Cam/Chain Cover Nuts
101239 (8) Full qty
12
New       £ 7.21
101239 (8) Full qty
CH11808n
13
Washer
12639701 (8) Full qty
14
Stud
11499921 (2) Full qty
15
Protection
148533 (2) Full qty
16
Nut
16100821 (6) Full qty
17
WASHER
11194079 (6) Full qty
18
Injection system cables (cyl. …
147202 (1) Full qty
18
Injection system cables (cyl.7…
147203 (1) Full qty
18
Injection system cables (cyl.7…
150907 (1) Full qty
18
Injection system cables (cyl. …
150906 (1) Full qty
19
Bellows
139465 (2) Full qty
20
Cap
149023 (2) Full qty
21
Angular speed sensor
130975 (2) Full qty
22
New       Price on Enquiry
140621 (2) Full qty
EL99446n
23
Screw
14305021 (2) Full qty
25
STUD
11001224 (2) Full qty
26
Support
144805 (2) Full qty
27
Nut to fixing front and rear s…
15896470 (2) Full qty
28
Washer
11199279 (2) Full qty
29
PRESSURE REGULATOR
167321 (2) Full qty
29
New       £ 465.27
167321 (2) Full qty
FU15900n
30
Hose
115042 (2) Full qty
31
Bracket
148861 (2) Full qty
32
New       £ 10.95
150180 (12) Full qty
EL11462n
32
New       £ 13.78
150180 (12) Full qty
EL11604n
33
Screw
10902111 (4) Full qty
34
Washer
11193279 (4) Full qty
35
Coil and module support
148421 (2) Full qty
36
Screw
10903724 (8) Full qty
38
New       Price on Enquiry
138224 (2) Full qty
EL99578n
39
Screw
13274972 (8) Full qty
40
Washer
149951 (12) Full qty
41
Washer
10519377 (12) Full qty
42
POWER MODULE
201401 (2) Full qty
43
Screw
13274672 (4) Full qty
44
High tension complete cables …
188916 (1) Full qty
44
High tension complete cables …
188963 (1) Full qty
45
Cap
150753 (2) Full qty
46
Nut
14059111 (8) Full qty
47
SEAL RING
152211 (2) Full qty
48
Connectors fix. box
149320 (1) Full qty
49
BRACKET FOR CABLES FIXING
148682 (2) Full qty
50
Tester push
145810 (2) Full qty
51
TESTER PUSH CABLE
146196 (2) Full qty
52
PM connector (black)
146042 (2) Full qty
53
PF connector (black)
146043 (2) Full qty
54
FIXING CLIP
144730 (6) Full qty
