Crankshaft, Connecting Rods And Pistons

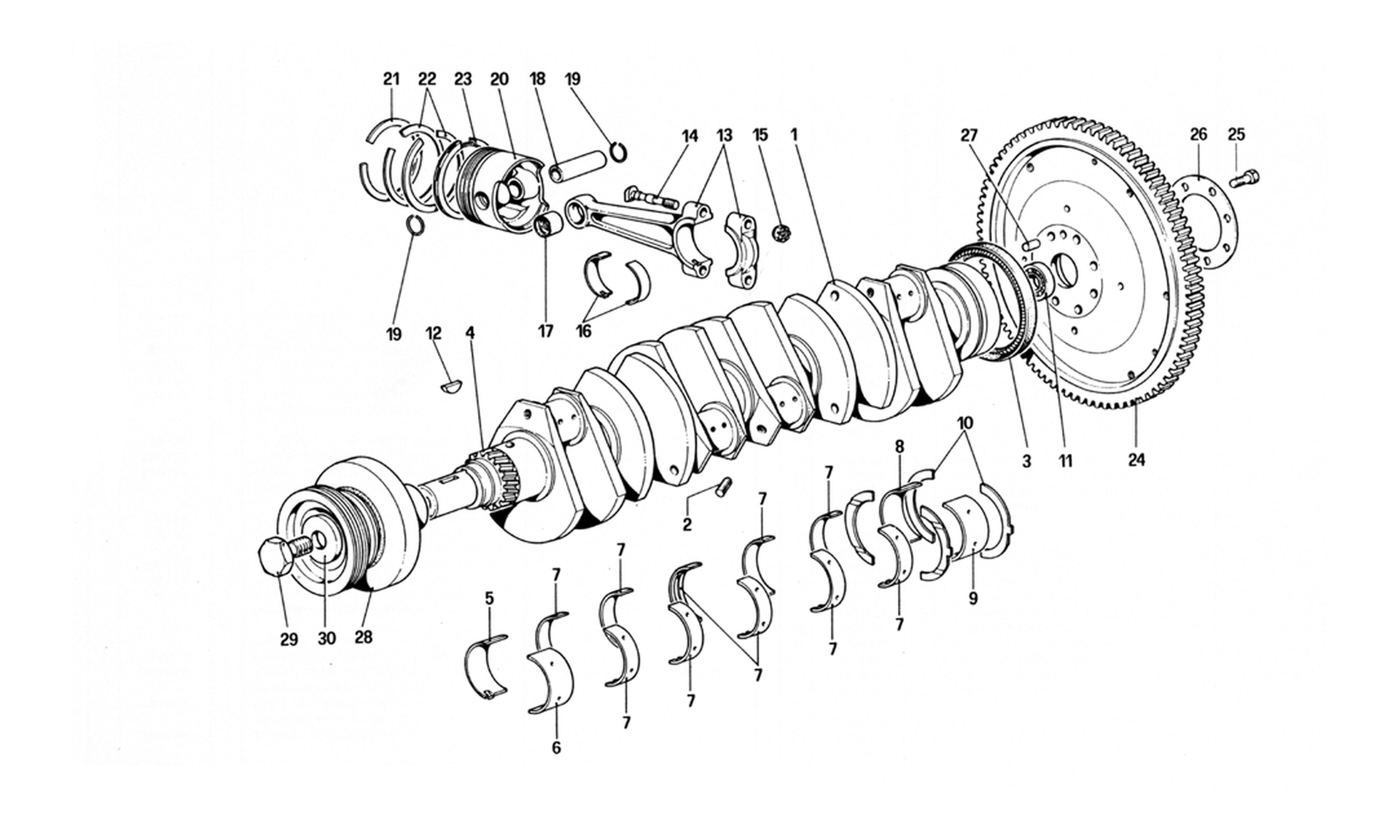

Schematic: Crankshaft, Connecting Rods And Pistons
Schematic: Crankshaft, Connecting Rods And Pistons
Loc
Part
Cond       Price
1
Crankshaft 512 Boxer (BB)
New       Price on Enquiry
106979 (1) Full qty
CC11711n
1
Crankshaft 512 Boxer
Used       £ 10395.00
106979 (1) Full qty
CC11711u
2
Plug
14326150 (12) Full qty
2
Half bearing set
108604 (1) Full qty
2
Half bearing set
108605 (1) Full qty
2
Main Bearing Set Standard Size (512 BB)
New       Price on Enquiry
108603 (1) Full qty
CC11787n
3
Anello di tenuta olio sull'alb…
104864 (1) Full qty
4
Pignone suH'albero comando dis…
117654 (1) Full qty
5
Main Shell 1/2
100118 (1) Full qty
5
1st undersize 0.254 mm. on ?
100119 (1) Full qty
5
2nd undersize 0.508 mm. on ?
100120 (1) Full qty
6
Left front halt bearing
100122 (1) Full qty
6
1st undersize 0.254 mm. on ?
100123 (1) Full qty
6
2nd undersize 0.508 mm. on ?
100124 (1) Full qty
7
Right and left interm. half be…
100134 (10) Full qty
7
1st undersize 0.254 mm. on ?
100135 (10) Full qty
7
2nd undersize 0.508f mm. on ?
100136 (10) Full qty
8
Right rear half bearing
100138 (1) Full qty
8
1st undersize 0.254 mm. on ?
100139 (1) Full qty
8
2nd undersize 0.508 mm. on ?
100140 (1) Full qty
9
Left rear half bearing
100142 (1) Full qty
9
1st undersize 0.254 mm. on ?
100143 (1) Full qty
9
2nd undersize 0.508 mm on ?
100144 (1) Full qty
10
1st oversize 0,127 mm.
113984 (2) Full qty
10
Crank Thrust Washers STD - 2 Part Set
New       £ 39.33
100146 (2) Full qty
CC11448n
10
Thrust Washer Set 250 2nd Oversize
New       £ 29.65
100147 (2) Full qty
CC11473n
10
Do Not Use - See CC11448n
(2) Full qty
10
Crank Thrust Washer Pair 250,275 2nd Oversize 0.25mm
New       £ 30.20
100147 (2) Full qty
CC11616n
11
Crankshaft Rear Spigot Bearing 246 Dino
New       £ 20.15
103877 (1) Full qty
CL11532n
12
Key
10206020 (2) Full qty
13
Connecting rod, and cap
109688 (12) Full qty
13
Con Rod 512 BBLM/Daytona
New       Price on Enquiry
109738 (12) Full qty
RP10012n
13
Con Rod 512 BBLM/Daytona
Used       £ 266.20
109738 (12) Full qty
RP10012u
14
Con Rod Bolt
New       Price on Enquiry
100156 (24) Full qty
RP11452n
15
Big End Nut 250
New       £ 9.08
104011 (24) Full qty
RP11424n
15
Do Not Use - See RP11450n
104011 (24) Full qty
15
Con Rod Nut
New       £ 9.13
104011 (24) Full qty
RP11450n
16
Con Rod Shell 250/275 (1) .010 Aftermarket
New       Price on Enquiry
100151 (1) Full qty
RP11456n
16
Con Rod Set .020 (330)
New       Price on Enquiry
100152 (1) Full qty
RP11498n
16
Con Rod Set V8 Std.
New       Price on Enquiry
100150 (24) Full qty
RP11502n
17
Small End Bush 250,275
New       £ 18.65
107100 (12) Full qty
RP11432n
17
Piston Pin Bush
New       Price on Enquiry
107100 (12) Full qty
RP11440n
18
Gudgeon pin
104487 (12) Full qty
19
Ring for gudgeon pin
100174 (24) Full qty
20
Pistone motore
107056 (12) Full qty
20
Piston Ring Set 512BB
New       Price on Enquiry
108618 (12) Full qty
RP11474n
21
Complete bushing for bearing
108609 (12) Full qty
22
Anello di tenuta AC conico
108612 (24) Full qty
23
Anello raschia olio con molla …
108615 (12) Full qty
24
Assieme volano e corona
118367 (1) Full qty
25
Flywheel Bolt
103875 (8) Full qty
26
Safety plate
108662 (1) Full qty
27
Crank Dowel
New       £ 16.89
100185 (1) Full qty
CC11649n
28
Smorzatore torslonale con pule…
105241 (1) Full qty
29
Screw
100476 (1) Full qty
30
Washer
102775 (1) Full qty
