Secondary Air System

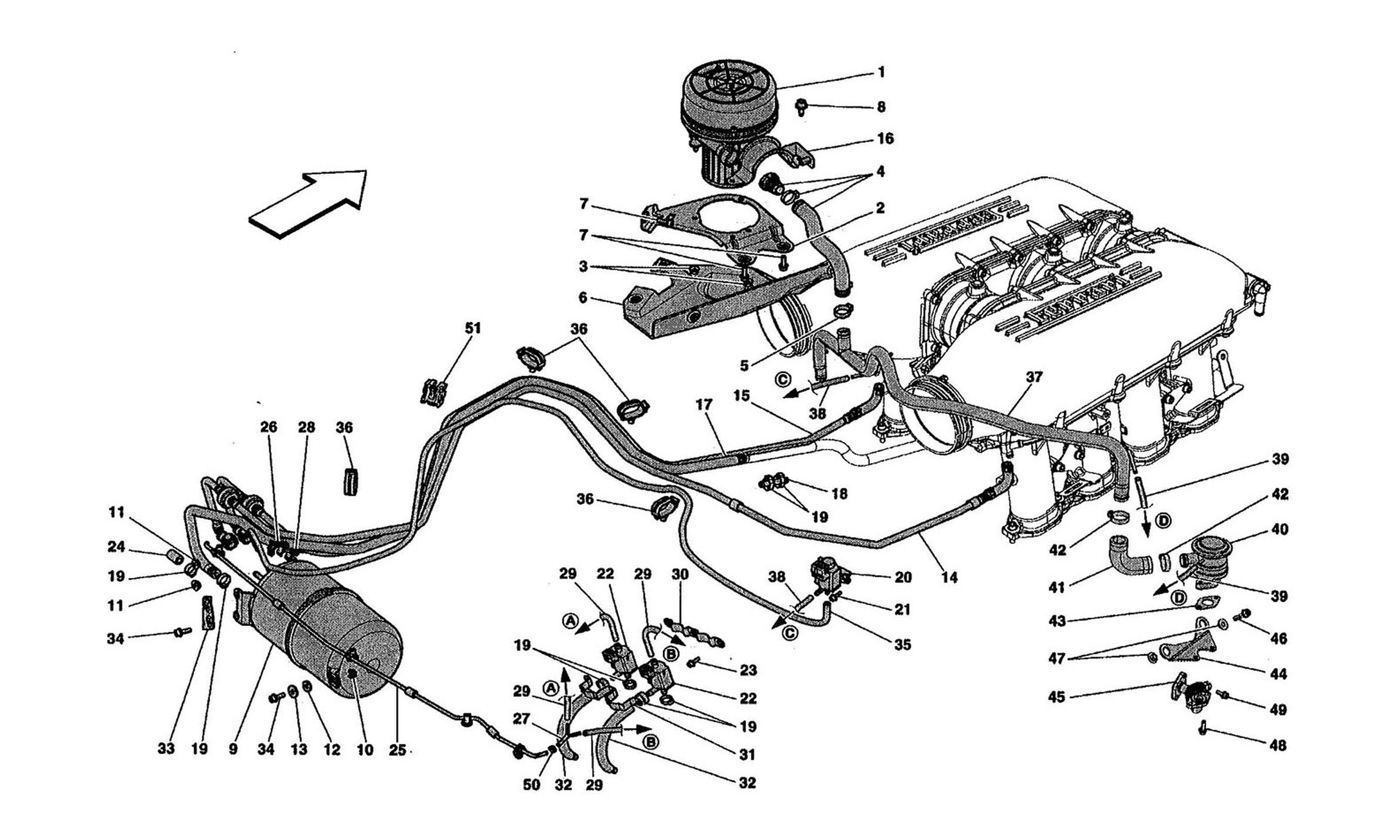

Schematic: Secondary Air System
Schematic: Secondary Air System
Loc
Part
Cond       Price
1
SECONDARY AIR SYSTEM PUMP
247795 (1) Full qty
2
BRACKET
251773 (1) Full qty
3
NUT
14040611 (3) Full qty
4
CONNECTOR PIPE
262254 (1) Full qty
5
RING CLAMP
13433370 (1) Full qty
6
LH HEAT SHIELD
258291 (1) Full qty
7
SCREW -M6 X 18-
231617 (3) Full qty
8
SCREW
11566224 (2) Full qty
9
VACUUM ACCUMULATOR TANK
195645 (1) Full qty
10
Caget nut
60758600 (1) Full qty
11
NUT
15896214 (2) Full qty
12
Washer
New       Price on Enquiry
12644424 (3) Full qty
CS12006n
13
Washer
New       Price on Enquiry
12601274 (3) Full qty
CC11576n
14
RH VACUUM PIPE TO ENGINE
260383 (1) Full qty
14
RH VACUUM PIPE TO ENGINE
263934 (1) Full qty
14
RH VACUUM PIPE TO ENGINE
278294 (1) Full qty
15
LH VACUUM PIPE TO ENGINE
260384 (1) Full qty
15
LH VACUUM PIPE TO ENGINE
263935 (1) Full qty
15
LH VACUUM PIPE TO ENGINE
278295 (1) Full qty
16
SHIELD BRACKET
251774 (1) Full qty
16
SHIELD BRACKET
265726 (1) Full qty
17
PIPE FROM TANK TO CONNECTOR
260385 (1) Full qty
18
CONNECTOR
251422 (1) Full qty
19
COLLAR
10716370 (4) Full qty
19
COLLAR -D. 16.2-
13434670 (7) Full qty
19
COLLAR -D. 15.7-
13432070 (1) Full qty
20
ON/OFF SOLENOID VALVE
184363 (1) Full qty
22
SOLENOID VALVE
178309 (2) Full qty
23
SCREW
256323 (3) Full qty
24
CAP
248008 (1) Full qty
25
ALUMINIUM PIPE
260386 (1) Full qty
26
CLIP -Applicable for GD- -Appl…
141546 (1) Full qty
27
3-WAY PIPE
260248 (1) Full qty
28
Clip Ferrari 355
New       £ 1.05
140130 (2) Full qty
BW99292n
29
BENT PIPE
260272 (2) Full qty
30
BRACKET
260244 (1) Full qty
31
BRACKET
260246 (1) Full qty
32
PIPE
260250 (2) Full qty
32
PIPE
264289 (1) Full qty
32
PIPE
264089 (1) Full qty
33
BRACKET
260387 (1) Full qty
35
RUBBER PIPE
262245 (1) Full qty
36
CLIP
149773 (2) Full qty
36
CLIP -No longer supplied- -Rep…
249397 (4) Full qty
36
CLIP
263772 (2) Full qty
36
CLIP
249393 (1) Full qty
37
SECONDARY AIR SYSTEM PIPE
258623 (1) Full qty
38
RUBBER PIPE FROM SECONDARY AIR…
258946 (1) Full qty
38
RUBBER HOSE
122126 (1) Full qty
39
Pipe on solenoid valve
141235 (2) Full qty
40
SECONDARY AIR SYSTEM VALVE
171175 (2) Full qty
41
SLEEVE
183717 (2) Full qty
42
COLLAR
13432970 (4) Full qty
43
Secondary Air Pipe Gasket
New       Price on Enquiry
186781 (4) Full qty
EX10818n
44
RH VALVE FASTENER BRACKET
245816 (1) Full qty
44
LH VALVE FASTENER BRACKET
245815 (1) Full qty
45
PIPE FROM AIR VALVE TO RH MANI…
245817 (1) Full qty
45
PIPE FROM AIR VALVE TO RH MANI…
263794 (1) Full qty
45
PIPE FROM AIR VALVE TO LH MANI…
245818 (1) Full qty
45
PIPE FROM AIR VALVE TO LH MANI…
263795 (1) Full qty
46
SCREW -M6 X 25-
231620 (4) Full qty
47
FLANGED BUSHING
183898 (8) Full qty
48
SCREW -M6 X 20-
231618 (4) Full qty
49
SCREW -M6 X 14-
231616 (4) Full qty
50
COLLAR
241986 (1) Full qty
51
ANCHOR FOR CLIPS
258595 (1) Full qty
52
CLIP
249556 (4) Full qty
